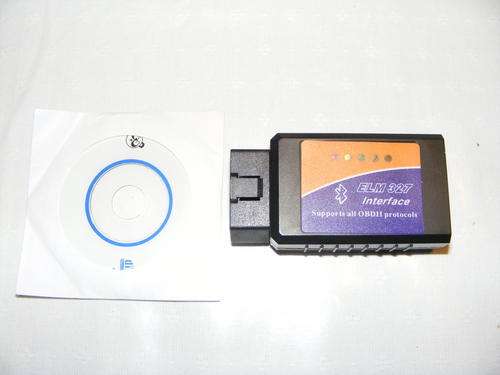

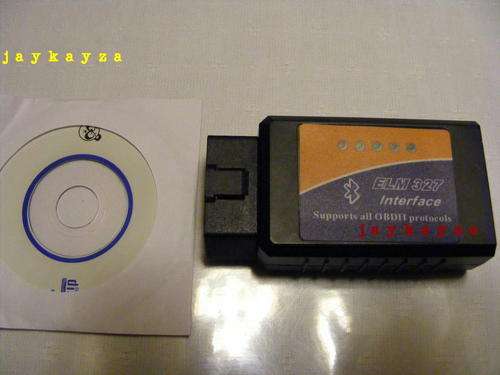

ELM 327 Bluetooth OBD2

ELM 327 Bluetooth OBD2 scanner

There are plenty of software available, which are fully compatible with bluetooth OBD interface, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc.

By using the device you can monitor all these parameters from your PC, android phone etc with a compatible software (normally Torque app or Laplogger for blackberry , most of the software is downlloadable, there are some free versions and some which require a small fee


Features:



Following are some of the parameters which could be read from the vehicle:
- Vehicle Speed
- RPM
- Fuel Consumption*
- Engine Coolant Temp
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temp
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim

*Note: Your vehicle may not support all above parameters.
How many parameters you can get is depended on the vehicle manufacturer's implementation.


Compatible With:

- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)

if you prefer the wifi version, see my other listing

collection always welcome

Best Prices + All my items are in SA stock
