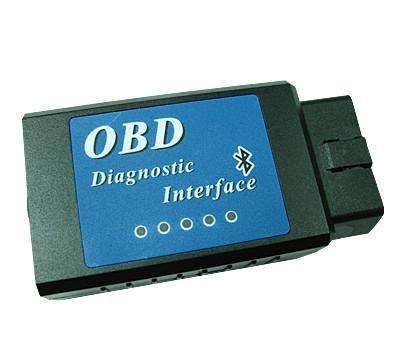

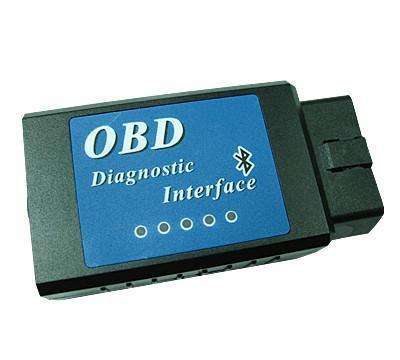

ELM-327 OBD2 Bluetooth Wireless Diagnostic Tool

ELM-327 OBD2 Bluetooth Wireless Diagnostic Tool

OBD II Compliancy BLUETOOTH PC interface.

Multi-Protocol Support:

SAE J1850 PWM (41.6 kbaud), SAE J1850 VPW (10.4 kbaud), ISO 9141-2 (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (fast init, 10.4 kbaud), ISO 15765-4 CAN (11 bit ID, 500 kbaud), ISO 15765-4 CAN (29 bit ID, 500 kbaud), ISO 15765-4 CAN (11 bit ID, 250 kbaud), ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Supported Software (Demo versions incl) :

Scantool_net113win, Easy OBDII, OBD2Spy, ScanMaster-ELM

Some compatible vehicles include:

Ford, Chevrolet, Chrysler, BMW, Cadillac, Daewoo, Dodge, Fiat, Honda, Hyundai, Isuzu, Jaguar, Jeep, Kia, Land Rover, Lexus, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Peugeot, Porsche, Renault, Saab, Seat, Smart, Suzuki, Toyota, Volkswagen, Audi, Volvo, and many others.

Supported Features Include:

Continuous and Non-Continuous Oxygen Sensor test results, Works with most OBD-II compliant vehicles,  Wireless (Bluetooth),  Supports ISO 9141, KWP2000,  Supports SAE J1850,  Supports CAN bus

Functions

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...

Package Contents:

EBOD/OBD2 Bluetooth Scanner, Software CD
