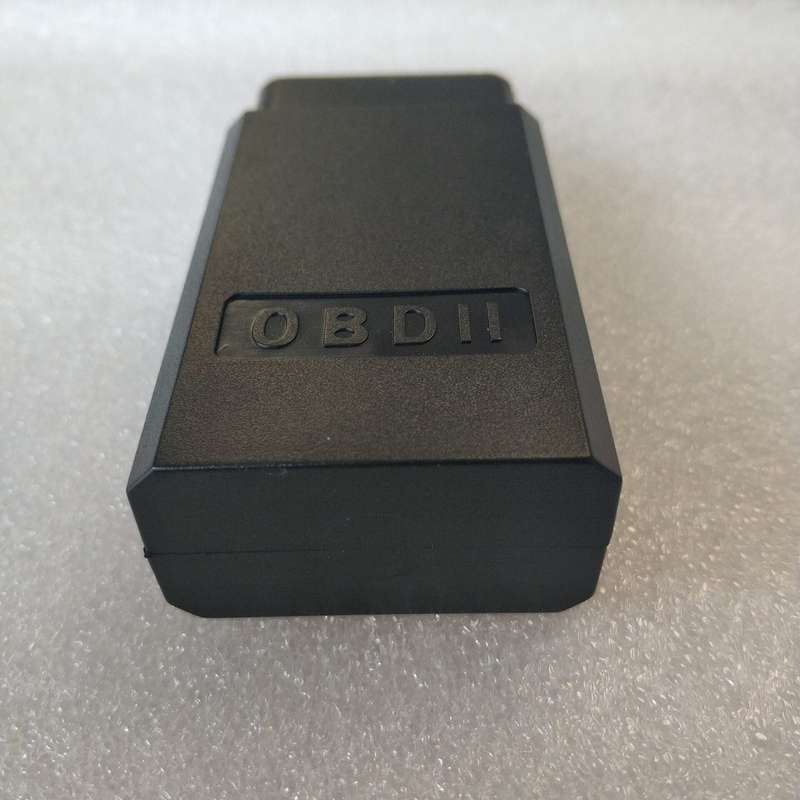

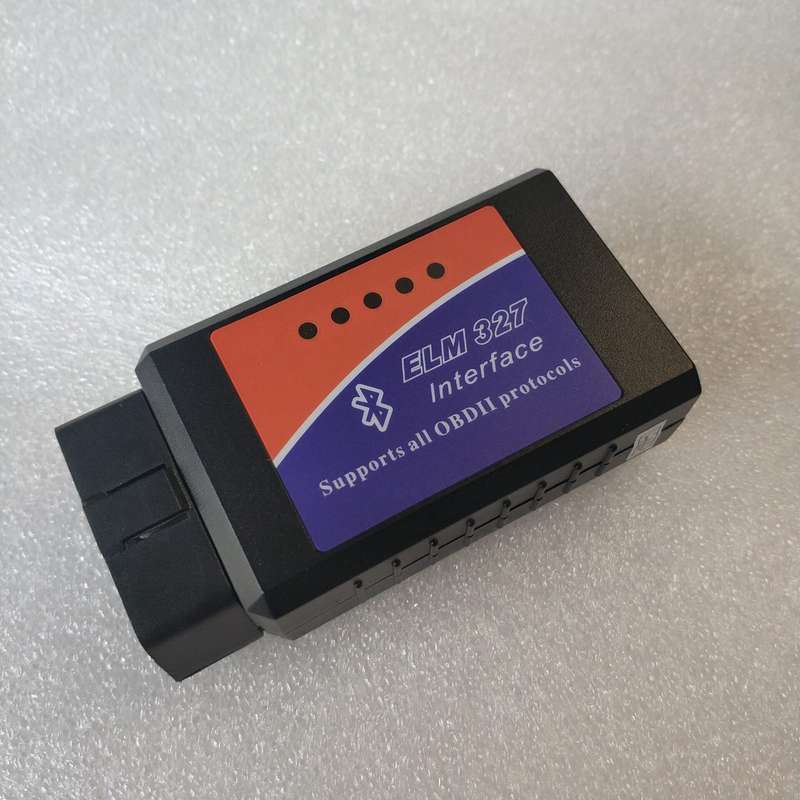

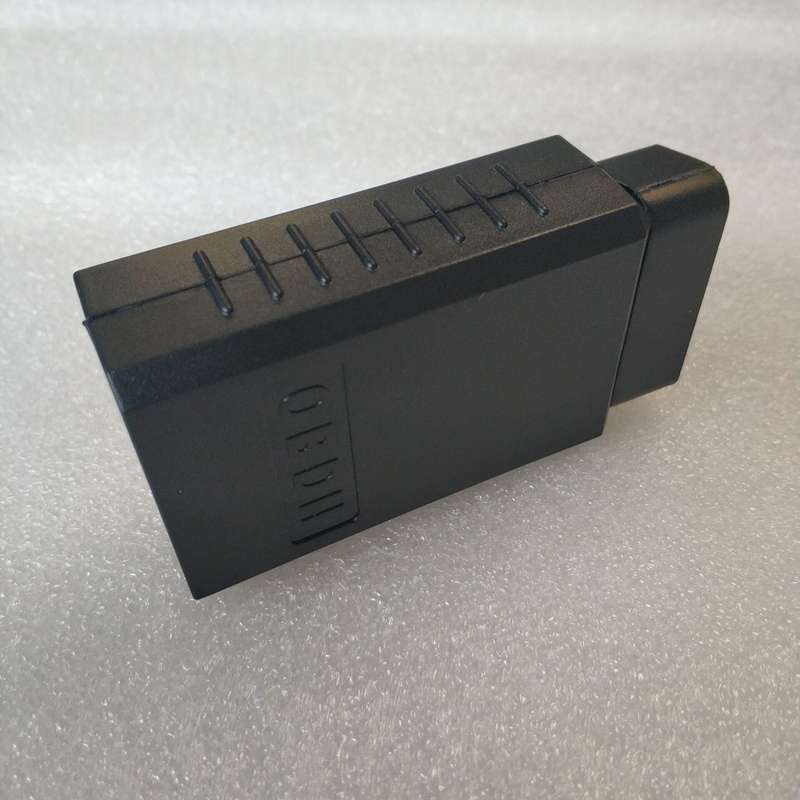

ELM327 Bluetooth OBD2 Vehicle Diagnostic Adapter

ELM327 Bluetooth OBD2 Vehicle Diagnostic Adapter for DIY Vehicle Scanning (50000270)

2. It supports almost all OBD-II protocols. 3. Bluetooth connection, no Batteries, Cables, or Switches. 4. Wireless (Bluetooth) 5~10 meter 5. Retrieve Fault Codes (DTCs) and clear Check Engine lights. 6. Can also be used with a PC with a Bluetooth Card.

Features:
* Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database).
* Clear trouble codes and turn off the MIL ("Check Engine" light)
* Set the maximum number of responses to obtain
* Remove spaces from ECU responses (to speed data transmission)
* Store a unique identifier in EEPROM
* Set the CAN mask and filter with one command
* Easily switch between variable and fixed CAN message lengths
* Send CAN remote frames (RTRs)

Display current sensor data, including: (Vehicle and ECU dependent)
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
* Many others...

Multi-Protocol Support:
1.SAE J1850 PWM(41.6Kbaud) 2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250*Kbaud) B.USER1 CAN(11*bit ID,125*Kbaud) C.USER2 CAN(11*bit ID,50*kbaud) *default settings(user adjustable)

Vehicle Coverage:

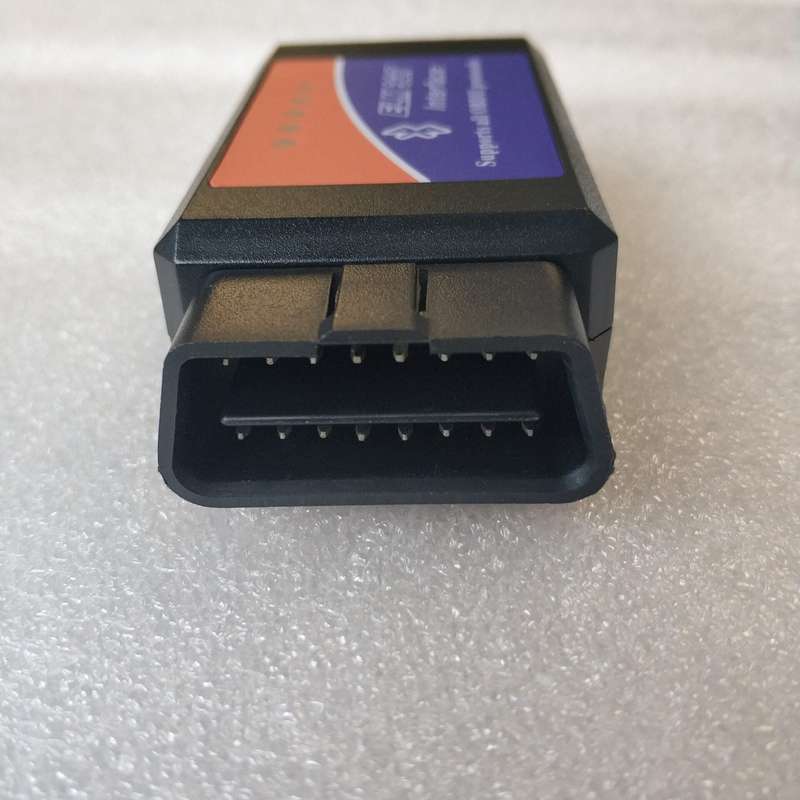

Works on most OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe) For your information: For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant. Alfa Romeo/ Audi/ Bentley/ BMW/ Cadillac/ Chevrolet/ Chrysler/ Citroen/ Daewoo/ Fiat/ Ford/ GM/ Honda/ Hyundai/ Isuzu/ Jaguar/ Jeep/ Kia/ Landover/ Lexus/ Mazda/ Mercury/ Mini/ Nissan/ Mitsubishi/ Opel/ Peu geot/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyota/ Vauxhall/ Volvo/ VW

This hardware can match many other software still! But most of them are not free!

Works for Windows98/ME/2000/XP/Vista & 7 ! This tool does not match abs and airbag system! Bluetooth paircode: 1234
