ELM327 OBD2 & OBD2 mini CAR DIAGNOSTICS

Please confirm stock before ordering as we retail as well..

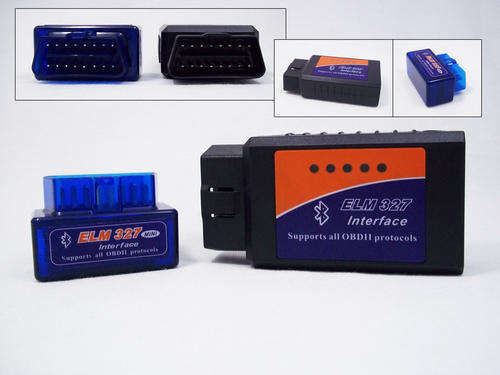

ELM327 Bluetooth OBD-II OBD2 EOBD USB Car Diagnostic Scanner Tool with CAN-BUS CD Software

Product Detail:


Bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols

- Works with all OBD-II compliant vehicles
- Wireless (Bluetooth)
- Software included for Palm, PDA
- Software included for Windows PC
- Software included for Windows Smartphone
- Supports ISO 9141, KWP2000
- Supports SAE J1850
- Supports CAN bus


Functions:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...

EOBD or OBD II?

• On-Board Diagnostics, or OBD, was the name given to the early emission control and engine-management systems introduced in cars. There is no single OBD standard - each manufacturer often using quite different systems (even between individual car models).
• OBD systems have been developed and enhanced, in line with United States government requirements, into the current OBD II standard.
• The OBD II Federal requirements apply to cars sold in the United States from 1996.
• EOBD is the European equivalent of the American OBD II standard, which applies to petrol cars sold in Europe from 2001 (and diesl cars 3 years later).
• For more information on why OBDII tools will only work with 2001 and newer petrol cars in Europe, and not with all UK and European cars from 1996 onwards, please click here.

What is EOBD2?

• EOBD2 is not a new version of EOBD
• Where EOBD stands for European On-Board Diagnostics, EOBD2 actually stands for Enhanced On-Board Diagnostics, Second Generation
• EOBD2 tends to refer to manufacturer-specific features available on some OBDII/EOBD tools to access additional parameters/information from a car, over and above the normal parameters and information available within the EOBD/OBDII standard
• EOBD2 features are normally highly manufacturer-specific, and will usually only be available for a certain car manufacturer
• There are, as such, no EOBD2 cars, cars that require an EOBD2 tool to access their diagnostics information. EOBD2 functonality might however allow more information to be extracted from an EOBD/OBDII compliant car
