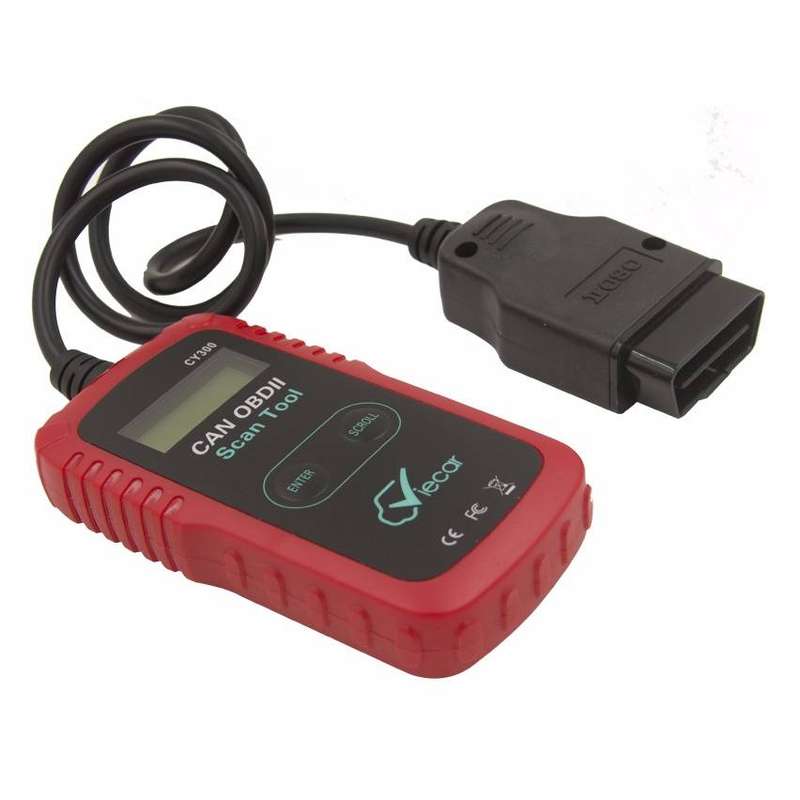

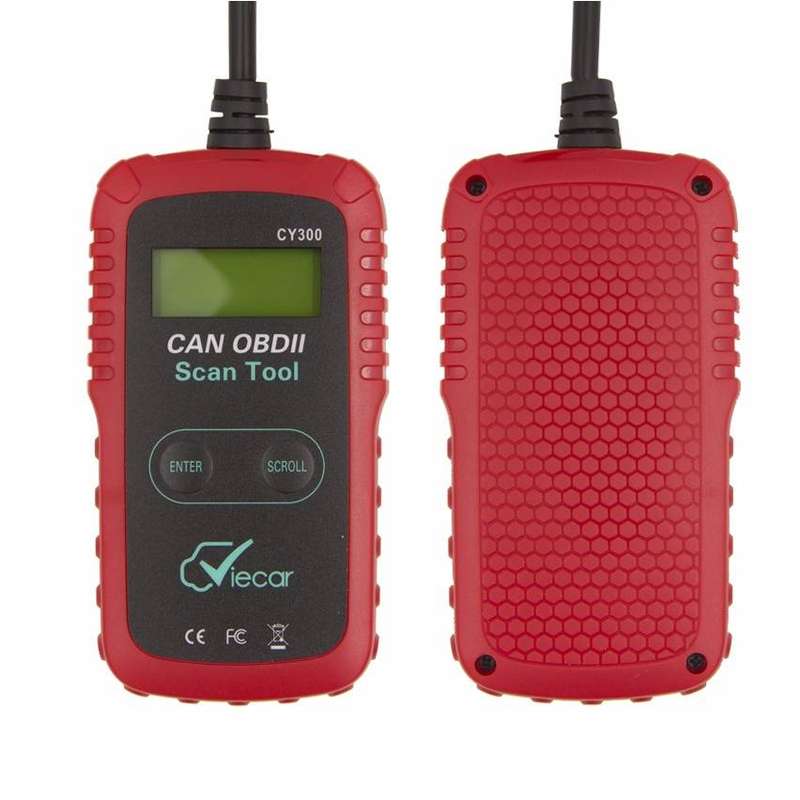

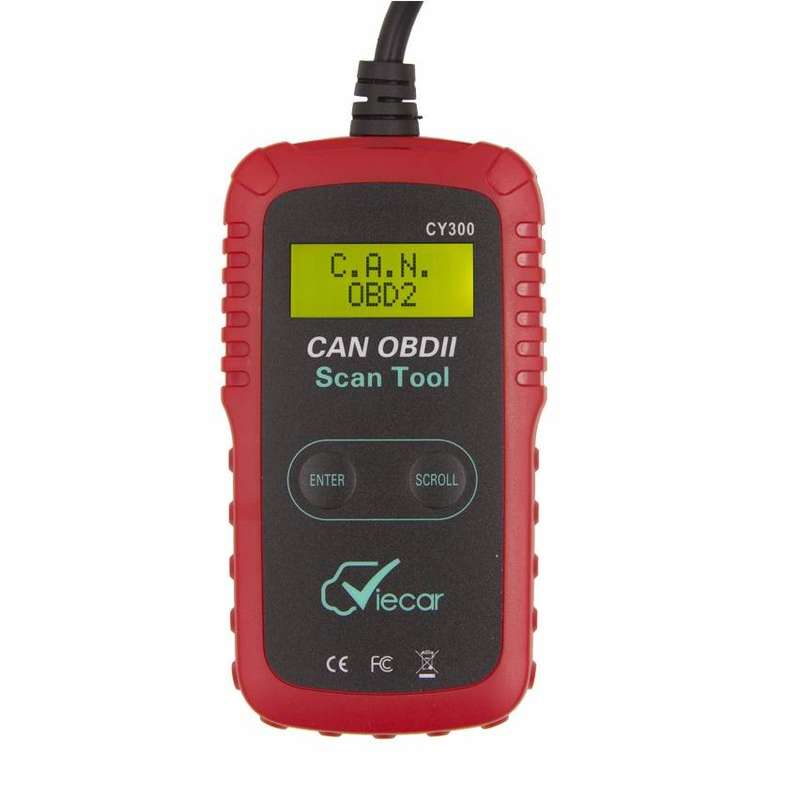

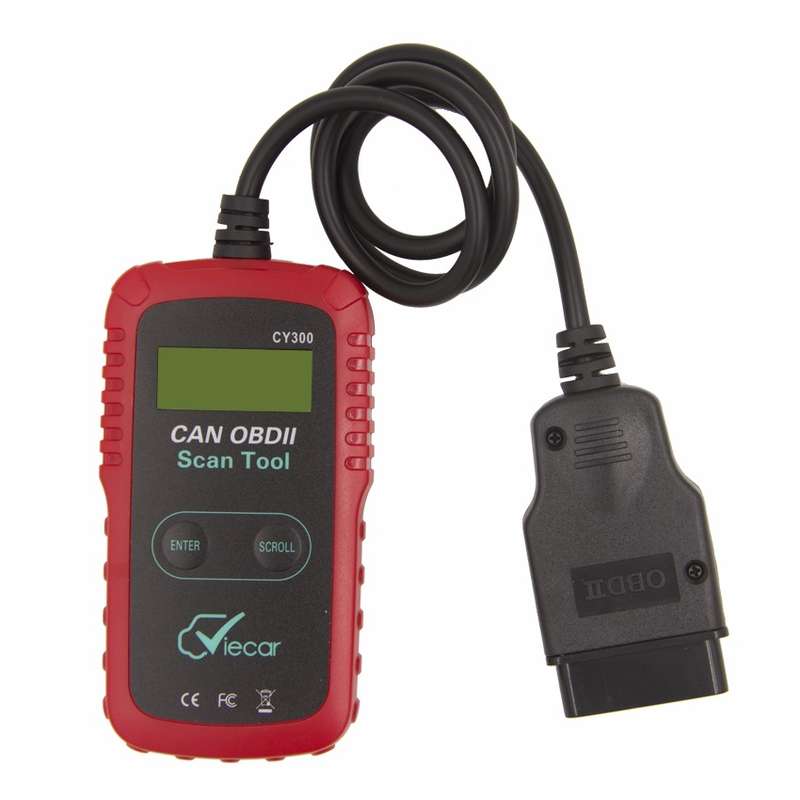

ELM327 OBD2 Scanner VIECAR CY300 OBD2 Diagnostic Interface Tool VC300

Description:
1. The Viecar® VC300 code reader supports all OBD II protocols, including the newly released Controller
Area Network (CAN) protocol.Though it is small, it is able to retrieve same information as large expensive scanners.
2. The Viecar® OBD II Scan Tool is specially designed to work with all OBD II compliant vehicles, including those
equipped with the next-generation protocol-Control Area Network (CAN). It is required by EPA that All 1996 and newer
vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian
and European vehicles.
3. A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995
vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the
hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified".
Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin
Data Link Connector (DLC).
4. For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and
the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Feature:
Work with all 1996 and newer vehicles that are OBD II compliant (including CAN)
Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light
Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
Review the emission readiness status of OBD monitors
Determine the malfunction indicator lamp (MIL) status
Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
Easy to use with one plug-in
Free CD software with over 7000 DTC definitions
No batteries needed-powered via detachable OBD II cable

Supported OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

Specification:
Display: Backlit LCD, 2-line, 8 characters
Operating Temperature: 0 to 50 C (32 to 122 F)
Storage Temperature: -20 to 70 C (-4 to 158 F)
Power: 10.0 to 15.5 Volts provided via vehicle battery
Dimension: 120 x 65 x 21mm (L*W*H)
NW: 0.25 Kg (0.45lb)
GW: 0.27Kg (0.50lb)

Package Included:
1 X Viecar® VC300 Tool
1 X User Manual
