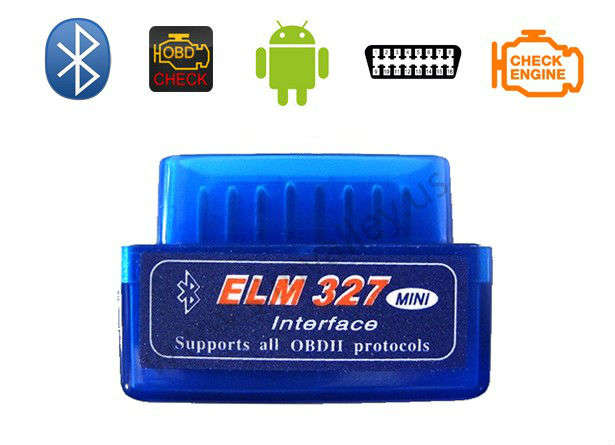

*Local Stock* Super Mini V1.5 ELM327 OBDII 2 Bluetooth Diagnostic Interface Scanner
Features:
The newly developed, high-quality wireless scan tool is a small Bluetooth interface with a 16 pin socket. It supports most OBD2 protocols*, is able to read diagnostic trouble codes (generic and manufacturer specific) as well as clear trouble codes and turn the MIL ("Check Engine" light) off. It operates through Bluetooth using any phone with an Android operating system (using OBD2 applications such as Torque Lite/Pro), Symbian system phones, Windows XP and WIN7 32bit computers that have Bluetooth capabilities. It works on all OBD2 compliant vehicles*.
Protocols (V1.5)
Automatic
1) SAE J1850 PWM (41.6Kbaud)
2) SAE J1850 VPW (10.4Kbaud)
3) ISO9141-2(5 baud init,10.4Kbaud)
4) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5) ISO14230-4 KWP (fast init, 10.4 Kbaud)
6) ISO15765-4 CAN (11bit ID, 500 Kbaud)
7) ISO15765-4 CAN (29bit ID, 500 Kbaud)
8) ISO15765-4 CAN (11bit ID, 250 Kbaud)
9) ISO15765-4 CAN (29bit ID, 250 Kbaud)
-SAE J1939 CAN (29bit ID, 250*Kbaud)
-USER1 CAN (11*bit ID, 125*Kbaud)
-USER2 CAN (11*bit ID, 50*kbaud)
Specifications:
Processor: ELM327 V2.1
Dimensions (Scanner): 4.7cm x 2.5cm x 3.1cm (Package): 15cm x 11cm x 2.5cm
Weight (Gross): 35g (Package weight): 45g
Colour: Blue
Package Includes:
1 x ELM327 V1.5 Bluetooth OBD2 Scanner Tool
1 x software CD
Notes to Buyer:
*The seller takes no responsibility if your car doesn’t have an OBD2 port or is not supported for the device; certain models don't support the device. IN THE DESCRIBED EVENT, NO REFUND WILL BE GRANTED.
