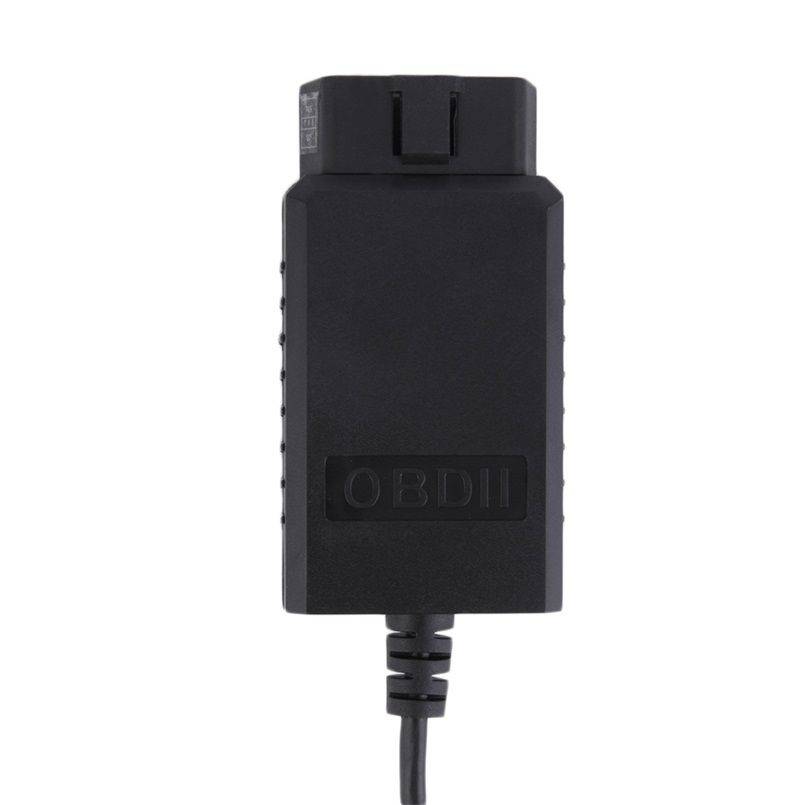

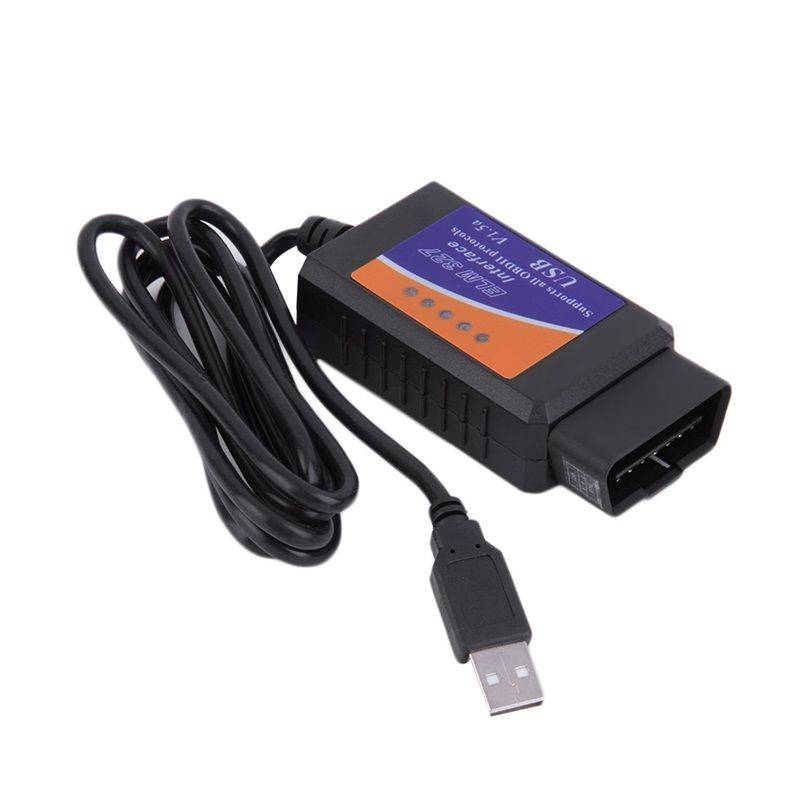

ELM327 USB OBD2 Auto car Diagnostic Tool ELM 327 V1.5USB Interface OBDII CAN-BUS Scanner

ELM327 USB OBD2 Auto car Diagnostic Tool ELM 327 V1.5 USB Interface OBDII CAN-BUS Scanner

• Support 64 bit system
• Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
• Compatible with Systems: DOS, Windows
• View real-time vehicle data, graphs and performance parameters while you're driving
• Find and fix problems before they happen
• Compatible with all OBDII compliant vehicles
• Clear diagnostic trouble codes and turn off check engine lights
• Display and record real-time sensor data, including:
• Vehicle Speed
• RPM
• Fuel Consumption
• Engine Coolant Temp
• Fuel Pressure
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure
• Air Intake Temp
• Timing Advance
• Mass Air Flow
• Fuel Level
• Barometric Pressure
• Fuel Trim
• + More
• Note : Your vehicle may not support all engine metrics. The availability of engine metrics varies depending on the vehicle make and model.

Compatible protocols

• ISO15765-4 (CAN)
• ISO14230-4 (KWP2000)
• ISO9141-2
• J1850VPW
• J1850PWM


Specifications

• Model: B09
• Chip: T340
• Output protocol: RS232
• Baud rate: 9600 or 38400
• LED indicator: OBDTx/Rx, RS232Tx, power supply
• Working voltage: 12V
• Working current: 45mA
• Material: Plastic
• Color: Black
• Net Weight: 100g

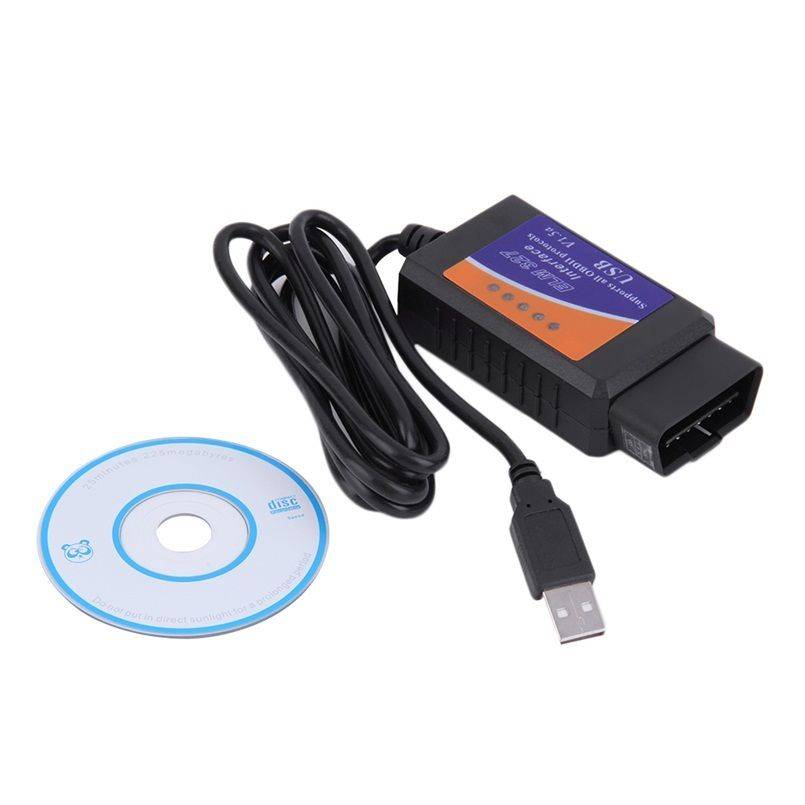

Package Includes:

• 1 x ELM327 OBD2 Scanner.
• 1 x CD Driver.
