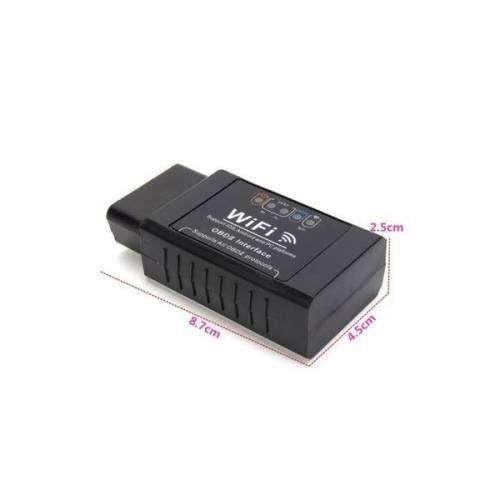

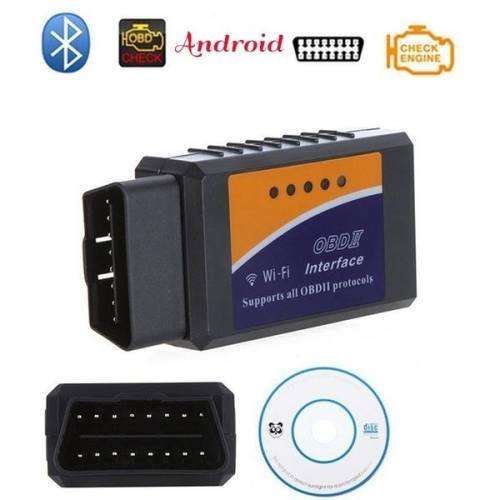

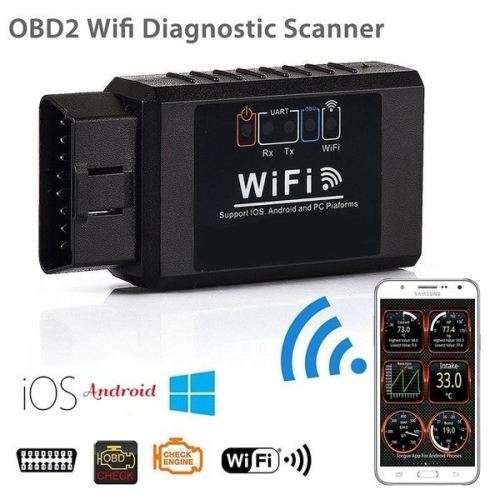

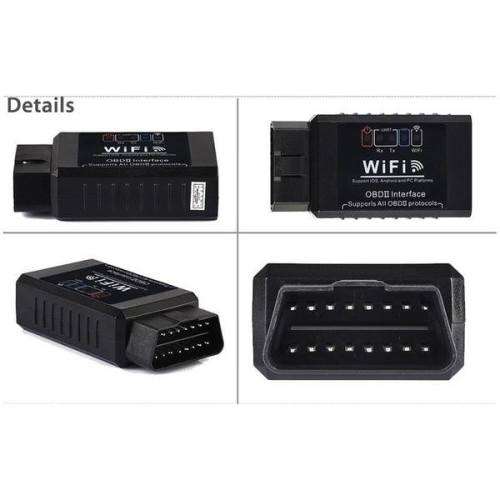

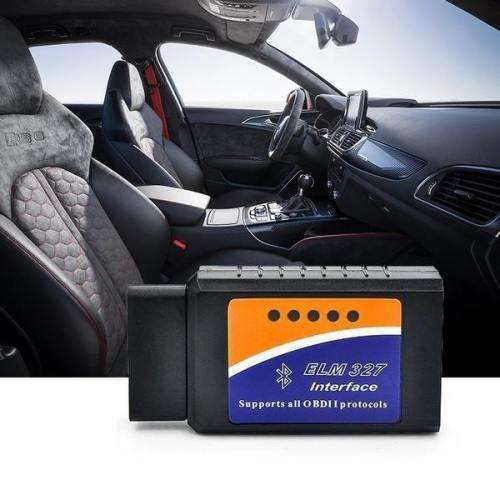

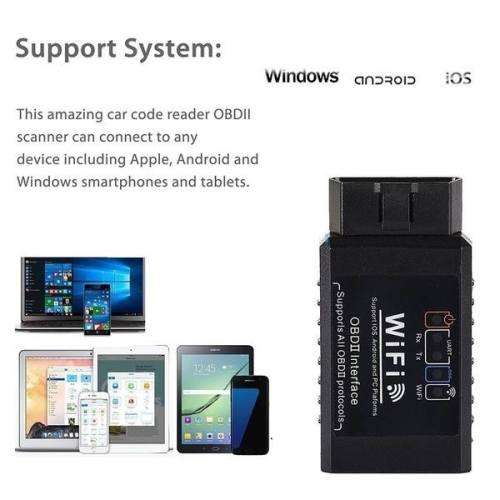

ELM327 V1.5 WIFI Scanner For Android IOS Diagnostic Tool ELM327 OBD2 Scanner

Description About the Item: This product is capable of communicating with vehicles, reading diagnostic trouble codes and clearing trouble codes. All OBD2 Protocols Supported: 1) ISO9141-2(5 baud init,10.4Kbaud) 2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 3) ISO14230-4 KWP (fast init, 10.4 Kbaud) 4) ISO15765-4 CAN (11bit ID, 500 Kbaud) 5) ISO15765-4 CAN (29bit ID, 500 Kbaud) 6) ISO15765-4 CAN (11bit ID, 250 Kbaud) 7) ISO15765-4 CAN (29bit ID, 250 Kbaud) 8SAE J1850 PWM (41.6 Kbaud) 9SAE J1850 VPW (10.4 Kbaud) Functions: 1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2) Clear trouble codes and turn off the MIL ("Check Engine" light) 3) Display current sensor data, including: 4) Engine RPM 5) Calculated Load Value 6) Coolant Temperature 7) Fuel System Status 8) Vehicle Speed 9) Short Term Fuel Trim 10) Long Term Fuel Trim 11) Intake Manifold Pressure 12) Timing Advance 13) Intake Air Temperature 14) Air Flow Rate 15) Absolute Throttle Position 16) Oxygen sensor voltages/associated short term fuel trims 17) Fuel System status 18) Fuel Pressure Item Type: Car Fault Scanner Plastic: Automotive Grade Color: Black; Blue Port: 35000 Range: 50 ft (Line of sight) Antenna: Internal Power Consumption: 0.75 Watts (With Power Switch) Wifi Standard: 802.11a/b/g Operating Temperature: -15 to 100 Celsius Weight: 3.53oz Package Included: 1 * OBD2 Diagnostic Scanner 1 * CD driver 1 * Manual
