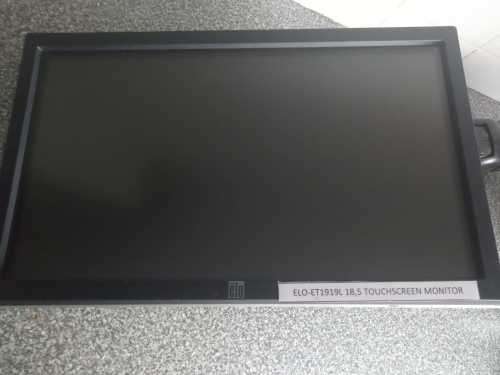

ELO-ET1919L 18,5 TOUCHSCREEN POS-MONITOR (with Swivel Arm or Stand)

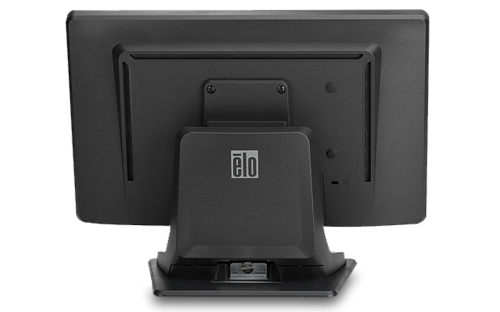

Elo ET1919L 18.5" Touchscreen Monitor

The Elo 1919L 18.5-inch widescreen touchscreen monitor is built to withstand the rigors

 of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look,

coupled with room for more content, makes the 1919L an attractive solution for commercial touchscreen monitor needs.

The 1919L is well-suited for corporate, point-of-sale (POS), point-of-information (POI), point-of-service,

interactive signage, loyalty systems, kiosk, light industrial shop-floor automation and home control.

The touchmonitor is available with two industry-leading Elo touch technologies and multiple mounting

options to support most application uses.

Integrated touch.

The 18.5-inch touchscreen monitor offers a zero-bezel IntelliTouch® surface acoustic wave (SAW) touch technology.

Commercial grade.

The 1919L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year

standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

Widescreen format provides more application spaceSealed touchscreen against dirt, dust and liquidSpace-saving

built-in speakersUser-lockable on-screen display designed for public accessVESA compliance makes wall or arm-mounting

possibleVGA video inputOne-time factory calibration for easy deployment and integration (APR only)Three-year standard warranty

Specifications

Part Number(s)

IntelliTouch ZB (EAME) - E015447

Enclosure Color

Dark Gray

Touch Technology & Capacity

SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

Diagonal Size

18.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area (mm)

16.1" x 9.1" / 410mm x 230mm

Resolution

1366 x 768 at 60 Hz

Other Supported Resolutions

720 x 350 at 70Hz (may not display at full screen)

720 x 400 at 70Hz

640 x 480 at 60, 72, 75Hz

800 x 600 at 56, 60, 72, 75Hz

832 x 624 at 75Hz

1024 x 768 at 60, 70, 75Hz

1280 x 800 at 60 Hz

1280 x 960 at 60Hz

1280 x 1024 at 60, 75Hz

1360 x 768 at 60Hz

1366 x 768 at 60 Hz

1440 x 900 at 60 Hz

1600 x 1200 at 60 Hz

1680 x 1050 at 60 Hz

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 250 nits

AccuTouch: 200 nits

IntelliTouch ZB: 225 nits

Response Time-total (typical)

5 msec

Contrast Ratio

1000:1

Input Video Format

Analog VGA

Input Video Signal Connector

Mini D-sub 15-pin VGA type

Input Video Frequency

Horizontal: 30 - 83 KHz

Vertical: 50 - 75 Hz

Audio Input Connector

3.5mm TRS jack

Audio Input Signal Range

1V rms maximum stereo signal (standard PC line out)

Headphone Output Connector

3.5mm TRS jack x 2, wired in parallel

Headphone Output Signal

Delivers 90mW of power into a single 32-ohm stereo load (for 1KHz signal)

Power Supply

AC-DC power adapter

Input Voltage

12V +/- 5%

Input Connector

Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)

Adapter Input Connector

IEC 60320 C14

Adapter Input Voltage Range

100-240VAC, 50/60 Hz

Power Consumption (Typical)

Monitor only (no audio): 18.5 W

Monitor + AC/DC Adapter at 230V/50 Hz (no audio): 20.7W

Speakers

Two x 2W internal speakers

On Screen Display

Controls: menu, up, down, select, power

Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, OSD language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), Recall Defaults, Sharpness, Volume, Mute

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: power, user controls

Monitor Dimensions (with Stand)

17.9" x 9.3" x 12.6" / 454mm x 236mm x 321mm

Shipping Box Dimensions

22.4" x 16.3" x 8.9" / 570mm x 415mm x 225mm

Weight (with stand)

15.1 lbs / 6.8 kg

Weight (without stand)

10.2 lbs / 4.6 kg

Shipping Weight (With stand)

21.5 lbs / 9.7 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%

Storage: 10% to 90%

Sealability

Touchscreen sealed to bezel

Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

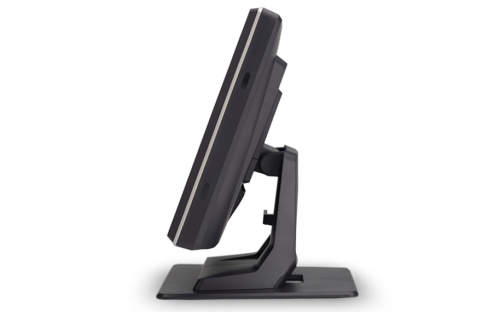

Stand Options

Tilt, remove, pivot (landscape/portrait mode)

Mounting Options

With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode

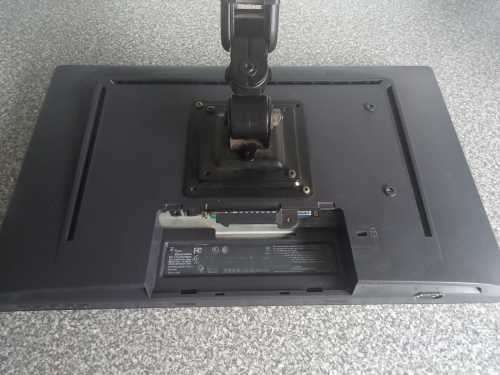

100 mm VESA mount

Warranty

3-year

Extended Warranty Options

1 Year Extended Warranty - Elo P/N: 758588-000

2 Year Extended Warranty - Elo P/N: 930057-000

Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

Regulatory approvals and declarations

UL, cUL, CE, CCC, VCCI, KC, KCC, CoC, BSMI, CB, RoHS, China RoHS, WEEE, IMERC

What's in the Box

QIG, User Manual CD, VGA cable, USB cable, Serial cable (attached if support combo), Audio cable, power cord, power adapter,

screws for cable cover and stand plate

Cable Kit for Replacement Cables

P/N: E378229 (Gray)

Optional Power Supply Brick

North America: E005277

EMEA & Korea: E571601

UK: E180092

China: E558862

Taiwan: E818655

Japan: E182546

Argentina: E887099

Optional IntelliTouch Stylus Pen

Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW technology. Elo P/N: D82064-000, available at additional cost.
