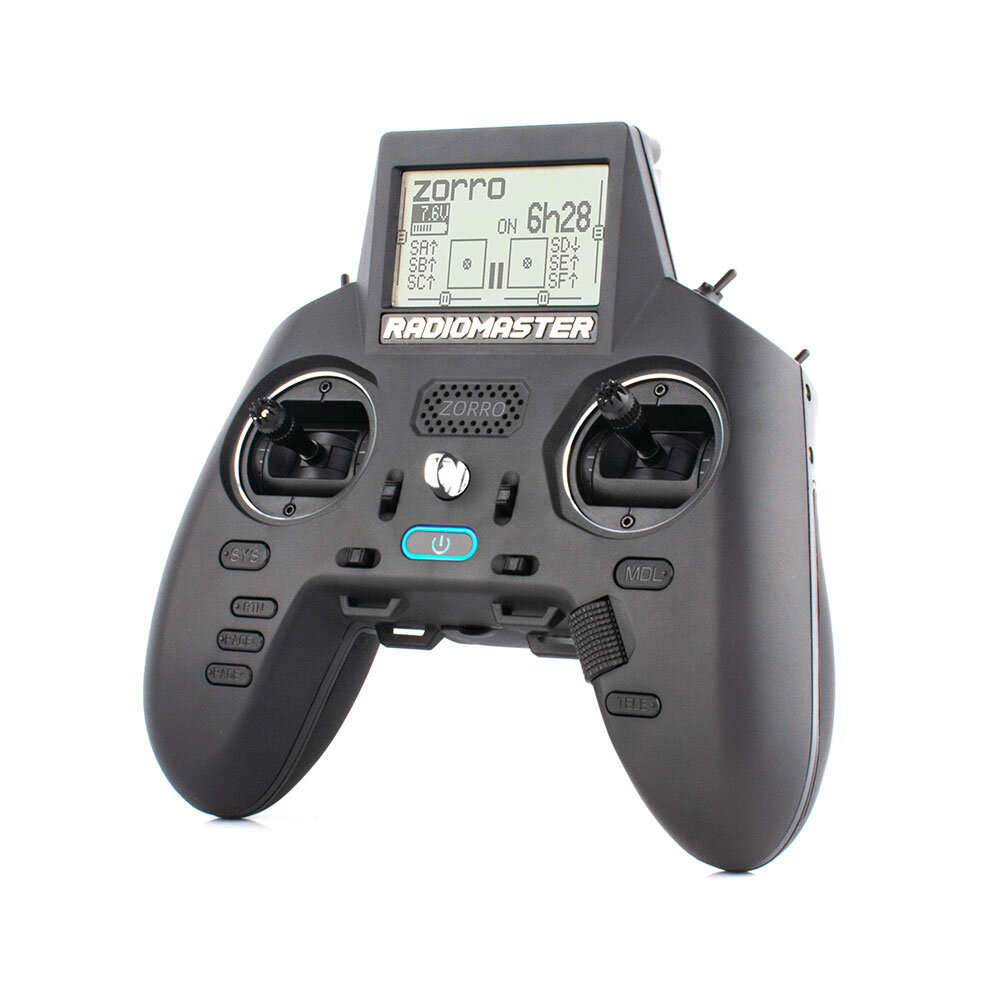

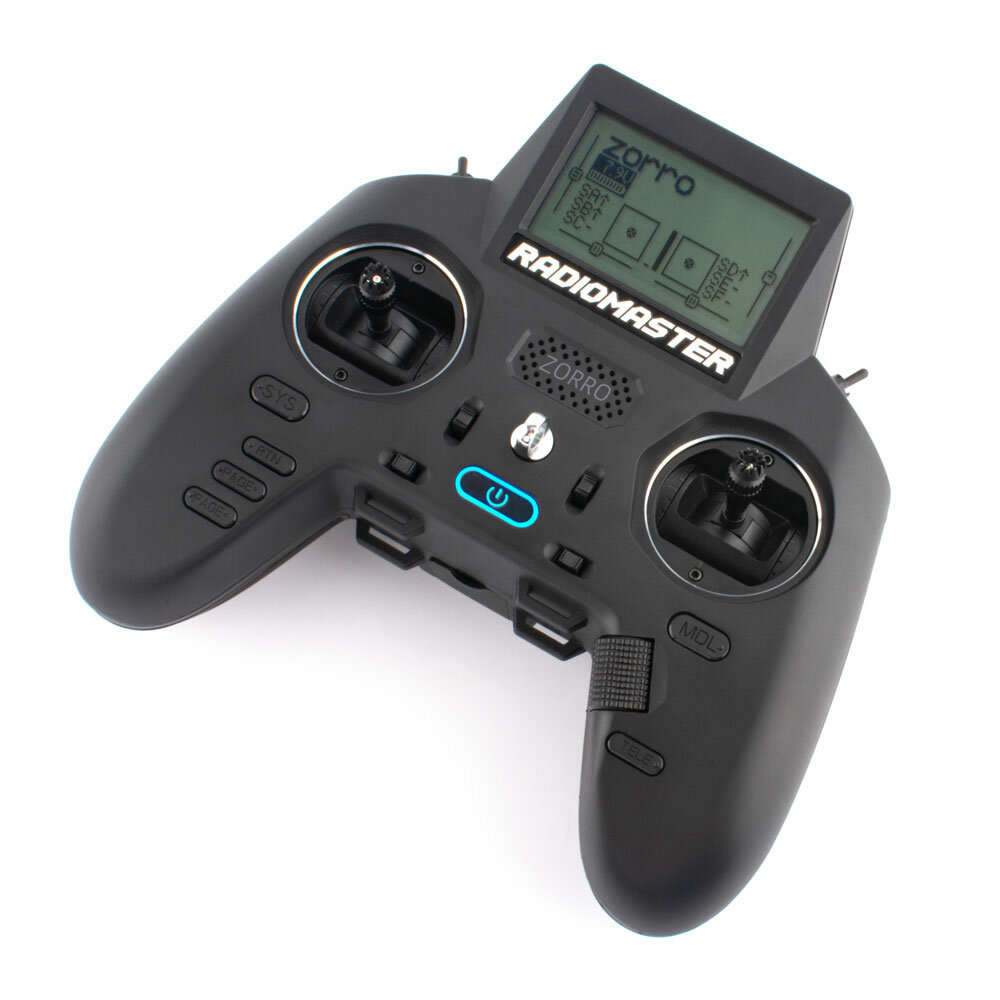

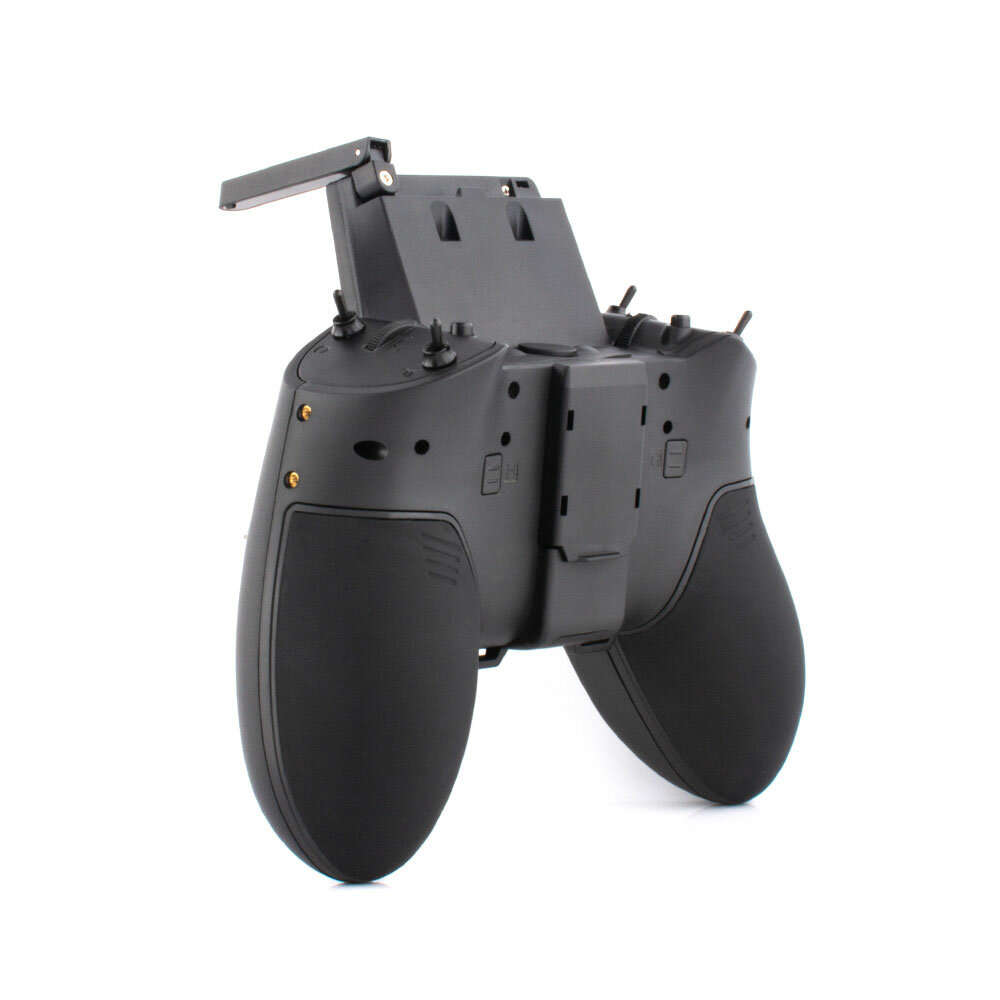

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter for RC Drone
OVERVIEW:
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Description:
Brand Name: RadioMaster
Item Name: Zorro Radio Transmitter
Weight: 350g
Size: 170*159*108 mm
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz (Optional)
Supported protocols: Module dependent
RF power: 4-in-1: 20dBm max. / ELRS: 22dBm max.
Antenna gain: Folding 2db
Operational current: 160mA at 8.4V
Operational voltage: 6.6-8.4v DC
Control distance: > 2km at 20dbm
Operating system: OpenTX / EdgeTX Compatible
Control channels: Maximum 16 (Rx dependent)
Display: 128*64 Monochrome LCD
Battery: 2 x 18350 (Not included)
Charging: Built in USB-C Charging
Gimbal: Hall-effect
Module bay: Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)
Firmware Upgrade method: Via USB or SD card (SD Not included)
4IN1 Version:
A7105 - Flysky, Hubsan, AFHDS2A etc
CC2500- Frsky, Futabas SFHSS. Hitec, RadioLink etc
CYRF6936 - DSM/DSMX, Walkera Devo, Wfiy etc
NRF24LO1 - Hisky, Syme. ASSAN etc
Radio Firmware:
https://www.open-tx.org/
http://edgetx.org/
RF Firmware:
4-in-1 Multi-module: https://www.multi-module.org/basics/supported-protocols
ELRS: https://github.com/ExpressLRS/ExpressLRS
Package Included: 1 x Zorro JP4IN1/ELRS Radio Transmitter
(Optional Version)
| Zorro Radio Control Specs |
| Versions | Zorro Radio Control
CC2500 | Zorro Radio Control 4in1 | Zorro Radio Control ELRS | Zorro Radio Control
ELRS Starter Set | Zorro Radio Control CC2500 + TBS Nano Crossfires Combo |
| Physical dimensions | 170*159*108mm |
| Weight | 350 grams |
| Operating frequency | 2.400GHz-2.480GHz |
| Internal RF Options | CC2500 multi-protocol | 4-in-1 multi-protocol | ELRS | CC2500 multi-protocol |
| Supported protocols | Module dependent | Module dependent | ELRS | Module dependent |
| RF power | CC2500: 20dBm max. | 4-in-1: 20dBm max. | Up to 150mw ( CE & FCC Versions will be available) | CC2500: 20dBm max. |
| Antenna gain | Folding 2db |
| Operational current | 160mA at 8.4V |
| Operational voltage | 6.6-8.4v DC |
| Control distance | > 2km at 20dbm | > 2km at 20dbm |
