specification

GPU Specs

Graphics Processor NVIDIA® GeForce® GTX 770 graphics processor

CUDA Core Processor 1536 cores

Base Clock 1070MHz

Boost Clock 1100MHz

Memory specs

Memory Standards GDDR5 SDRAM

Memory capacity 4GB

Memory I/F 256bit

Memory Data Rate 7GHz

Other specifications

bus PCI Express x16

Supported APIs NVIDIA 3D Vision® Support

NVIDIA SLI®-Ready Technology

NVIDIA CUDA® Technology

OpenGL 4.3 Support

OpenCL Support

NVIDIA® SHIELD® Support

Microsoft DirectX 11.1 (DirectCompute 5.0 Support)

Main features NVIDIA® TXAA Technology

NVIDIA GPU Boost 2.0 Support

NVIDIA PhysX® Technology

NVIDIA FXAA Technology

NVIDIA Adaptive Vertical sync Support

NVIDIA Surround Display Technology

Certification Standards EU RoHS / CE / FCC

Maximum power consumption 260W (Reference value)

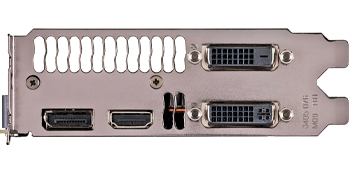

On-board connector DVI-I x1 (HDCP, dual-link DVI, analog VGA output support)

DVI-D x1 (HDCP, dual-link DVI support)

HDMI1.4a x1 (HDCP, xvColor, HDMI Deep Color, 7.1ch Digital Surround Sound, Blu-ray 3D support)

DisplayPort 1.2 x1 (supports maximum resolution of 3840x2160)

Number of output screens Up to 4 screens

External dimensions 254mm (length) x 111mm (height) x 35mm (thickness) 2 slot type (*Bracket not included)

Required operating environment

CPU DOS/V PC equipped with a dual-core CPU of Intel Core 2 or AMD Athlon II x64 or higher

Connection bus slot One free PCI-Express x16 slot and one adjacent expansion slot

Supports PCI-Express 3.0 (*Compatible with PCI-Express 2.0, 1.1, 1.0)

Power capacity Minimum: A power supply with a rated output of 600W or more

Recommended: A power supply with a rated output of 650W or more

Power Connector PCI-Express 8-pin power connector × 1

1x PCI-Express 6-pin power connector

System Memory 2GB or more of system memory (4GB or more of system memory recommended)

hard disk 300MB or more
