EM276 Automotive Injector Tester 4 Pluse Modes Powerful Fuel System Diagnostic Scan Tool

10 were available / new

R1,070.73

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Gomarkle1294

97.36 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Bob Shop ID

443246181

Features:

1.The tester can help diagnose injector problems,you can use it to test each injector individually to help idently stuck,leaking or burnt-out conditions.

2.It uses 12V vehicle battery for power.

3.It has 4 pulse modes, the continuous mode (mode 4) helps identify good or bad injector.

4.The mode lock feature ensures test condition uniformity.

5.It can work with any fuel pressure tester.

Specifications:

Power Supply: 12V vehicle battery

Operation Environment: 0-40°C,relative humidity<80%

Storage Environment: -10°C ~50°C, relative humidity<85%

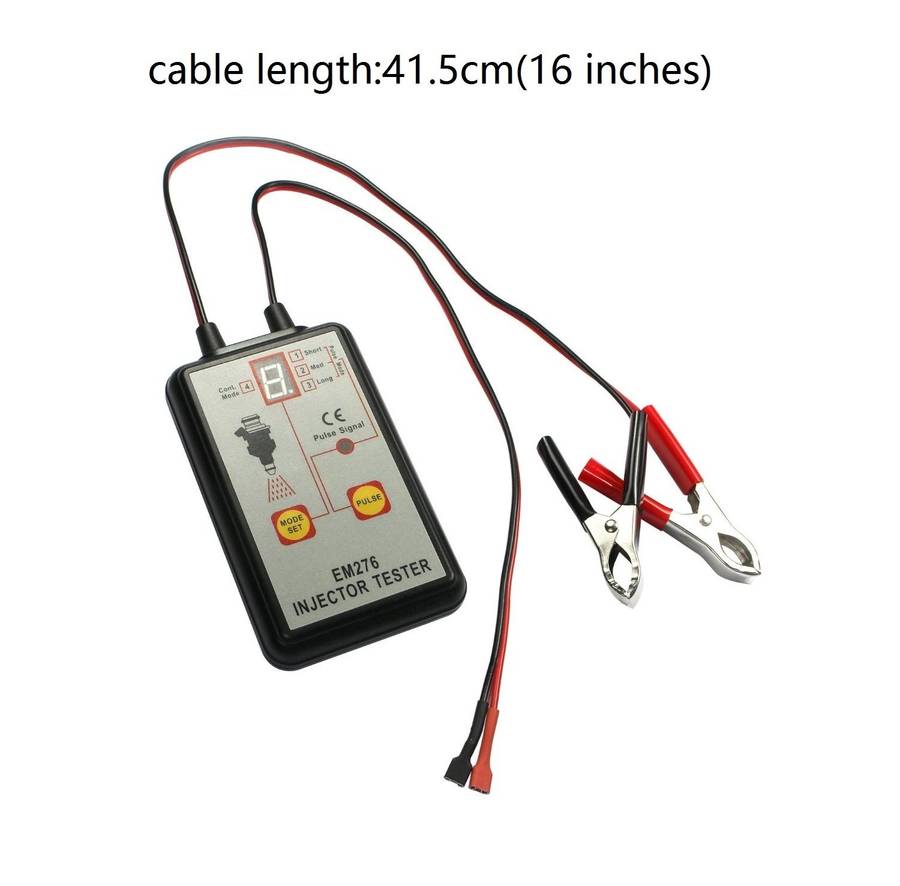

Test Cable Length: 41.5cm/ 16.3 inches

Product Size: 147x82x29mm

Operation Instruction

1.Turn off the vehicle’s engine.

2. Connect the black clip to the negative terminal of the vehicle battery, connect the red clip to the positive terminal of the battery.

3.Locate the fuel injector which you want to test, then remove the electrical cable from this injector and connect the tester’s two pulse output
terminals to the electrical connector of this injector.

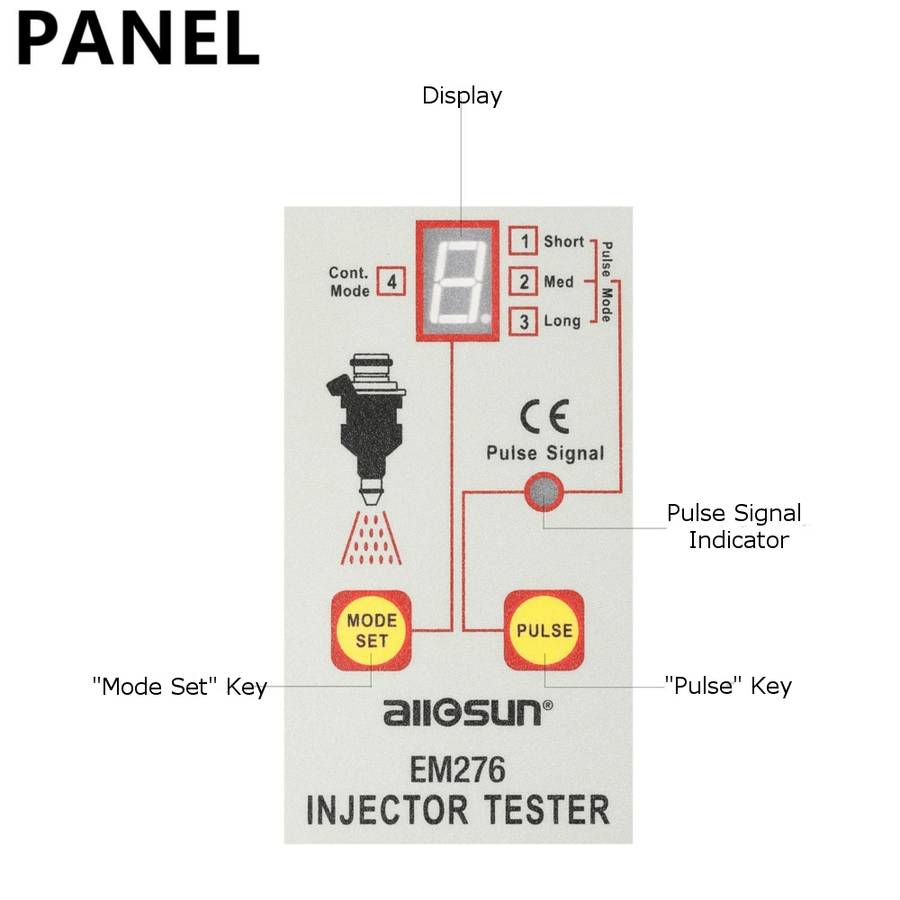

4.Press the MODE SET key to select the desired pulse mode, the display shows the current pulse mode.

5. After you have selected the desired pulse mode, press the PULSE key. The tester outputs pulse(s) to the injector under test, the pulse signal
indicator will light as indication.

Explanations For The 4 Modes:

Mode1: the tester will output 1 pulse, whose pulse width is about 250ms.

Mode 2: the tester will output 50 pulses, every pulse’s pulse width is about 7ms.

Mode 3: the tester will output 100 pulses, every pulse’s pulse width is about 3.5ms.

Mode 4: the tester will output continuously at the rate of 50 pulses per about 1450ms, every pulse’s pulse width is about 7ms.

At any time, you can press the PULSE key again to stop outputting pluse.

Package Includes:
1 X Tester (Batteries Not Included)
1 X Carry Bag
1 X User Manual
