Mechanical Specification:
Overall Dimensions: See Drawing Below
Weight: 5.8±0.5 g(0.195 oz)
Connector Wire Gauge: JR
Connector Wire Length: 180±8mm (W/O Connector)
Output Gear Spline: 15T
Bearing: NO
Gear Type: Metal
Extreme Angle: 360°
Control Specification:
Control System: PWM
Operating Travel: 90° ±10( when 1000-2000 sec )
Neutral Position:1500 sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 sec
Pulse Width Range: 600-2400 sec
Maximum Travel:160° ±10°( 600-2400 sec )
Features:
-High voltage capabilities for increased performance.
-Fast and precise movement for smooth control.
-Compact size for easy installation in tight spaces.
-Durables construction for long-lasting use.
-Compatible with a wide range of RC models.
Package Includes:

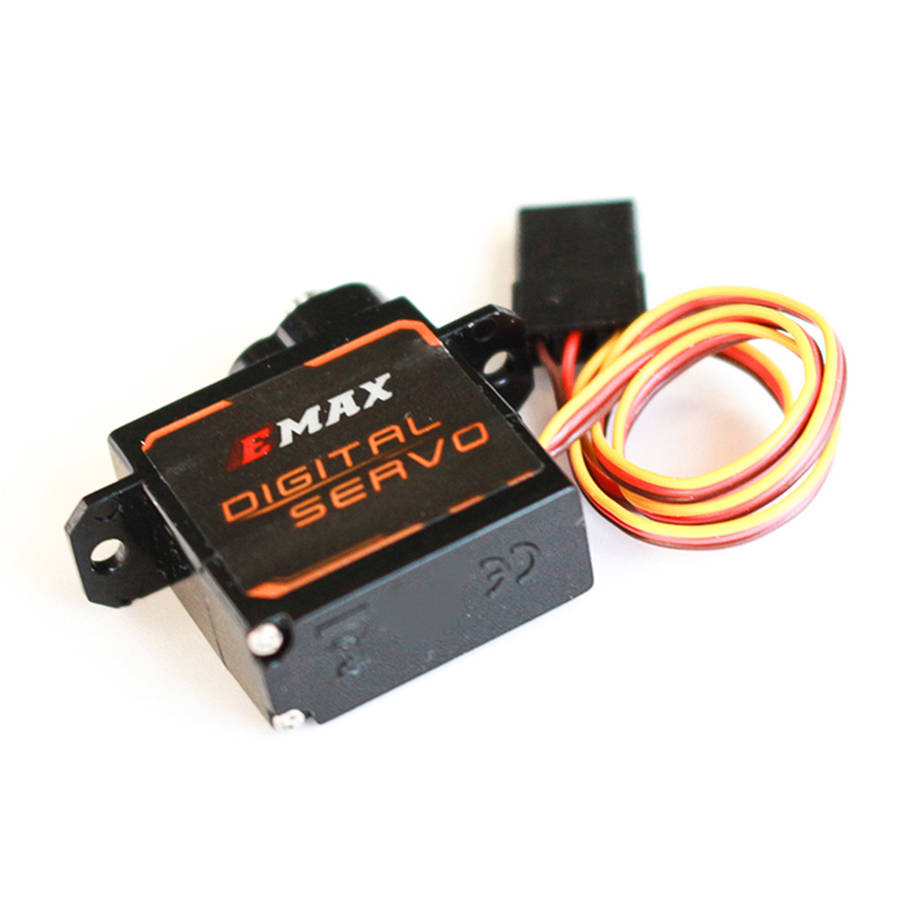

1 x EMAX ES9052MD HV High Voltage Servo
