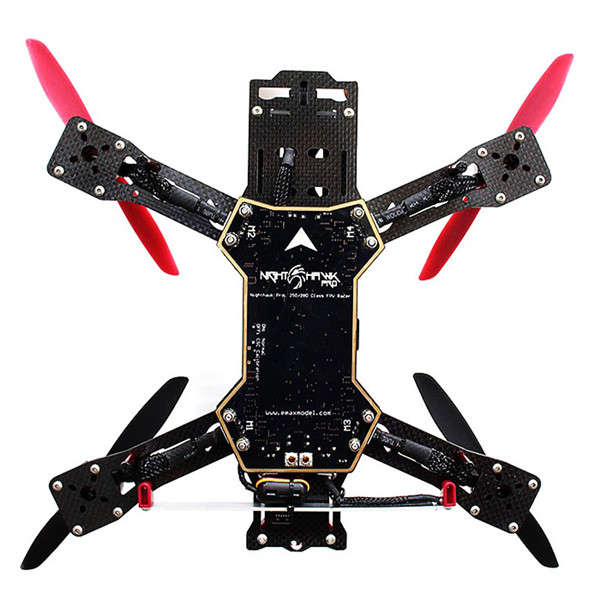

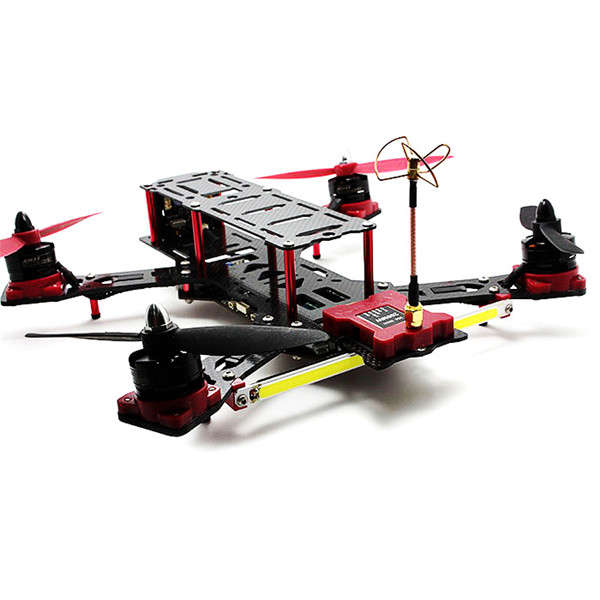

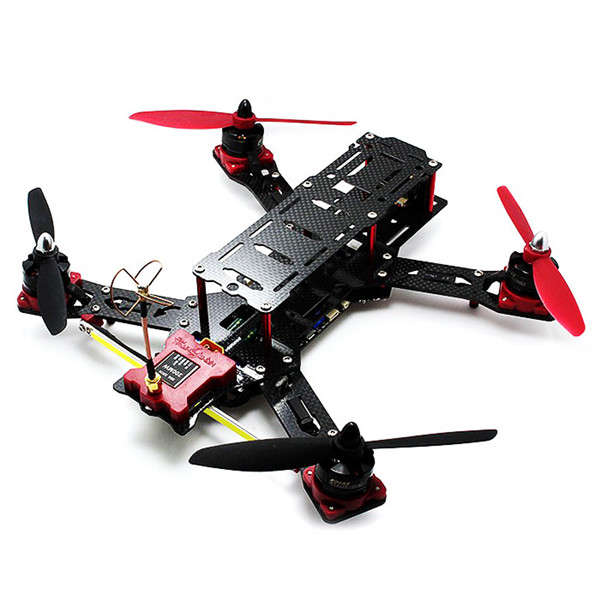

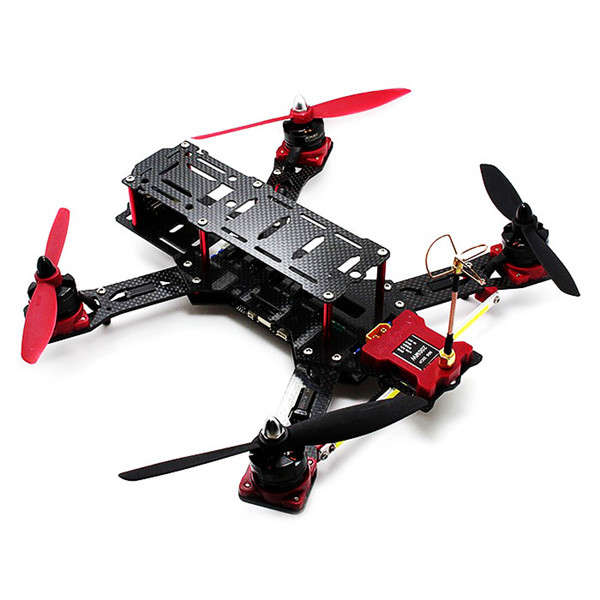

EMAX Nighthawk Pro 280mm Size Carbon Fiber And Glass Fiber Mixed Quadcopter Frame RTFThe Nighthawk Pro 280 was designed from the ground up to meet the exacting specifications of the Drone Racer. It comes fully tuned with the new Skylight 32 integrated flight control board with four 12Amp BLHeli One shot speed controllers. The power system consists of EMAX 2204 2300 kV motors and 6045 propellers mounted on a 10 degree tilt allowing greater forward speeds without sacrificing elevation. For the FPV racer, the Nighthawk Pro 280 includes a 700TVL camera with optional tilt mounts that allow you a perfect horizontal view in flight, and a 20W-200W video transmitter with a selectable switch, allowing you the option to choose the power output of your transmitter. It is without a doubt an exciting new quadcopter that captures the joy of quadcopter racing!
Specifications:Brand name :EMAX

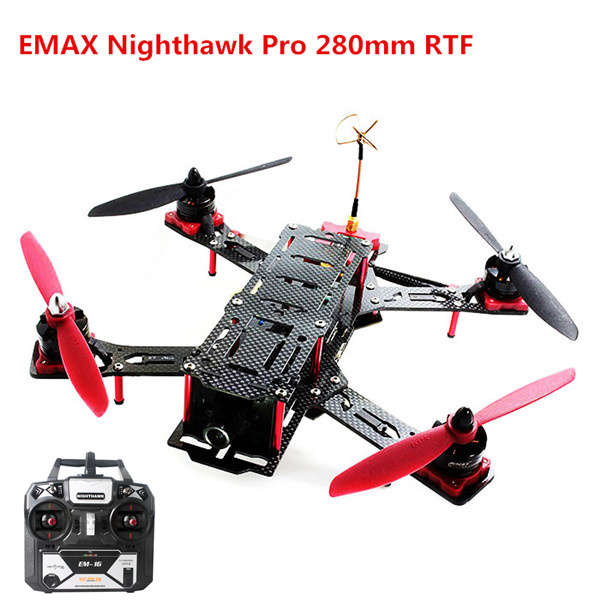

Item name:Nighthawk Pro 280mm Quadcopter Frame RTF
Wheelbase: 280mm
Flight Weight: 440g
(No Battery Included)Frame Size: 252mm*260mm*75mm
Package Size: 315*295*100
(mm
)Motor: MT2204(Customization Version)
ESC: BLheli 12A 4in1(Integrate on board)
Propeller: 6045
Flight controller: Skyline32(Integrate on board)

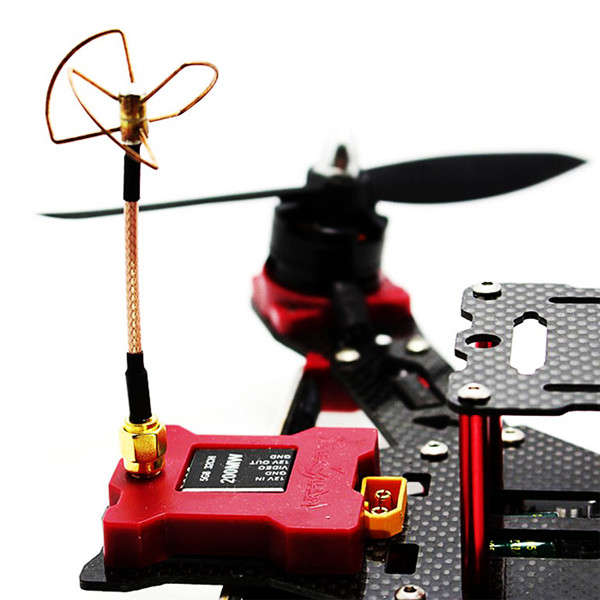

FPV transmitter: 20MW/200MW
Antenna: 5.8G Clover 3 Blade Antenna Straight Connector

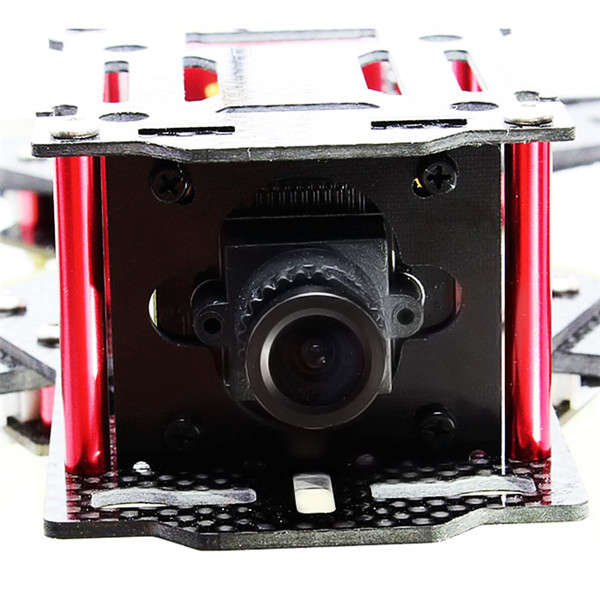

FPV Camera: 1/3-inch CMOS PAL type
Remote controller:2.4G 6 channel(Model1/Model2)
Receiver
Configuration Suggest:Battery: 3S,1500-2200mAH 30C
Features:
— Independent designed solid, durable and stable frame, centroid and center of gravity are same even battery installed
— Prebuilt frame and extra accessories, Built with powerful EMAX power system and open source flight controller to ensure power and
customizable (RTF model can fly after battery and propellers installed)
— The sturdy copter frame has extensive flight test and endurance test.

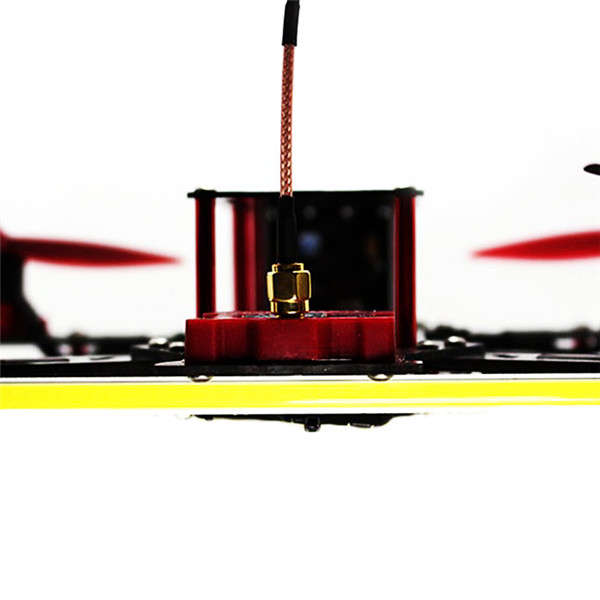

— Bright COB rear LED, different LED color can use distinguish copters when group flying (LED power consumption is 4W, which might decrease
flying times.)
— All in one design to combine ESC, BEC, and flight controller for easy installation and easy replacement. Plug and play motor, easy for swapping
motor and no soldering needed.

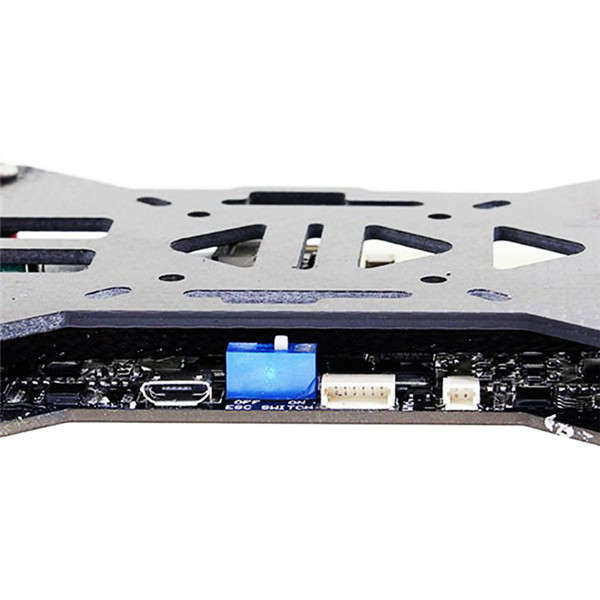

— Independent. Independent ESC and flight controller and power supply. ESC switch to perform single ESC calibration and boot pad to perform
software and firmware upgrade.
— Flight controller use 32bit ARM micro processor, fast process speed to ensure fast respond
— Gyroscope, magnetometer, and accelerometer and barometer expansion port. With CPPM receiver GPS feature can be enable. (GPS module sold
separately)
— Support ANGLE, HORIZON, HEADFREE, MAG, HEADADJ ...etc modes.
— Support RC Input: standard signal, CPPM (PPM SUM) signal, PWM singal.
— Low voltage monitoring and low voltage warning. (Buzzer sold separately)
— Use EMAX 12A ESC, support open source BLHeli and ONESHOT feature; flight controller is based on NAZE32 Skyline32, support open source
configurator Baseflight and Cleanflight
— Extra power output and power output switch for LED expansion.
Package Included:
1 X EMAX Nighthawk Pro 280mm Quadcopter
1 X Transmitter
