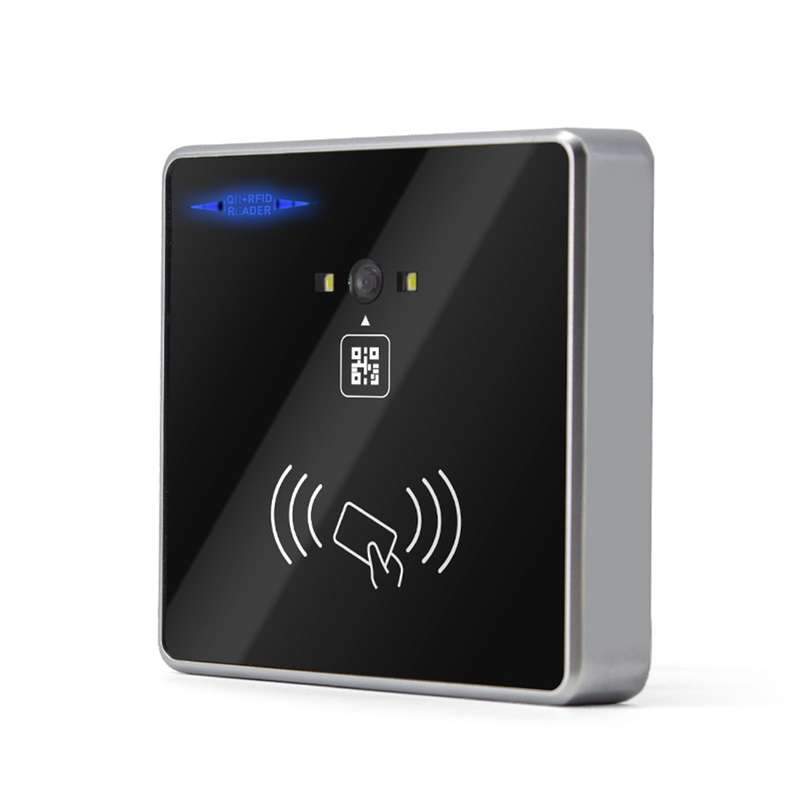

Embedded 1D 2D Barcode Scanner QR Bar Code RFID Card Reader Wiegand Connection Self-Induction

Features:
?? High performance decoding chip, can read 1D/ 2D QR codes and IC card, ￂﾠCommunication Method: WIEGAND 26/34/RS232/RS485/TTL.
?? Using image scanning technology, it can scan paper code and screen code, fast to recognize the barcodes.
?? The buzzer will make a crisp sound Beep to prompt after successfully scanning.
?? Made of high quality Zinc Alloy Frame and Acrylic Panel material, the scanner is durable and not easy to damage.
?? The scanner module can be applied in various occasions such as elevator, community visitors' entry and exit management and son on. Perfect upgrade of traditional card swiping system for various industries.

Specification:
Model: R36
Material: Zinc Alloy Frame + Acrylic Panel

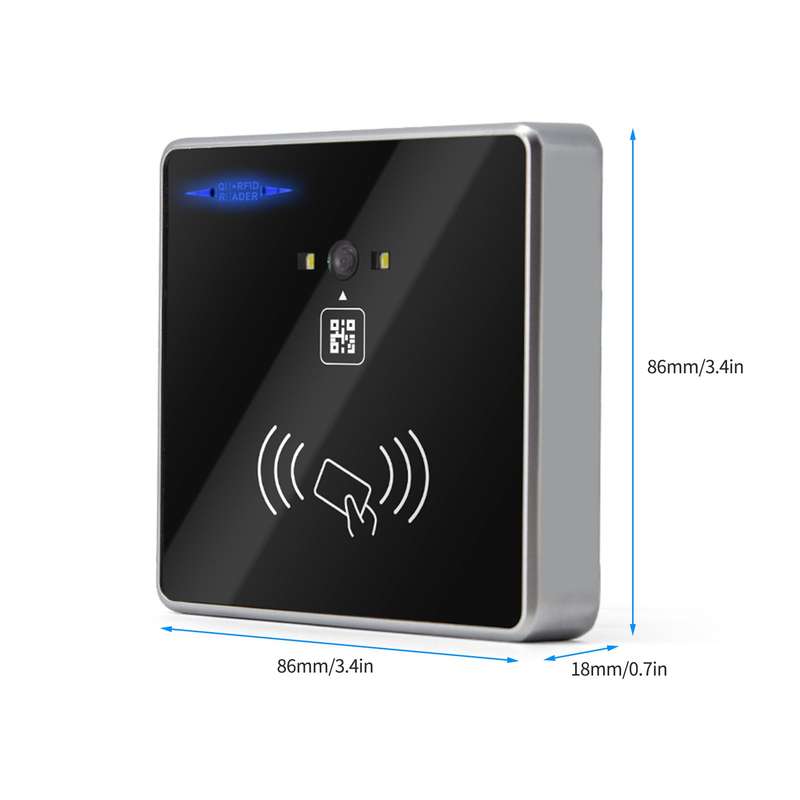

Size: 86 x 86 x 18mm/3.4 x 3.4 x 0.7in
Weight: 150g/5.3oz
Card Reader Type: EM Card Or Mifare Card
Barcode Type: Qr, One/Two-Dimensional Code
Communication Method: WIEGAND 26/34/RS232/RS485/TTL
Decoding Mode: Image Decoding
Reading Direction (Bar Code): Angle 45ￂﾰ With The Lens As The Center Point
Scan Code Characteristics: Automatic Induction, Buzzer Promp
Operating Voltage: 8-12v
Working Current: 800ma
Card Reading Distance (Card): 3~6cm
Reading Speed: ￯ﾼﾜ200ms
Reading Distance (QR Code): 0-20cm
Working Humidity: 10%~90%
Operating Temperature: -20￢ﾄﾃ~70￢ﾄﾃ
Operating System: Windows XP/7/8/10), Linux
Indicator Light: Blue Work Light, Green Feedback Light
Package Size:ￂﾠ16.5*13*4/6.5*5.1*1.6in
Package Weight: 420g/14.8oz

Packing List:
1 x Embedded Barcode Scanner
