Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch
Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch Embedded NC Model Door Magnetic Sensor Switch
Embedded NC Model Door Magnetic Sensor Switch
+2

Embedded NC Model Door Magnetic Sensor Switch

New 10 available
R228.36
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD06056687
Bob Shop ID
639713990

1. Material: ABS imported reed switch; 1007#/26#360mmUL wire
2. Action distance: 18mm
3. Switch withstand voltage: 100VDC
4. Load current: 300mA

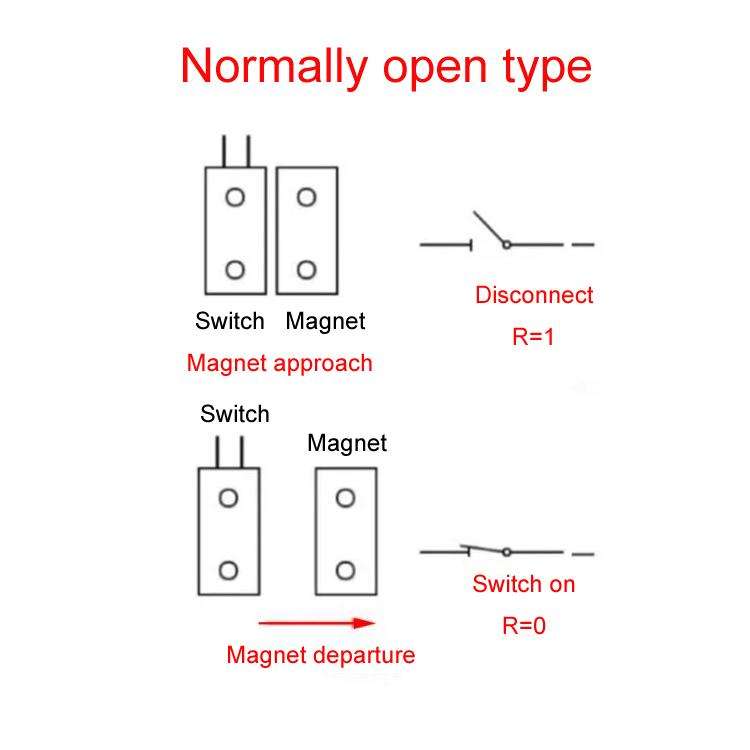

5. Switch output: normally open (the normally open door magnetic switch means that the switch signal is disconnected when the switch and the magnet are close together, and the switch signal is closed when the switch and the magnet are separated, commonly known as the passage)
6. Surface-mounted, suitable for installation on non-iron doors or windows
7. If the door magnetic is to be powered, the voltage is controlled at DC0V-24V, the power supply current cannot exceed 1A, and the load current is 120mA
8. Size: 27x14x8mm
9. Warm reminder: the door magnetic is not equipped with screws when it leaves the factory

Add to cart
