This auction has been won.
View other items offered by CableZn99
Leading
bw4903139
1 ×
R6,499.00
24 Nov 13:11
Similar products

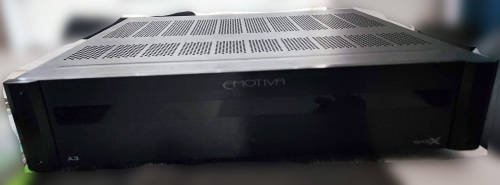

Emotiva Basx A3 Three-Channel Power Amplifier 3x140w 8 Ohms/3x200 watts 4 Ohms
1 was
available
/ secondhand
Indicative market price: R20,000
R10,000.00
50% OFF
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Manufacturerwarranty
Warranty Type: Manufacturer
Bought directly from Emotiva USA which offers a three year warranty.
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
Secondhand
Location
South Africa
Type
Power Amplifier
Customer ratings:
Bob Shop ID
598927105
Comes in with original box. Good Condition - Used for 8 months.
Feel free to ask any questions related to the amplifier.

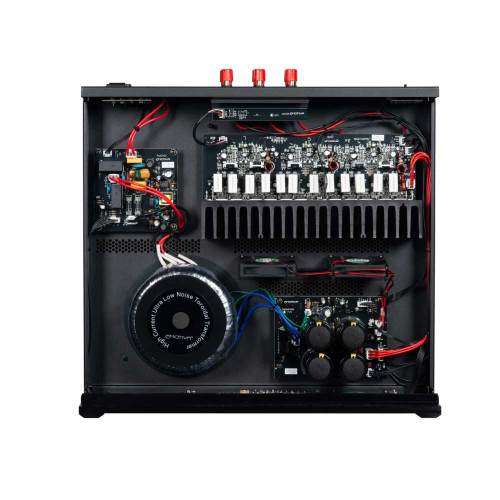

Circuit Topology
- The BasX A3 is a three channel power amplifier. The BasX A3 combines classical audiophile amplifier architecture, based on a heavy-duty linear power supply, and a carefully designed high current short signal path Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry, to deliver superb sound quality at a truly reasonable price.
Audio Specifications
- Power Output (ALL channels driven):
140 watts RMS per channel; 20 Hz 20 kHz; THD < 0.1%; into 8 Ohms.
200 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms. - Power Output (two channels driven):
150 watts RMS per channel; into 8 Ohms.
250 watts RMS per channel; into 4 Ohms. - Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / 0.02 dB)
- Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB
- THD + noise: < 0.02% (A-weighted); ref rated power
- Signal to Noise Ratio (8 Ohm load):
> 112 dB; ref rated power; (A-weighted). - Minimum Recommended Load Impedance (per channel): 4 Ohms
(which equals one 4 Ohm load or two paralleled 8 Ohm loads). - Damping Factor (8 Ohm load): > 500.
- Input Sensitivity (for rated power; 8 Ohm load): 1.25 V.
- Gain: 29 dB.
- Input Impedance: 27 kOhms.

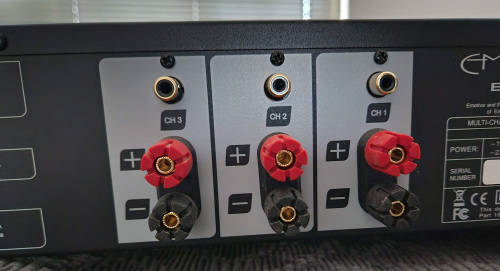

Input And Output Connections
- Input Connections: Unbalanced (RCA); one each per channel.
- Speaker Output Connections: Audiophile grade 5-way binding posts.
- Trigger:
Trigger Input: 5 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirements
- 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
Front Panel Controls and Indicators
- Standby: push button.
- Status LEDs: one per channel; blue.
Standby LED: amber.
Rear Panel Controls
- AC Power switch: rocker switch (switches AC main power).
- Status LEDs switch: disables front panel Status LEDs.
Protection
- The BasX A3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
Mechanical
- Dimensions:
17 wide x 4 high x 15-1/2 deep (not including connectors).
21-1/2 wide x 8 high x 21 deep (boxed). - Weight:
25 lbs (unboxed)
31 lbs (boxed)
