* Professional installation recommended
Emporia has developed the next generation of the Vue Energy Monitor. Committed to bringing the best value at the lowest price possible, the Vue provides everything you need to monitor your entire home's energy usage in real time, as well as 8 extra sensors to allow you to monitor individual circuits. Not only can you see how much energy your home is using at any moment and over time, but you can also monitor how your individual appliances affect your energy bills.
Features and Benefits
READY FOR 3-PHASE
- Includes an extra 200A Sensor for light commercial 3-phase/4-wire electrical systems (up to 415Y/240VAC & less than 600A ).
- Does not work with 3-phase/3-wire systems (Delta systems with no neutral). NO NEED TO PURCHASE AN EXTRA SENSOR

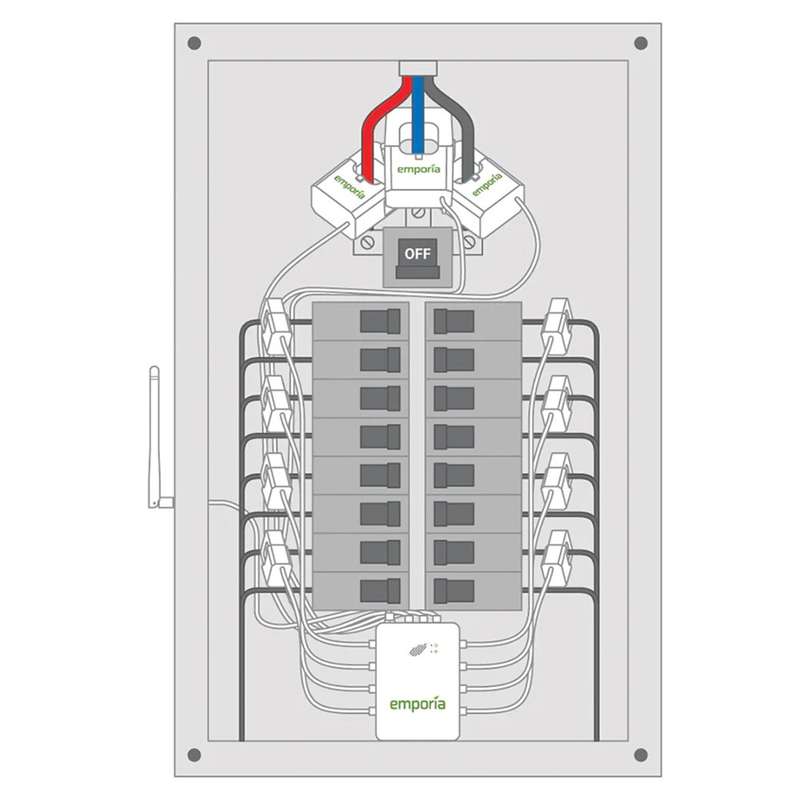

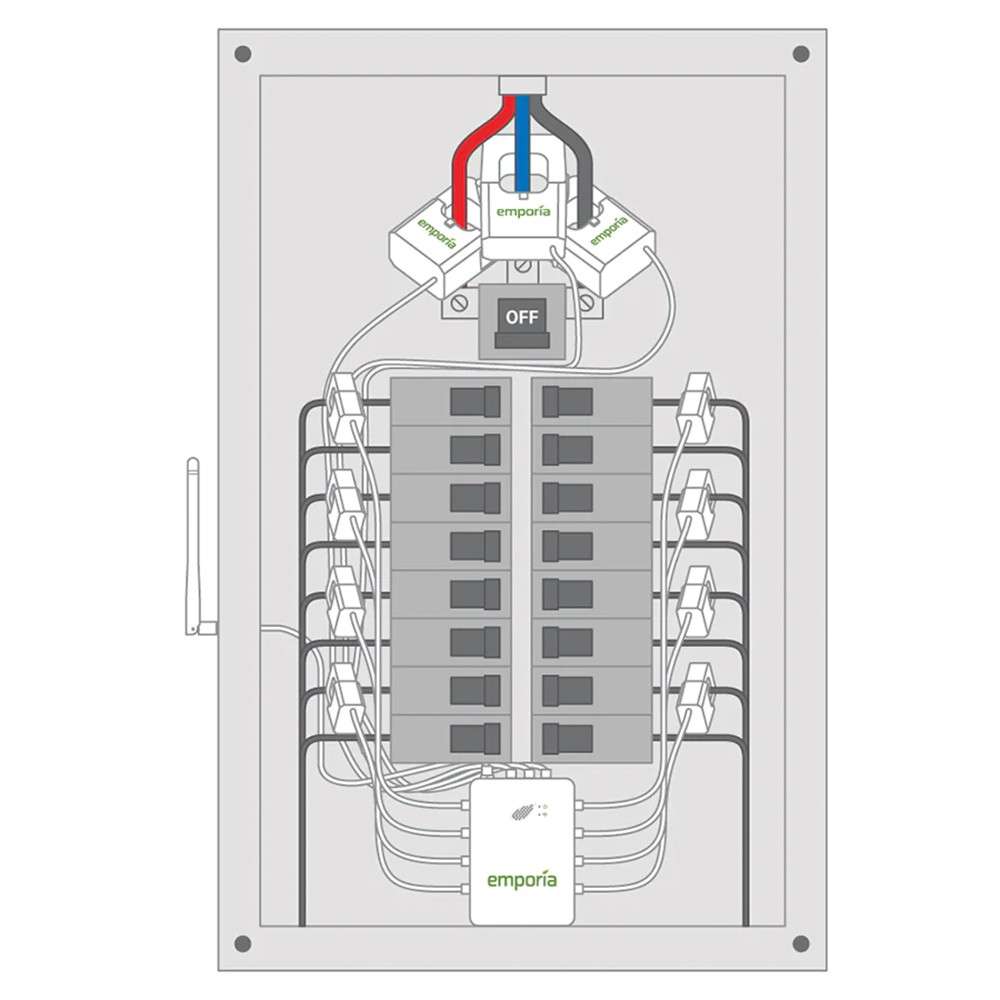

INSTALLS IN CIRCUIT PANEL
- Installs in circuit panel of most homes with clamp-on sensors; although it doesn't typically work in panels with access only to busbars.
- INSPECT YOUR ELECTRICAL PANEL for compatibility. Includes DIY instructions, though a professional electrician is recommended.
24/7 ENERGY MONITORING
- Monitor your home's real power anywhere, anytime to prevent costly repairs, conserve energy, and save costs. Monitor solar / net metering.
LOWER YOUR ELECTRIC BILL
- Gauge real-time spending and get actionable notifications to understand where you can save costs.

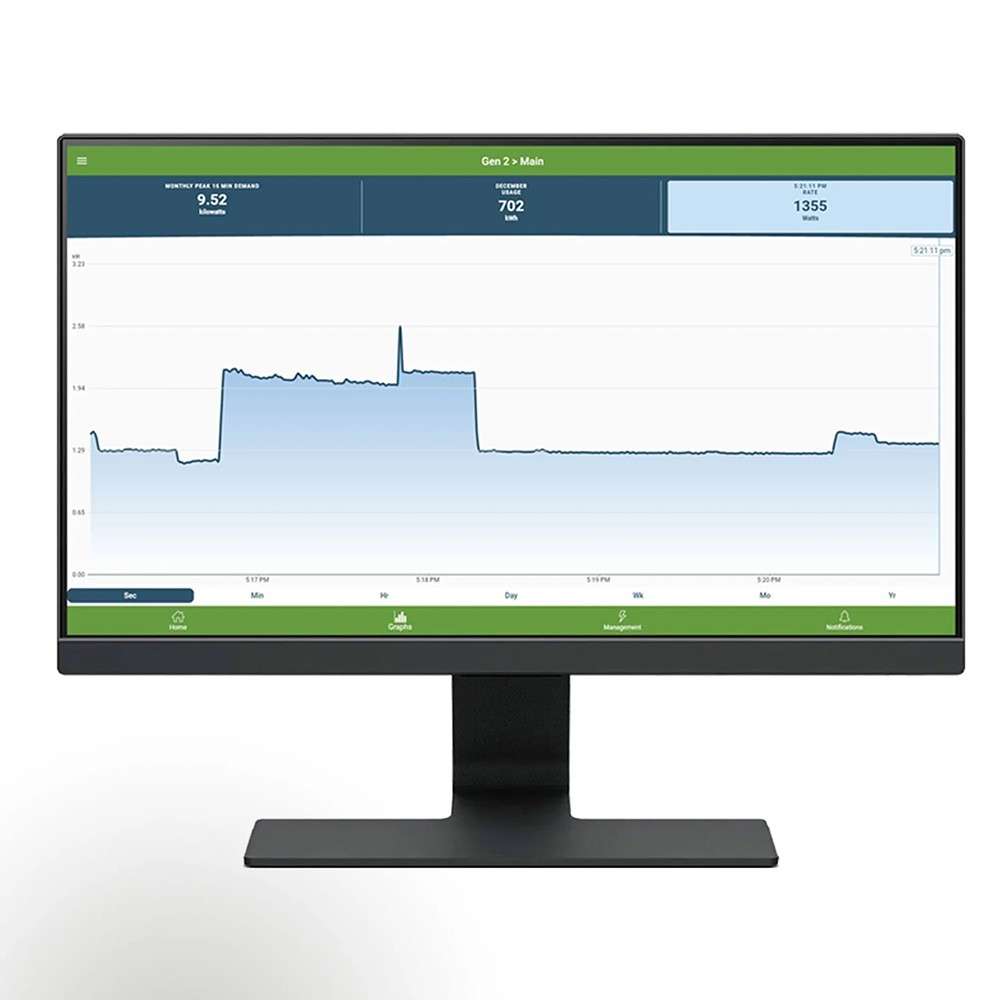

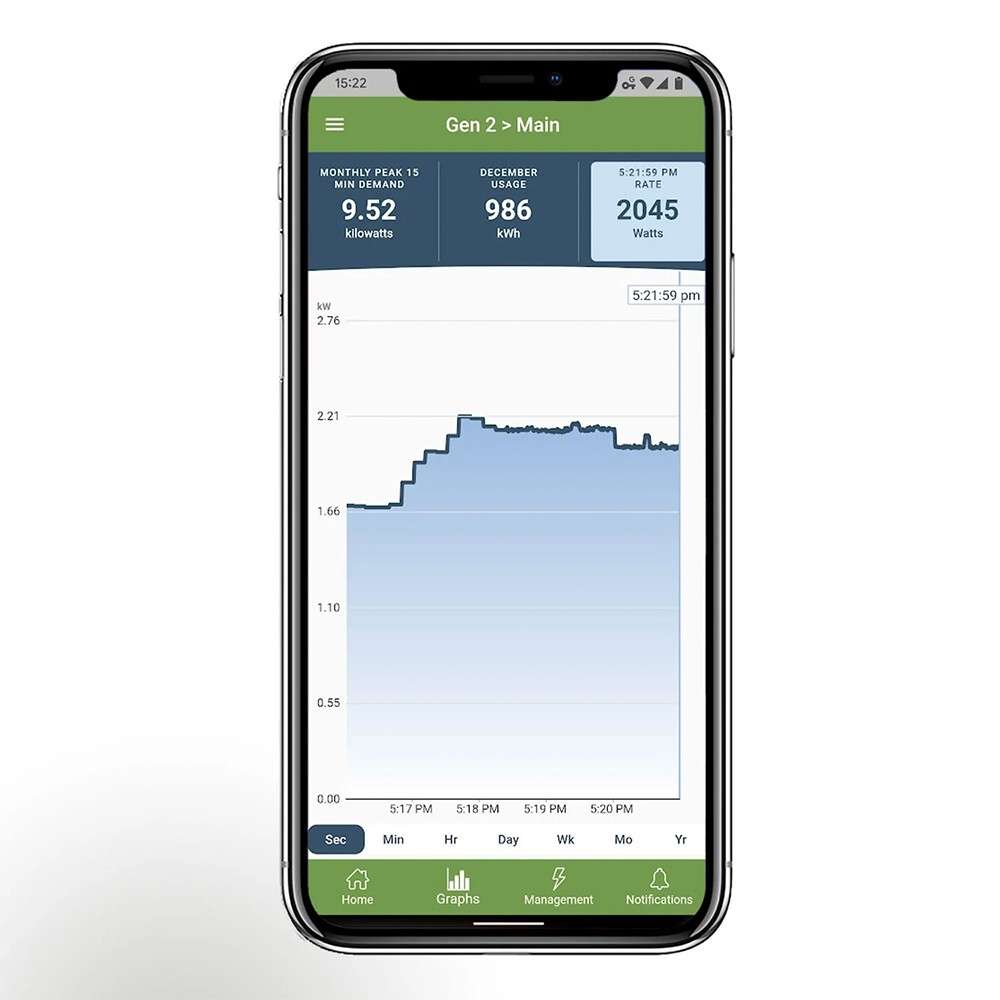

REAL-TIME ENERGY DATA
- REQUIRES 2.4 GHz WIFI WITH AN INTERNET CONNECTION to monitor energy use with iPhone / Android / Web app.
- Vue sensors provide 1-second data and are accurate from ±2%.
- The Vue is UL and CE Listed for your safety.
- Vue sensors provide 1-second data with an accuracy of ±2%. UL and CE Listings ensure the Vue's safety. Data is retained for 3 hours at 1-second intervals, 7 days at 1-minute intervals, and indefinitely at 1-hour intervals.
APPLIANCE MONITORING WITHOUT GUESSWORK

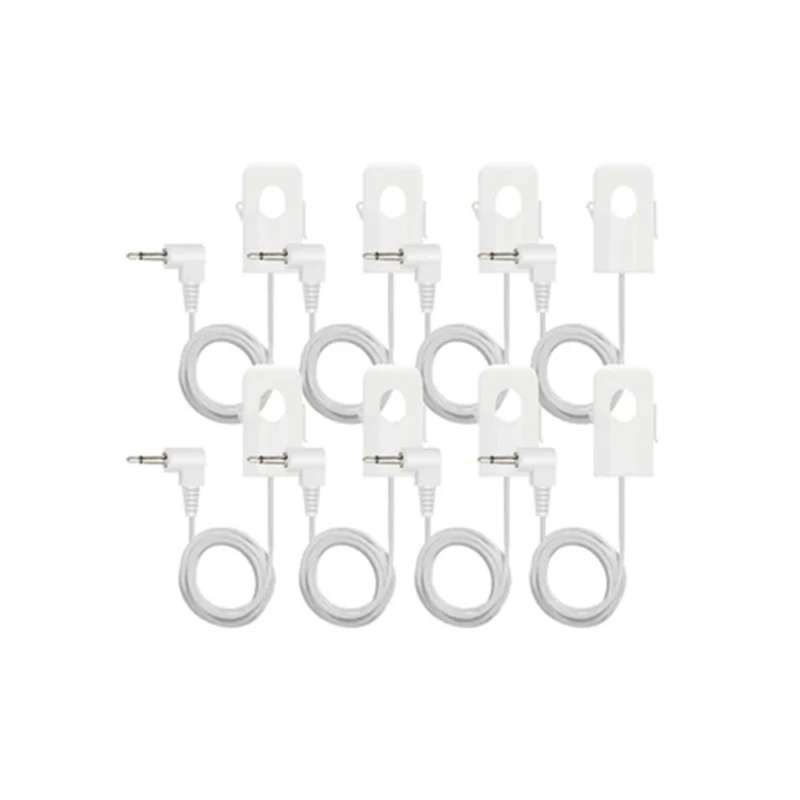

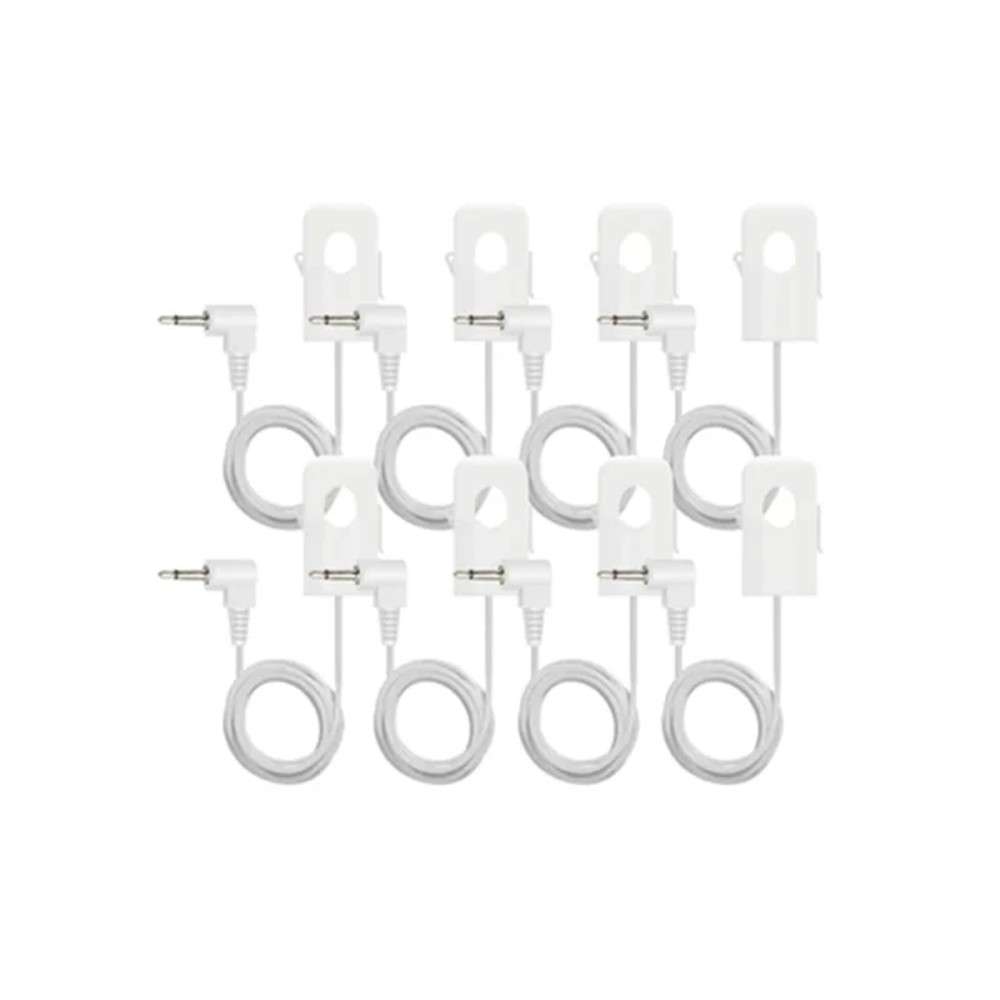

- Comes with eight 50A sensors to accurately monitor your air conditioner, furnace, water heater, washer, dryer, and more.

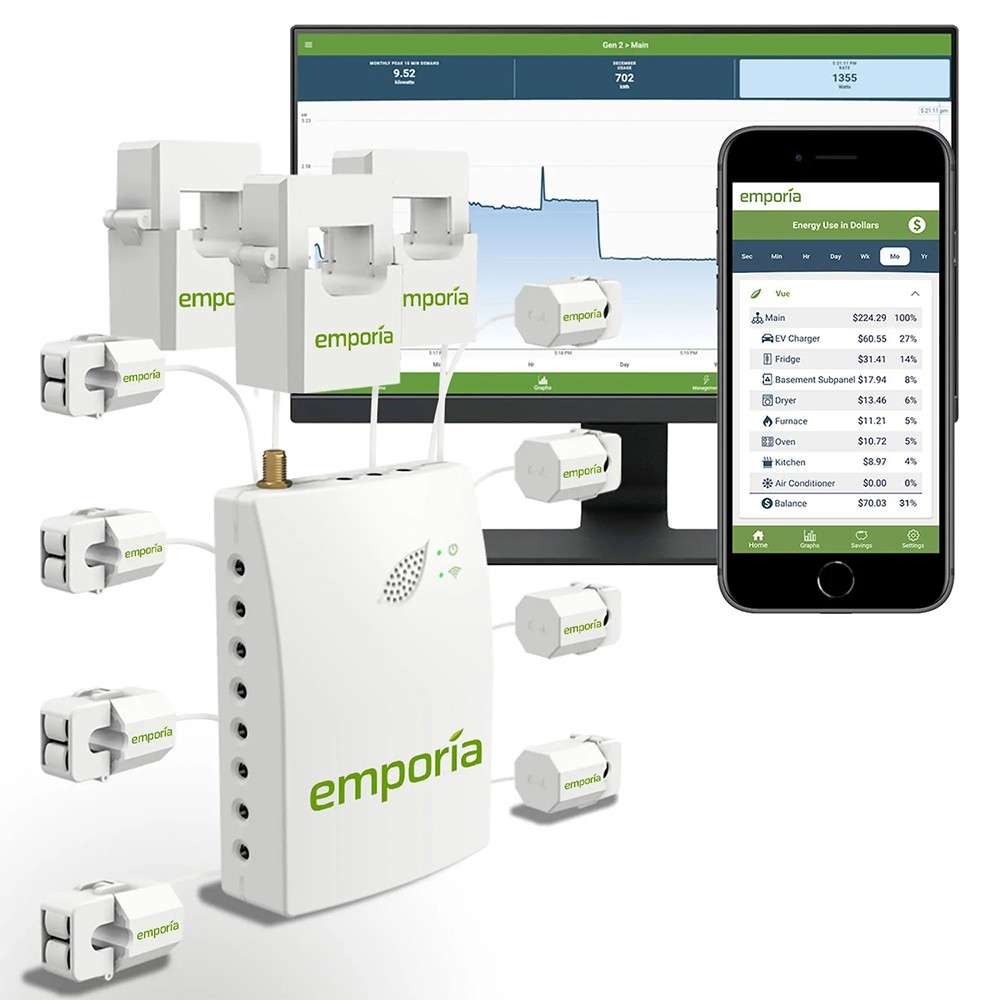

Bundle includes
- Gen 2 Vue Energy Monitor
- Three 200A current sensors for service mains
- Eight 50A current sensors for individual circuits
- Wire harness
- Extra wire & wire nuts
- Wi-Fi antenna & cable
Specifications
- Power the Vue directly from a 15A or 20A breaker
- Professional installation recommended
- Granular 1-second data interval
- Operates regardless of your utility
- Comes with eight 50A sensors to monitor individual circuits - Add up to eight more.
- Interact with your Emporia Vue through your mobile device or laptop
- Real-time monitoring of your energy usage and production with helpful units and measurements

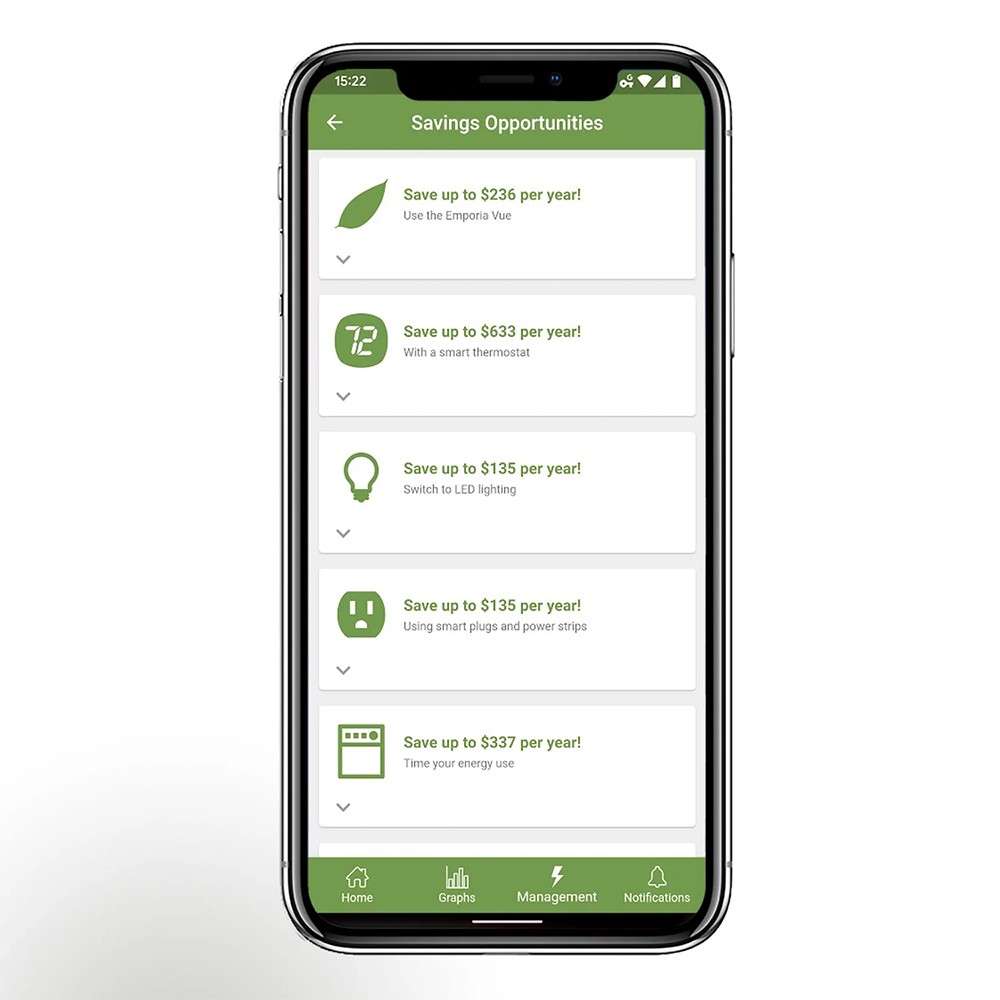

Actionable notifications will help you:
- Conserve energy
- Lower carbon emissions
- Increase grid reliability
- Generate energy savings
- Shift usage patterns from peak to off-peak
- Get clear calculations that show your savings when you perform actions recommended by the Emporia Vue

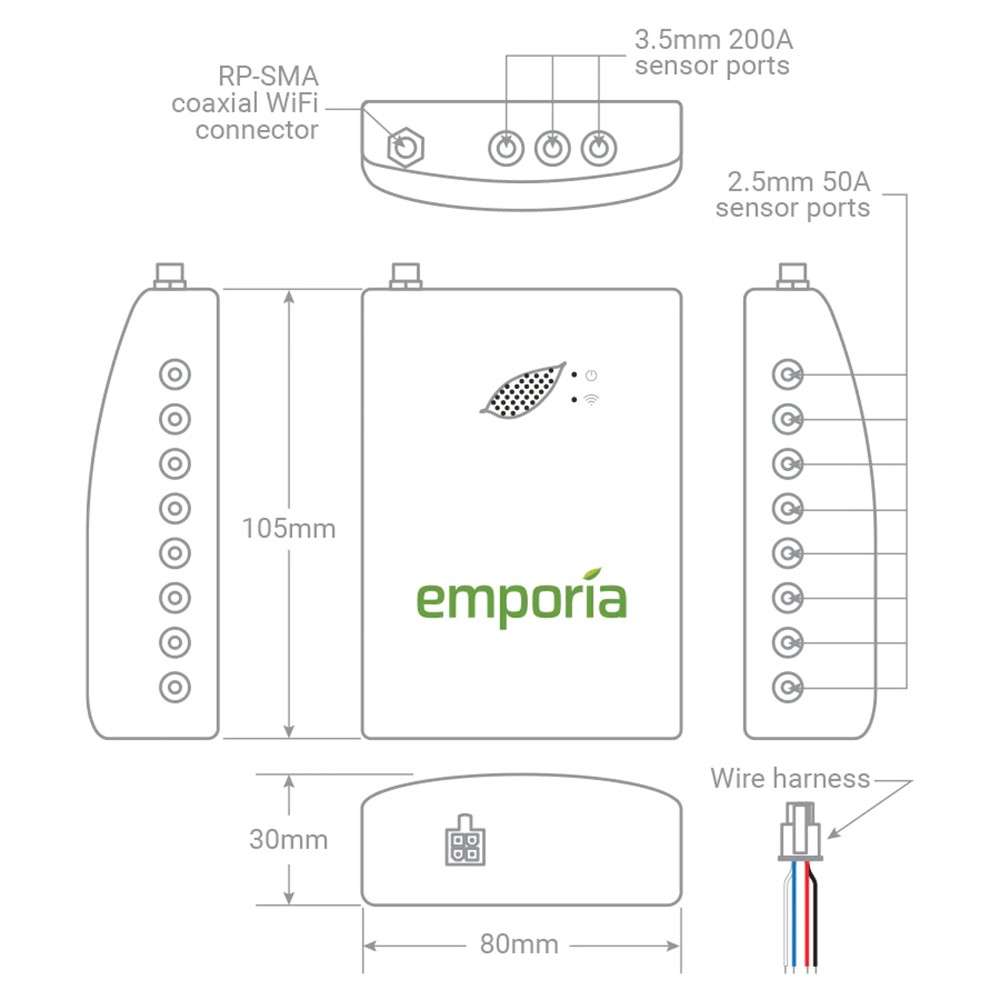

Vue energy monitor dimensions
- 4.1" x 3.1" x 1.1" (105mm x 80mm x 30mm)

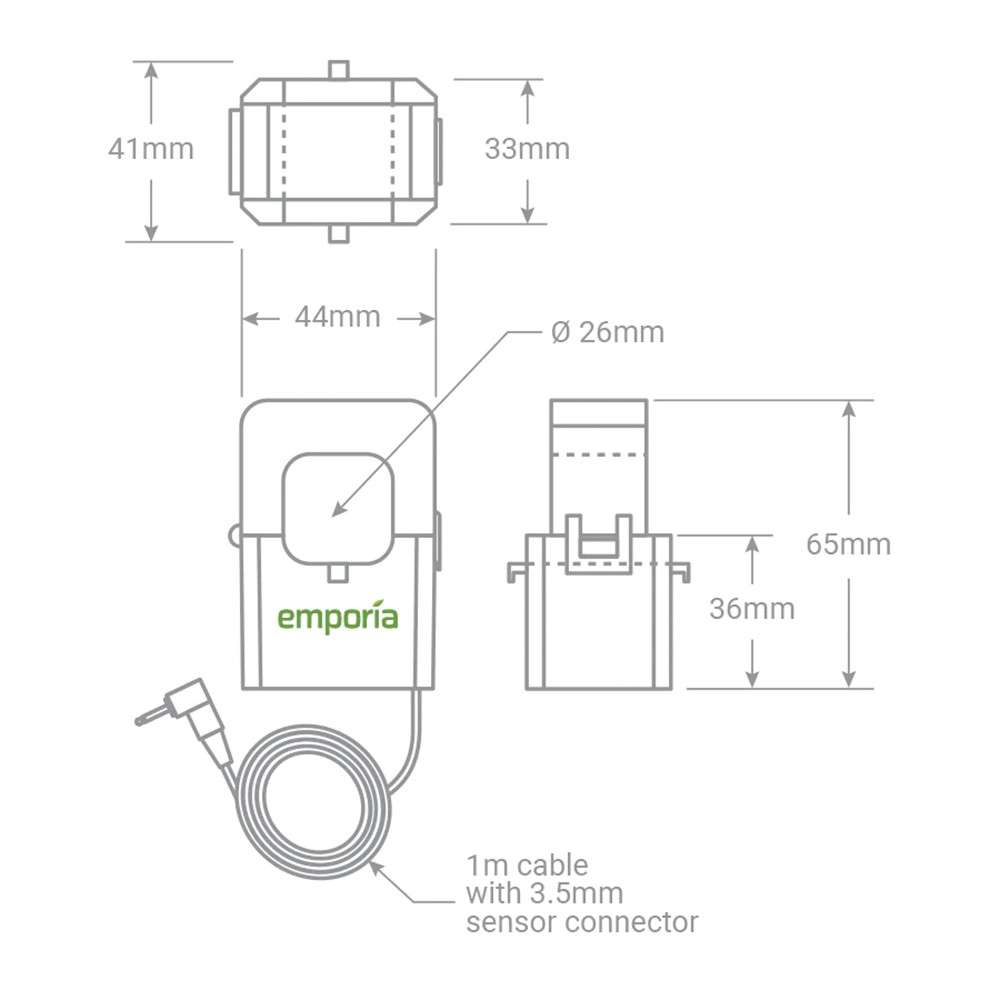

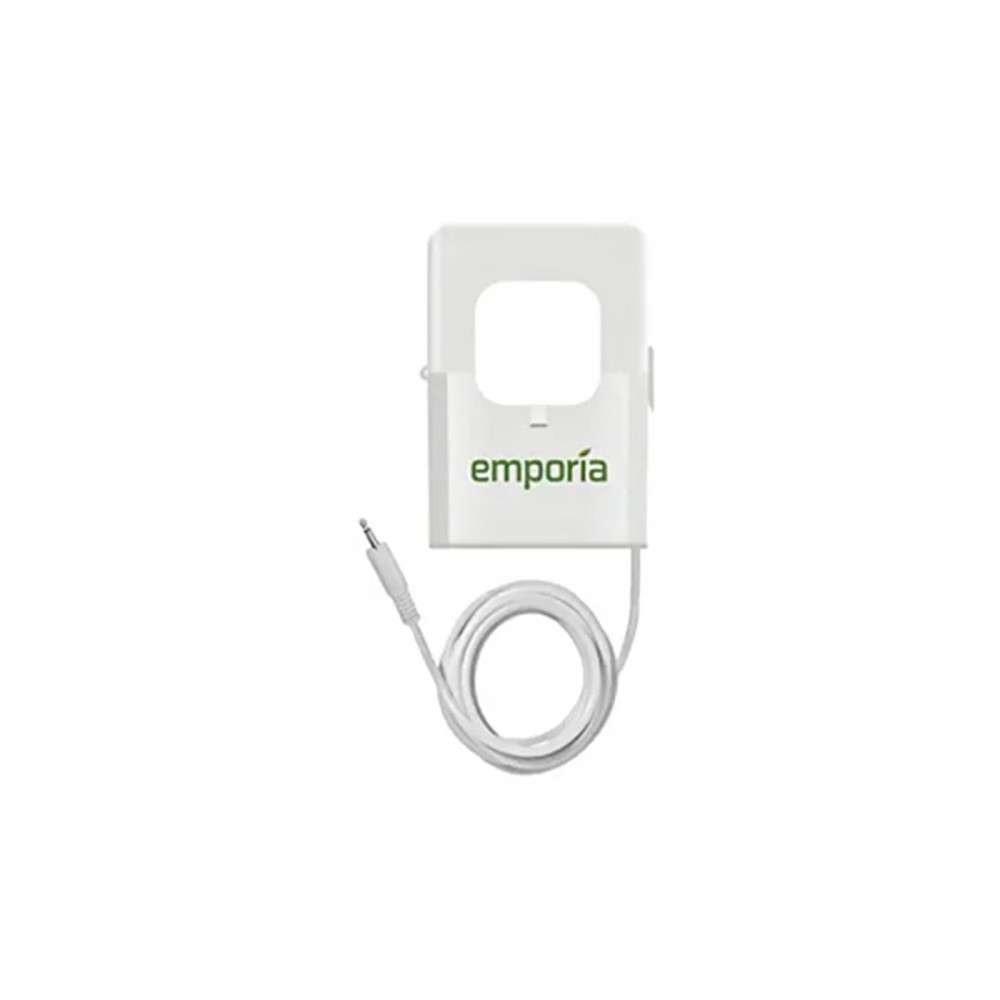

200A sensor dimensions
- 2.6" x 1.7" x 1.6" (65mm x 44mm x 41mm)
- Window diameter: 1" (26mm)
- Cable length: 39" (1m)
-Connector plug: 3.5mm

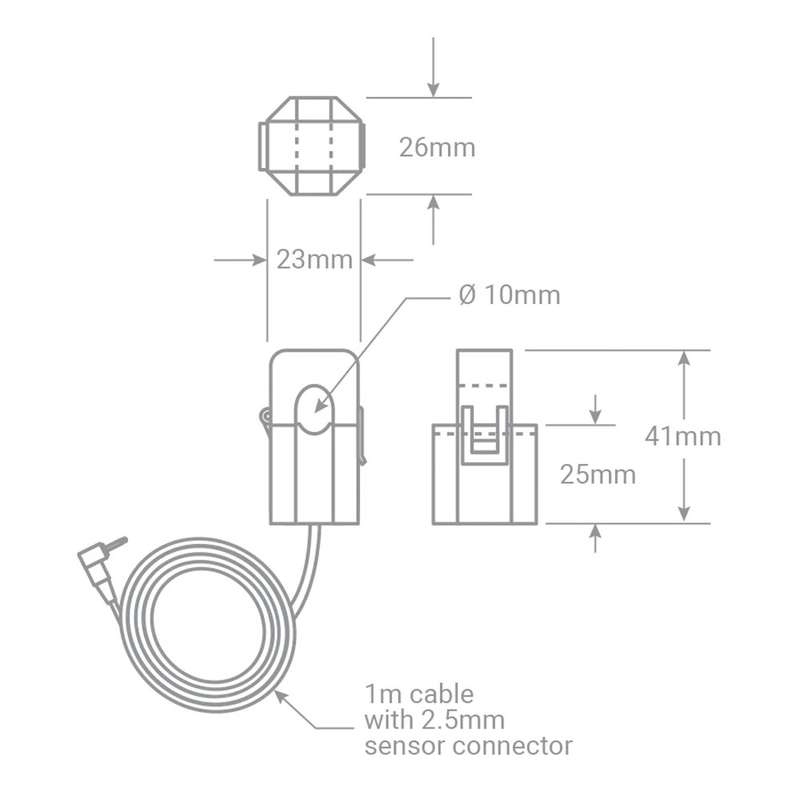

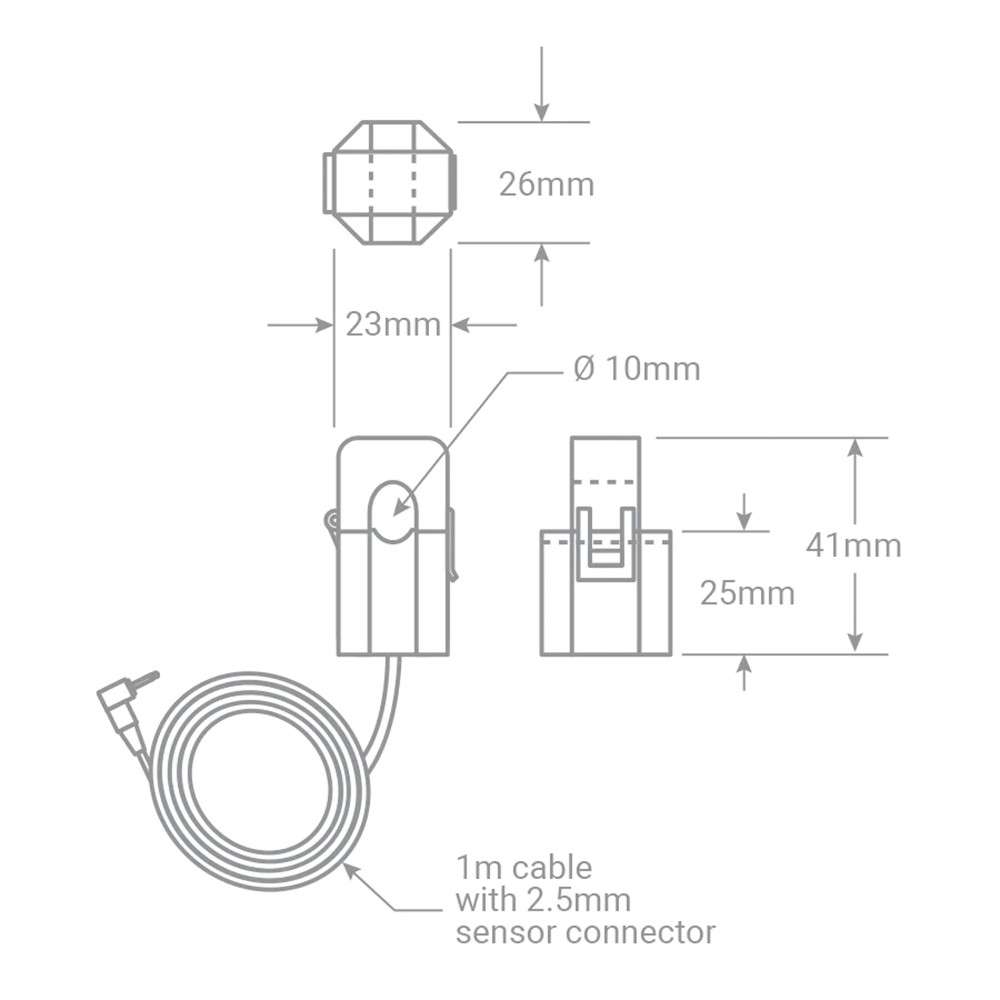

50A sensor dimensions
- 1.6" x 0.9" x 1" (41mm x 23mm x 26mm)
- Window diameter: 0.39" (10mm)
- Cable length: 39" (1m)
- Connector plug: 2.5mm
