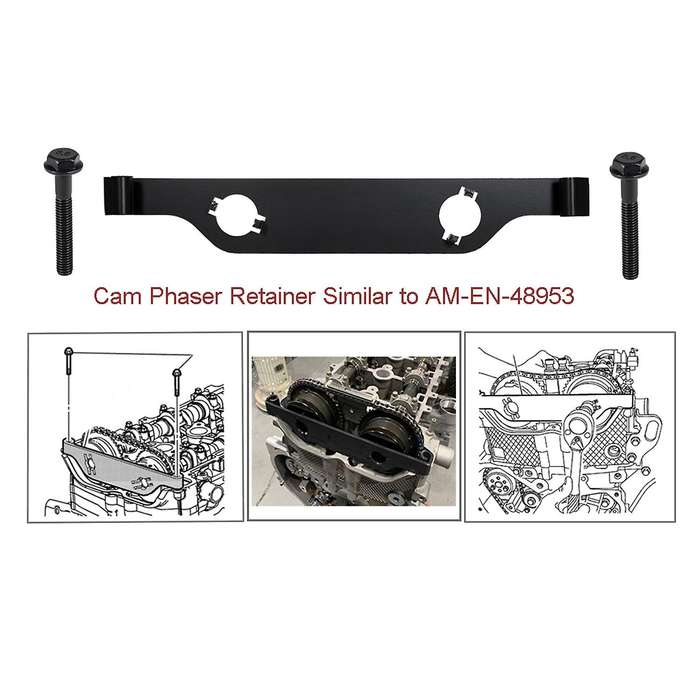

EN48953 Cam Phaser Retainer/Camshaft Actuator Locking Tool Holder 2.0L, 2.4L ECOTEC Engines for

Applications : Fit for 2010 , Ecotec\/2010 , 2010 Terrain, with 2.0L, 2.4L ECOTEC engines.Function : The cam phaser is an adjustable camshaft sprocket that can be turned by means of a computer-controlled servo. Custom-Developed Special Tool for .Use : Similar to EN48953. The camshafts on the ECOTEC engines must be held when removing or installing the cam phaser bolts, or the timing chain may slip and not keep its relationship to the phasers. EN-48953 mounts to the front of the block and its tabs engage both cam phasers to hold them so the phaser bolts may be serviced.Nice Design: Tool with a pass-through hole on each side allows a socket to be used to remove or install the phaser boltApplicationsEcotec\/2010 , 2010 , 2010 Terrain, fit with 2.0L, 2.4L ECOTEC enginesam-en-48953Tool Use :Remove timing chain guide bolt, timing chain guide plate and timing chain tensionerRotary intake camshaft actuator to install FTST-0004 locking toolFTST-0004 lock tool mounted to the cylinder cover and tighten to 10 N-m.If the intake camshaft actuator independently of the camshaft and not move the lock, the counterclockwise rotation of the intake camshaft,the locking tool fixing actuator, the actuator locking on the cam.Loosen intake camshaft actuator bolt and exhaust camshaft actuator bolt Remove FTST-0004Colour:BlackMaterial:steelPackage Contents:1 x Cam Retainer2 x Hexagon BoltsNOTE:Marking chain and actuator is very important in operating procedures.Before marking the actuator and chain, the oil must be removed from the camshaft actuator and timing chain .Only the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
