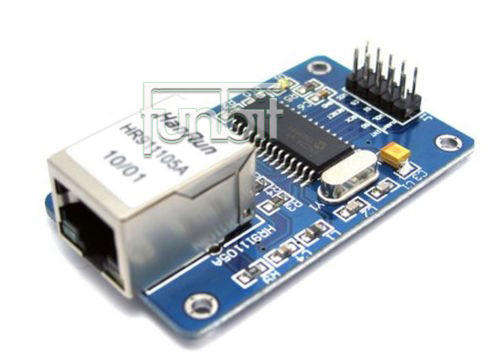

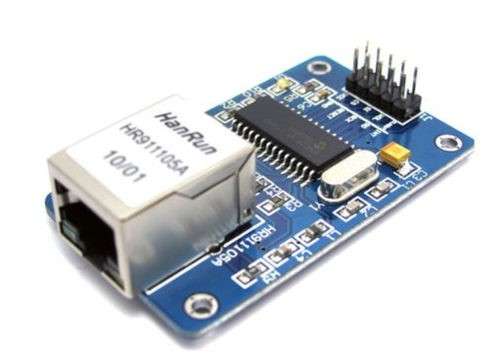

ENC28J60 Ethernet LAN Network Module for Arduino, AVR, PIC or STM32

ENC28J60 ETHERNET LAN NETWORK SHIELD MODULE

FOR ARDUINO, AVR, PIC OR STM32

Product information
The ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz. With this Ethernet Shield, your Arduino board can be used to connect to internet.

Specifications
ENC28J60 Ethernet chip in SOP28 package
SPI Interface
Open-source TCP/IP protocol stack as an Arduino library
Web client application to use Arduino as a distributed network sensor
1x10 connector, can easily be connected to MCU
Built-in isolation transformer RJ45 connectors HR911102A
Power and Activity LED
Power Supply: 3.3 V max
25MHz Crystal
PCB size: 56 x 34mm

Package includes
1 x ENC28J60 Ethernet LAN Network Module
