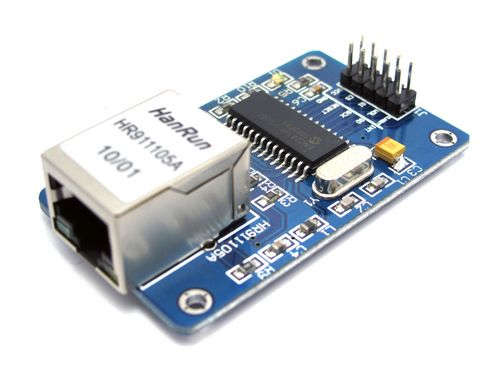

ENC28J60 LAN Ethernet Network Board Module SPI 25MHz 3.3V for Arduino AVR51 LPC STM32
ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz.
Connect the pins of the module to pins of your Arduino as in the table
MODULE | InduinoX / Arduino UNO (ATMEGA328) | Arduino MEGA |
VCC | 3.3V Pin | 3.3V Pin |
GND | GND | GND |
CS | SS - PIN 10 | SS - PIN 53 |
SI | MOSI - PIN 11 | MOSI - PIN 51 |
SCK | SCK - PIN 13 | SCK - PIN 52 |
WOL | PIN 5 | PIN 5 |
SO | MISO - PIN 12 | MISO - PIN 50 |
INT | Interrupt 0 - PIN 2 | Interrupt 0 - PIN 2 |
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
