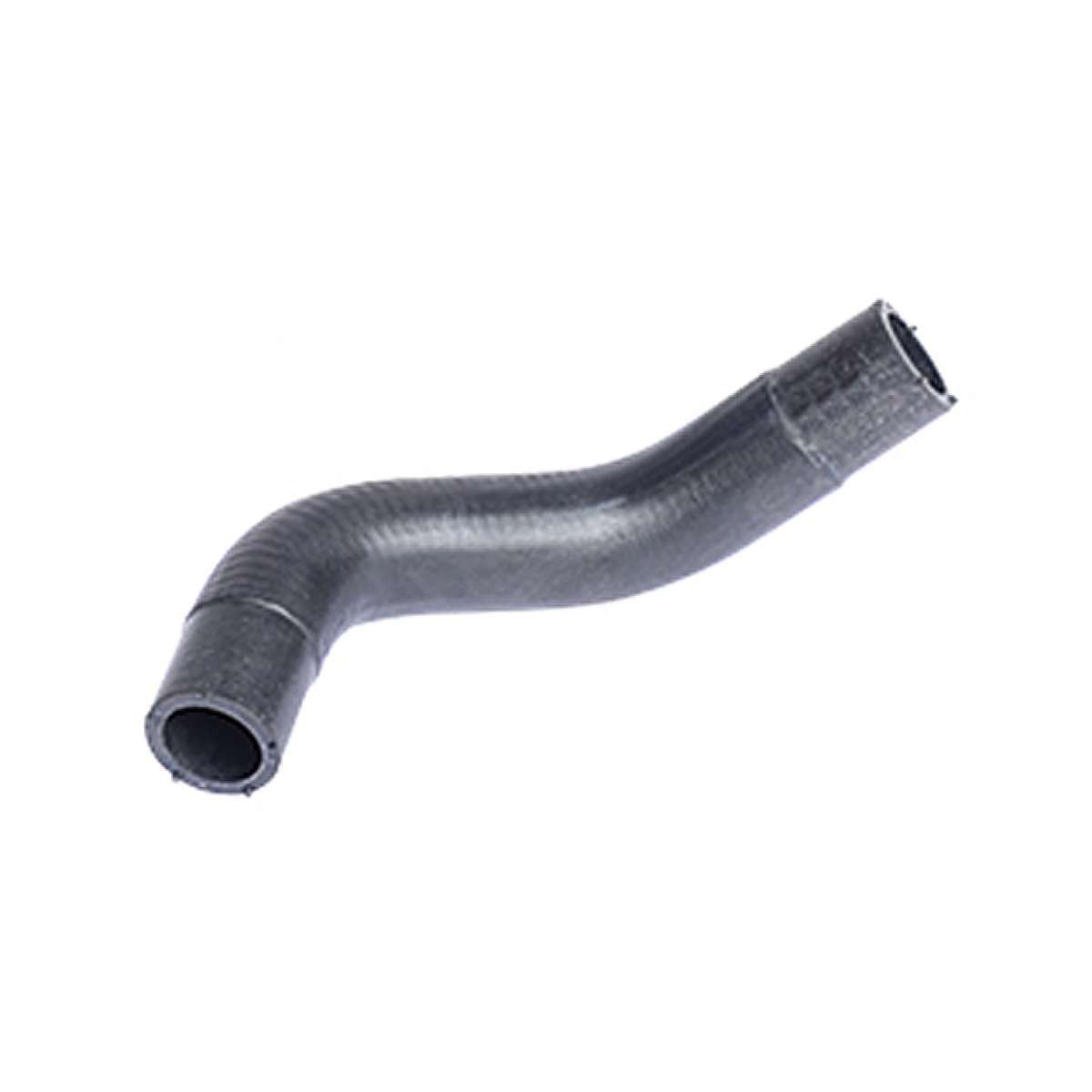

Name: Engine to Water Pump Bypass Hose for Ford Ranger & Transit - MAP-101230
SKU: MAP-101230
Price: 663.00 ZAR
Availability: InStock

Engine to Water Pump Bypass Hose for Ford Ranger & Transit - MAP-101230

New

10 available

R663.00

Shipping

Free shipping is available from Modern Auto Parts for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 4 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Modern Auto Parts3610

97.08 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

MAP-101230

Bob Shop ID

688316366

Vehicle Fitment & Part Details

This engine-to-water-pump bypass hose is listed for selected Ford Ranger TKE applications and carries Ford OE reference 1717636. It is made from EPDM and is identified as a cooling-system bypass hose from the engine to the water pump. Confirm compatibility by matching the listed fitment details and supplied OE reference numbers. Verify VIN/engine.

Key Details

SKU: MAP-101230
Alternate Search Reference: MAP101230
Component: Bypass Hose
OEM References: 1717636, BK3Q8A582AB, 2402065, BK3Q 8A582 AA
Alternate OEM Search Reference: BK3Q8A582AA
Primary Fitment: Ford Ranger (TKE), from 09/2011

Listing Highlights

EPDM construction.
Cooling bypass hose routed from the engine to the water pump.
Listed across 68 Ford Ranger and Transit catalogue applications.

Product Specifications

Specification	Details
Material	EPDM (ethylene propylene diene monomer rubber)
Cooling Hose	Bypass hose, from engine to water pump

Vehicle Fitment

This bypass hose is listed across 68 catalogue applications covering Ford Ranger TKE models from 2011 onwards, Ford Transit Bus, Van and Platform/Chassis models from 2011 to 2014, and Ford Transit V363 Bus, Van and Platform/Chassis models from 2013 to 2018. The construction-date restriction for this part starts in September 2011.

View Full Vehicle Fitment (68 applications)

Model	Chassis	Years	Engine	Power
Ranger	TKE	09/2011 onwards	2.2 TDCi (ENQW, GBVAJQW)	92 kW / 125 PS
Ranger	TKE	09/2011 onwards	2.2 TDCi 4x4 (ENQW, GBVAJQW)	92 kW / 125 PS
Ranger	TKE	09/2011 onwards	2.2 TDCi 4x4 (GBVAJQJ, ENQJ)	110 kW / 150 PS
Ranger	TKE	09/2011 onwards	2.2 TDCi (ENPF, GBVAJPF)	88 kW / 120 PS
Ranger	TKE	11/2011 onwards	2.2 TDCi (GBVAJQJ, ENQJ)	110 kW / 150 PS
Ranger	TKE	05/2015 onwards	2.2 TDCi (GBVAJQJ, T22DD0P)	118 kW / 160 PS
Ranger	TKE	05/2015 onwards	2.2 TDCi 4x4 (GBVAJQJ, T22DD0P)	118 kW / 160 PS
Ranger	TKE	05/2015 onwards	2.2 TDCi (T22DD0P)	96 kW / 131 PS
Ranger	TKE	05/2015 onwards	2.2 TDCi 4x4 (T22DD0P)	96 kW / 131 PS
Ranger	TKE	09/2011 onwards	3.2 TDCi 4x4 (SA2S, SA2W, ENSA, SAFA, P5-AT, SA2R)	147 kW / 200 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	10/2011-08/2014	2.2 TDCi (DRFA, DRFB, DRFC, DRFD, DRFE)	74 kW / 100 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	10/2011-08/2014	2.2 TDCi (CYFD, CYFA, CYFB, CYFC)	92 kW / 125 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	10/2011-08/2014	2.2 TDCi RWD (DRRA, DRRB, DRRC)	74 kW / 100 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-12/2014	2.2 TDCi RWD (CYRA)	92 kW / 125 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-08/2014	2.2 TDCi (P8FA, P8FB)	63 kW / 85 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-08/2014	2.2 TDCi (QVFA)	81 kW / 110 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-08/2014	2.2 TDCi (QWFA)	96 kW / 130 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-08/2014	2.2 TDCi (UHFA, UHFB, UHFC, PGFA, PGFB)	103 kW / 140 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-08/2014	2.2 TDCi (SRFA, SRFB, SRFC, SRFD, SRFE)	85 kW / 115 PS
Transit Bus	FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _	09/2011-08/2014	2.2 TDCi RWD (USRA, USRB)	100 kW / 135 PS
Transit Van	FA_ _	10/2011-08/2014	2.2 TDCi (DRFA, DRFB, DRFC, DRFD, DRFE)	74 kW / 100 PS
Transit Van	FA_ _	10/2011-08/2014	2.2 TDCi RWD (DRRA, DRRB, DRRC)	74 kW / 100 PS
Transit Van	FA_ _	10/2011-08/2014	2.2 TDCi (CYFD, CYFA, CYFB, CYFC)	92 kW / 125 PS
Transit Van	FA_ _	09/2011-12/2014	2.2 TDCi RWD (CYRA)	92 kW / 125 PS
Transit Van	FA_ _	10/2011-08/2014	2.2 TDCi RWD (CVRA, CVRB, CVRC)	114 kW / 155 PS
Transit Van	FA_ _	10/2011-08/2014	2.2 TDCi 4x4 (CYRB, CYRC)	92 kW / 125 PS
Transit Van	FA_ _	09/2011-08/2014	2.2 TDCi (QVFA)	81 kW / 110 PS
Transit Van	FA_ _	09/2011-08/2014	2.2 TDCi (QWFA)	96 kW / 130 PS
Transit Van	FA_ _	09/2011-08/2014	2.2 TDCi (P8FA, P8FB)	63 kW / 85 PS
Transit Van	FA_ _	09/2011-08/2014	2.2 TDCi (UHFA, UHFB, UHFC, PGFA, PGFB)	103 kW / 140 PS
Transit Van	FA_ _	09/2011-08/2014	2.2 TDCi (SRFA, SRFB, SRFC, SRFD, SRFE)	85 kW / 115 PS
Transit Van	FA_ _	10/2011-08/2014	2.2 TDCi RWD (USRA, USRB)	100 kW / 136 PS
Transit Platform/Chassis	FM_ _, FN_ _, FF_ _	10/2011-08/2014	2.2 TDCi (DRFA, DRFB, DRFC, DRFD, DRFE)	74 kW / 100 PS
Transit Platform/Chassis	FM_ _, FN_ _, FF_ _	10/2011-08/2014	2.2 TDCi RWD (DRRC, DRRA, DRRB)	74 kW / 100 PS
Transit Platform/Chassis	FM_ _, FN_ _, FF_ _	10/2011-08/2014	2.2 TDCi (CYFD, CYFA, CYFB, CYFC)
