English Electronic Intelligence Garden Irrigation System Timer Controller Water Programs Connection

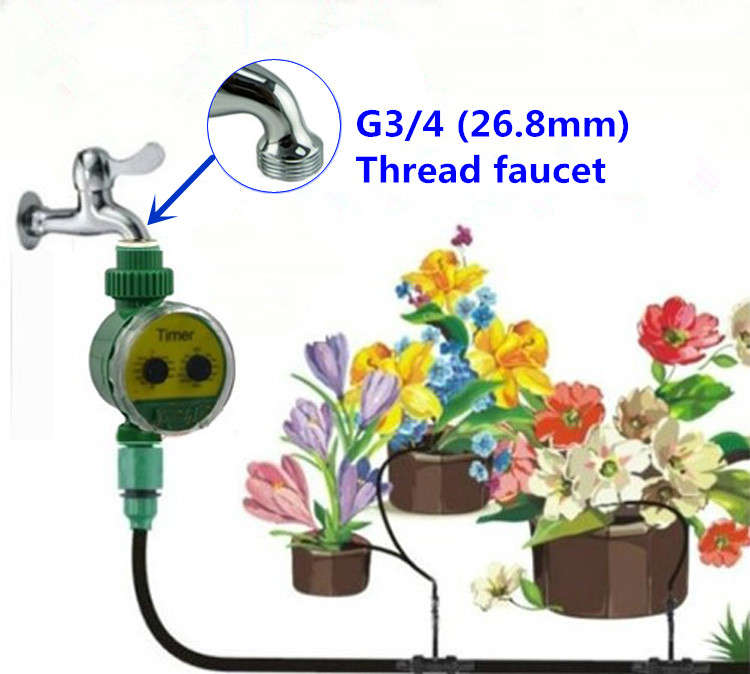

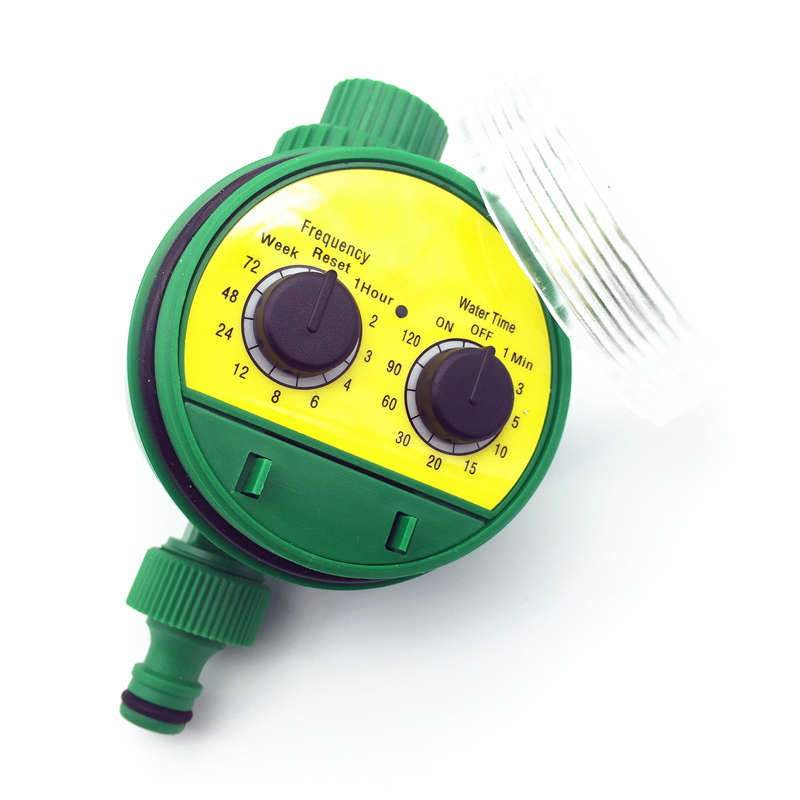

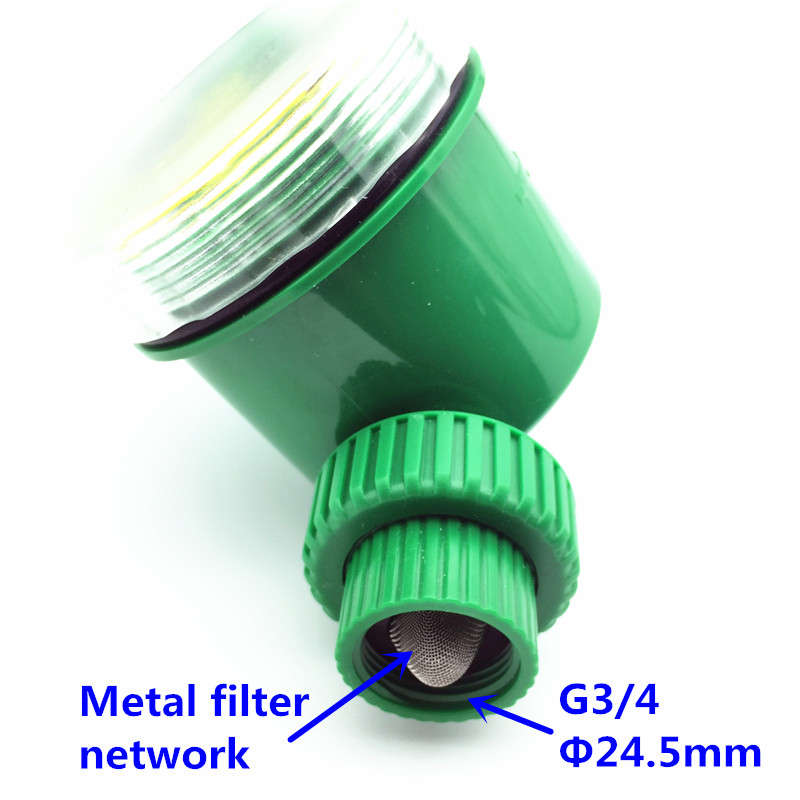

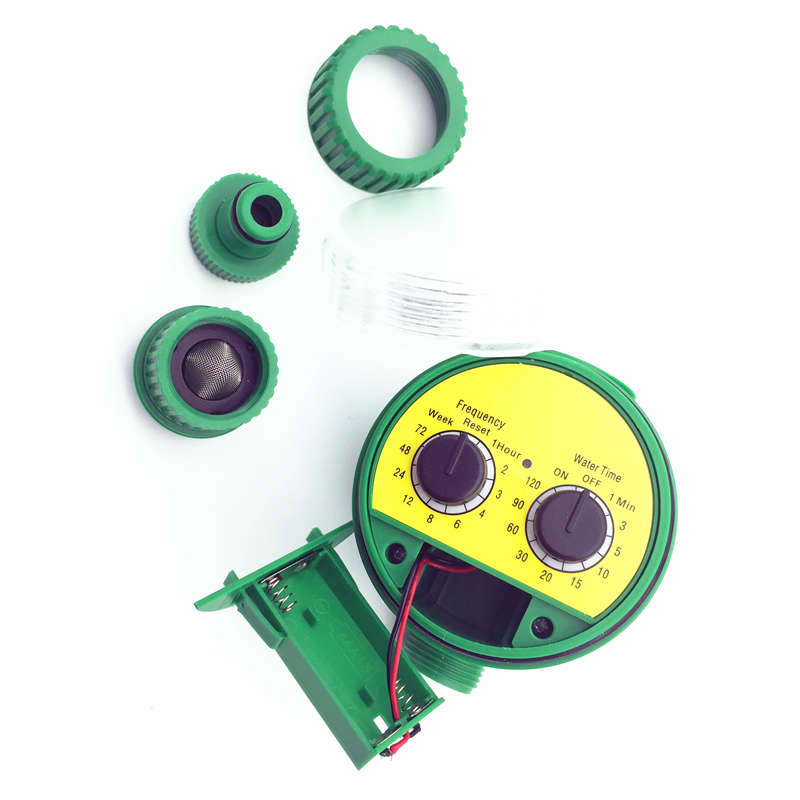

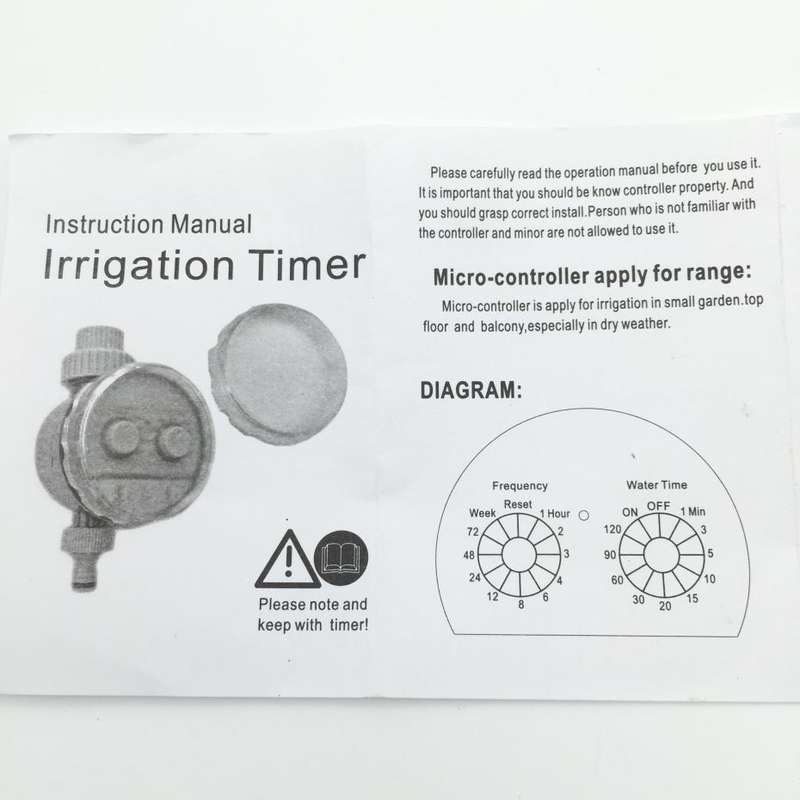

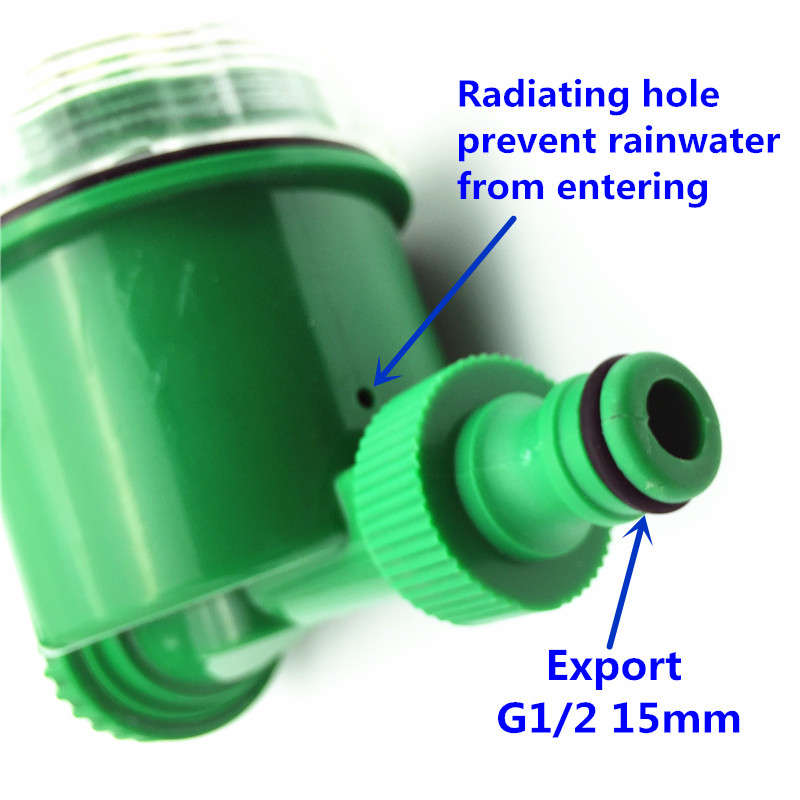

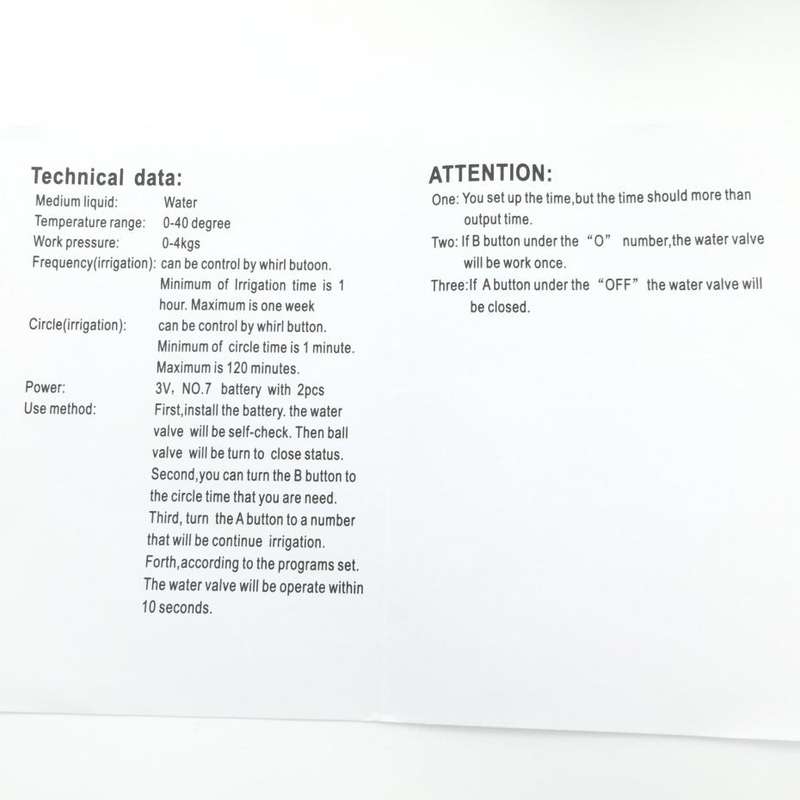

Product Description: This is a new home irrigation water garden Timer controller; You can configure the program according to your needs. Features: -100% brand new and high quality -This timer irrigation should be used only for control of irrigation systems in the domestic sector, for example, lawn sprinklers, sprinklers and drip home, etc. Specification: Water connection: G3 / 4 Faucet thread Hose connection: 15 mm (1/2 ) - suitable for all known systems plug-in Water pressure: 0.5- 4kgs Water temperature: 0- 40 degrees medium irrigation: fresh clear water Batteries: 2x1.5 V AAA batteries (not included) Package includes: 1 X Garden Irrigation Controller (batteries not included) Note: Vertical mounting, because there is a bottom vents, if into the rain will lose the ability to work. Micro-controller apply for range: Micro-controller is apply for irrigation in small garden. top floor and balcony,especially in dry weather. Technical data: Medium liquid: Water Temperature range: 0-40degree Work pressure: 0.5-4kgs Frequency(irrigation): can be control by whirl button. Minimum of Irrigation time is 1hour. Maximum is one week Water time(irrigation): can be control by whirl button. Minimum of circle time is 1 minute. Maximum is 120minutes. Power: 3V,NO.7 battery with 2pcs Use method: First,install the battery. the water valve will be self-check. Then ball valve will be turn to close status. Second,you can turn the B button to the cycle time that you are need. Third,turn the A button to a number that will be continuous irrigation. Forth,according to the programs set. The water valve will be operate within 10 seconds. ATTENTION: One: You set up the time,but the time should more than output time. Two: If B button under the 0Reset number,the water valve will be work once. Three: If A button under the OFF the water valve will be closed. Details pictures:
