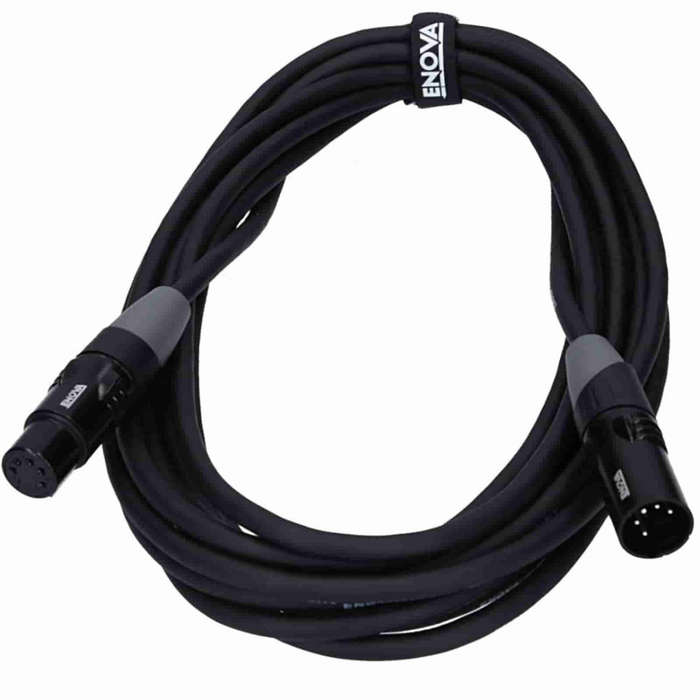

The Enova Solutions 1m XLR male 5-pin to XLR female 5-pin DMX cable represents the pinnacle of professional audiovisual connectivity. Crafted with meticulous attention to detail, this cable boasts high-quality ENOVA XLR connectors on both ends, constructed from durable metal with integrated strain relief and cable bend protection sleeves. This design ensures longevity and reliability in even the most demanding environments.
Measuring 1 meter in length, this cable strikes the perfect balance between flexibility and convenience, ideal for use in compact setups or where precise cable management is required. The 6.5mm diameter provides robustness without sacrificing maneuverability, while the pre-wired 5-core configuration minimizes crosstalk and ensures optimal signal transmission.
Each conductor within the cable is meticulously insulated with PE material, color-coded for easy identification (blue + green and red + white), and soldered with additional insulation for enhanced durability. The conductor cross-section, featuring 2x 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) of high-quality oxygen-free copper (OFC), guarantees exceptional conductivity and signal integrity.
Moreover, this cable features double shielding to fortify it against external electromagnetic interference, making it suitable for use in diverse environments ranging from concert halls to outdoor stages. With a working temperature range of -20°C to +60°C, it remains reliable even in challenging conditions.
The Enova Solutions DMX cable is not only a technical marvel but also environmentally conscious, meeting ROHS standards (EN62321-1) for the restriction of hazardous substances. It finds its place in various applications, including DJ setups, lighting rigs, system integration projects, outdoor events, and broadcast environments.
Whether you're a seasoned professional or a budding enthusiast, the Enova Solutions 1m XLR male 5-pin to XLR female 5-pin DMX cable delivers unparalleled performance, durability, and peace of mind for all your audiovisual connectivity needs.
- Brand: Enova Solutions
- Model: ENOVA-DMX-Kabel-EC-L1-BULK-100
- Series: L1-Serie
- Connector Type: XLR, XLR female 5-pin, XLR male 5-pin
- Cable Type: XLR female to male
- Cable Length: 1 meter
- Cable Diameter: Ø 6.5 mm
- Wire Size: Ø 24 AWG (0.22 mm²)
- Number of Contacts: 5
- Gender: Female to Male
- Cable Surface Color: Black
- Conductor Material: Oxygen-Free Copper (OFC)
- Conductor Cross-Section: 2x 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands)
- Conductor Insulation Material: PE (Polyethylene)
- Conductor Insulation Colors: Blue + Green, Red + White
- Shielding: Double Shielded
- Working Temperature Minimum: -20°C
- Working Temperature Maximum: +60°C
- Conductor D.C.R. (Direct Current Resistance) per 1km: <80 Ohms
- Shield D.C.R. per 1km: <27 Ohms
- Compliance: ROHS according to EN62321-1
- Applications: DJ, Lighting Technician
- Markets: Event Production, Lighting, System Integrator, Outdoor Lighting, Broadcast
