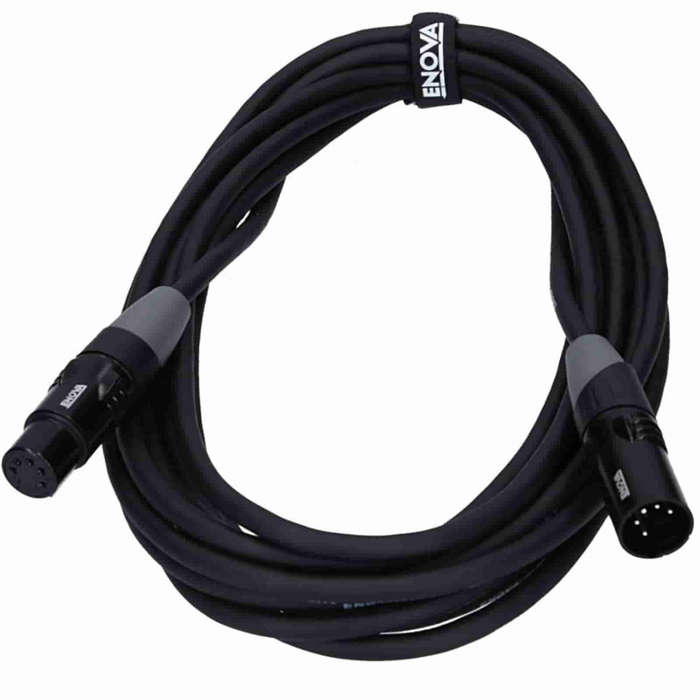

Enova Solution EC-L1-XLFM5-3

Technical Information:

• High-quality ENOVA XLR connectors with metal construction and strain relief
• Professional pre-assembled microphone cables with additional insulation over each conductor during soldering
• 5-core pre-wired cable design with different torsional density to avoid crosstalk
• Cable diameter of 6.5mm with a flexible and robust black outer jacket
• Conductor cross-section of 2x 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) made from high-quality oxygen-free copper (OFC)
• Conductor insulation made of PE material and color-coded for easy identification (blue + green and red + white)
• Double shielded DMX cable to enhance resistance to external electromagnetic interference
• Suitable for mobile and activity cable applications
• Conductor D.C.R. per 1km: <80 Ohms
• Shield D.C.R. per 1km: <27 Ohms
• Working temperature range: -20°C to +60°C

Specifications:

• Brand: Enova Solutions
• Series: L1-Serie
• Connector Type: XLR, XLR female 5-pin, XLR male 5-pin
• Cable Type: XLR female to male
• Number of Contacts: 5
• Gender: Female to Male
• Cable Surface Color: Black
• Cable Length: 3 meters
• Cable Diameter: Ø 6.5 mm
• Wire Size: Ø 24 AWG (0.22 mm²)
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +60°C
• Compliance: ROHS according to EN62321-1
• Country of Origin: China
• Applications: DJ, Lighting Technician
• Markets: Event Production, Lighting, System Integrator, Outdoor Lighting, Broadcast
