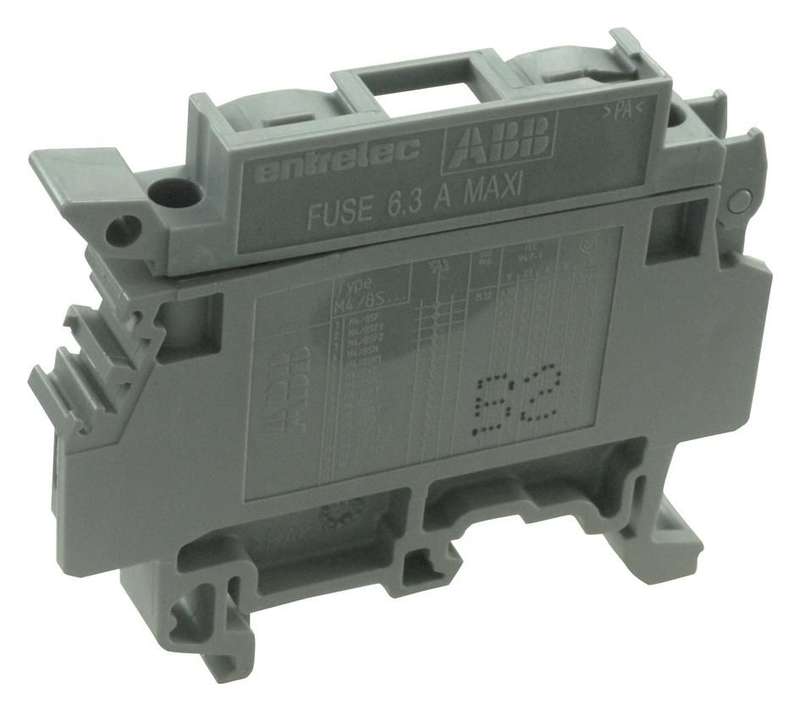

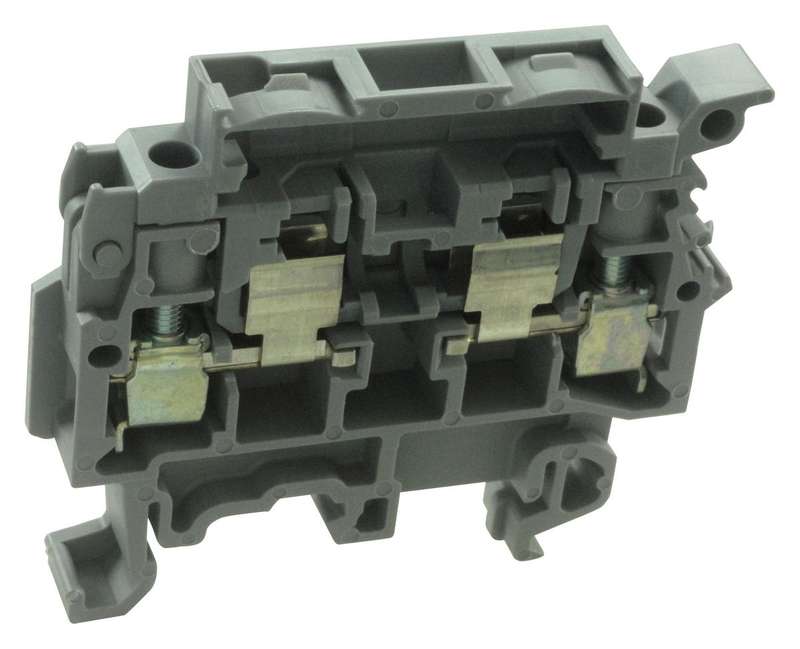

Entrelec (011565725) Fused Terminal Block, 2 Ways, 22AWG to 12AWG

Fused Terminal Block, 2 Ways, 22AWG to 12AWG, 4 mm², Screw, 6.3 A, 630 VProduct OverviewThe 11565725 from Entrelec UK is a 2 position screw clamp terminal block fuse.This terminal block is suitable for wire size ranging from 22AWG to 12AWG andused with 5mm x 20mm and 5mm x 25mm fuses.Gray colour housingDimension of fuse terminal is 41mm x 56.5mm x 8mm (D x H x W)Net weight of 14gPollution degree is 3Ambient operation air temperature range from -55°C to 110°CPolyamide (PA) insulating materialSpacing of 8mmConforms to CE 1SND225007C1000 standardCertified GOST 1SND161005A1103 standardUL94 V-0 flammability ratingApplicationsIndustrialProduct InformationWire Size (AWG): 22AWG to 12AWGWire Size AWG Min: 22AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mm²Wire Connection Method: ScrewRated Current: 6.3ARated Voltage: 630VFuse Size Held: 5mm x 20mm, 5mm x 25mmProduct Range: -
