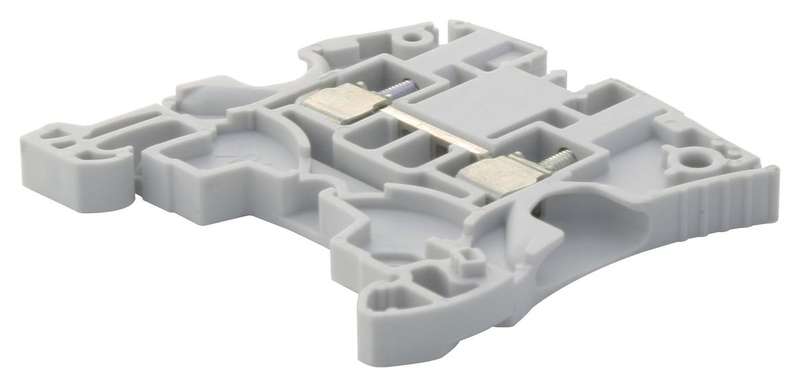

DIN Rail Mount Terminal Block, 2 Ways, 24 AWG, 12 AWG, 4 mm, Screw, 32 AProduct OverviewThe 1SNK505010R0000 is a 2-way ZS4 grey Terminal Block with screw clamp. Itsaves space by connecting conductors up to 4mm² 12AWG in just 5.2mm spacing.Feed-through functionDimension of fuse terminal is 47.3mm x 53mm x 5.2mm (D x H x W)Net weight of 8.8gRated voltage is 1000V and rated current is 32AAmbient operation air temperature range from -55°C to 110°CPolyamide (PA) insulating materialPollution degree is 3UL 1059 recognized and CSA certifiedFlammability rating meets UL94 V-0, IP20 rated and NEMA1 protectionShort circuit current rating (SCCR) of 100KAApplicationsIndustrialProduct InformationWire Size AWG Min: 24AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mmWire Connection Method: ScrewRated Current: 32ARated Voltage: 1kVNo. of Levels: 1Product Range: SNK Series
