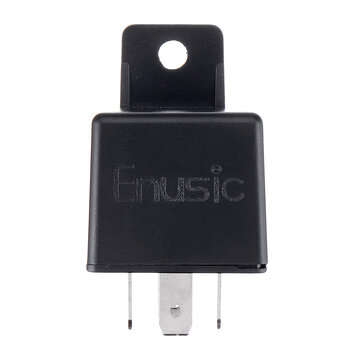

Description: GPS and Russian GLONASS dual-mode positioning a?? Real-time tracking ?a??against pseudo base-station&detect a?? Vibration/Displacement/Low battery/Power off/over speed alert a?? Main power cut off alert ?a?? Geo-fence a?? History Route a?? Cut and resume?Fuel?Pump?remotely ?a?? AGPS locating Functions and Product parameters (Relay GPS Tracker ?CJ720/ Off petrol and electricity) ?
Specifciation: Terminal size
| 31x 31x 57mm
|
System Language
| Chinese/English
|
Net Weight
| 50g
|
Backup Battery
| 3.7V 100mAh
|
Network
| GSM/GPRS,
|
Network Band
| 850/900/1800/1900Mhz
|
Support
| 4-frequency?GSM?850/900/1800/1900?MHz?which?can?work?worldwide
|
GPS module
| MTK2503
|
GPS sensitivity
| -159dBm
|
GPS position accuracy
| 10m
|
First positioning time
| Cold start 45-120 seconds
|
Warm start
| 35 seconds
|
Hot start
| 1 second
|
Operating voltage
| 10-50V input
|
Battery
| Built-in lithium battery 3.7V 110mAh
|
Storage temperature
| -40?ﾣC to +85?ﾣC
|
Operating temperature
| -20?ﾣC to +55?ﾣC
|
Humidity
| 5% - 95% Non-solidified?
|
| Power Consumption | The power consumption is about 40 mA at work, and 1 mA at sleep. The instantaneous current of the fuel and electricity part is up to 45A.
|

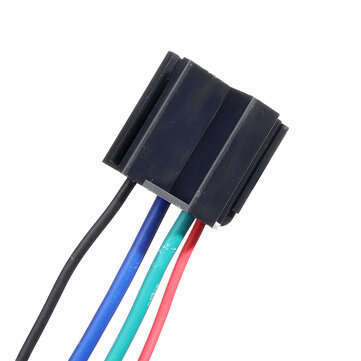

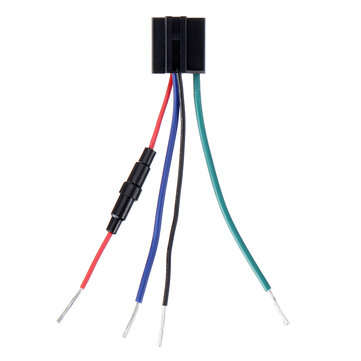

Special Note: FUEL?Pump line search Need professionals. Or auto mechanic repair shop to help find. Power supply,?Fuel?Pump?cut control line (1) The standard power supply of this equipment is 10V-50VDC, the red line is the positive pole of the power supply,
and the yellow (black) is the negative pole of the power supply;
when installing the negative pole of the power supply, please select the grounding or grounding separately,
and do not share with other ground lines; (2) The?Fuel?Pump?cutoff control line (green/blue line) is connected to the?Fuel?Pump?line. Send Command ?

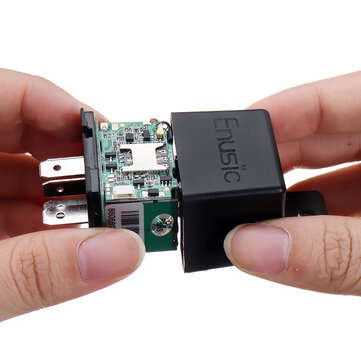

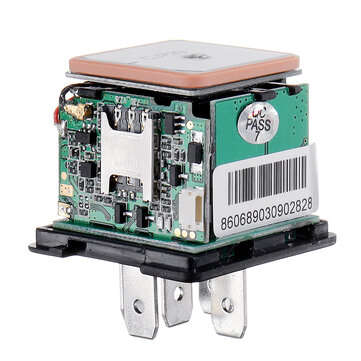

How to use: 1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up
(blue light flashes, green light flashes,) 2.Set APN: APN123456 CMNET
(please use your local APN instead of CMNET,if you do not know the APN content,you should contact your SIM card supplier) 3. Set admin number by sending a SMS command to the SIM card inside device For example: admin123456+86186******(+86186*****should be youe phone number) 4.Connect cable follow the picture,(Fuel?Pump?cut test wiring video: )
User Manual: ?
Package Included: 1 X?
| Relay GPS Tracker
|
1 X?
| Manual
|
