Epcos (B57364S0259M000) Thermistor, ICL NTC, 2.5 ohm, -20% to +20%

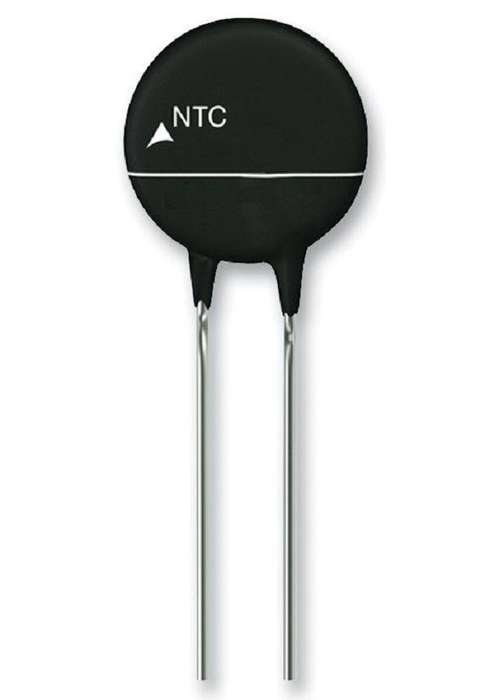

Thermistor, ICL NTC, 2.5 ohm, -20% to +20%, Radial Leaded, B57364 SeriesProduct InformationProduct Range: B57364Disc Size: 21mmZero Power Resistance at 25°C: 2.5ohmApprovals: ULMaximum Steady State Current at 25°C: 11AProduct OverviewThe B57364S0259M000 is a 2-pin NTC Thermistor with kinked leads of tinned copperwire and coated thermistor disk. This B57364S0 series thermistor is useable inseries connections up to 265Vrms. It is marked with manufacturer's logo, NTC andresistance value stamped on. A lead (wire) may be bent at a minimum distance oftwice the wire's diameter plus 4mm from the component head or housing. Whenbending ensure the wire is mechanically relieved at the component head orhousing. The bending radius should be at least 0.75mm. Twisting (torsion) by180° of a lead bent by 90° is permissible at 6mm from the bottom of thethermistor body. Soldering can use resin-type flux or non-activated flux. Thesoldering due to insufficient preheating may cause ceramic cracks. Suitable forinrush current limiting, switch-mode power supplies and soft-start motors (e.g.in vacuum cleaners).Bending radius should be at least 0.75mmWide resistance range5.1W Maximum powerApplicationsSafety, Power Management, Motor Drive & Control
