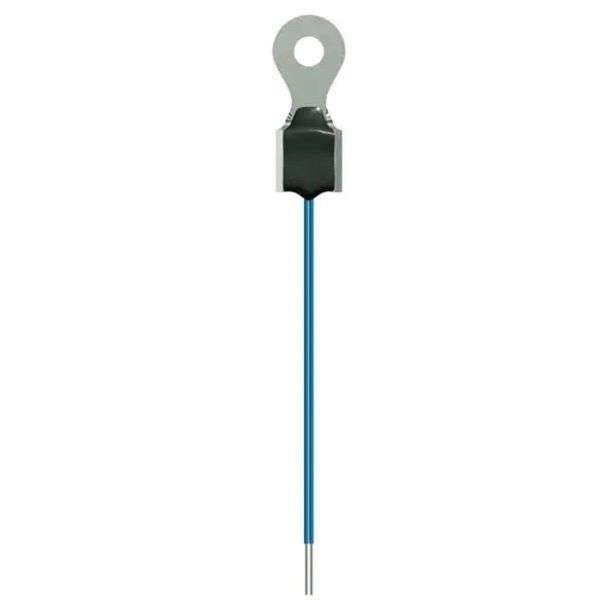

Epcos (B57703M0502G040) Thermistor, NTC, 5 kohm, B57703M Series, 3988 K

Thermistor, NTC, 5 kohm, B57703M Series, 3988 K, Through Hole, Wire LeadedProduct InformationZero Power Resistance at 25°C: 5kohmProduct Range: B57703MThermistor Mounting: Through HoleBeta Value (K): 3988KThermistor Terminals: Wire LeadedOperating Temperature Min: -55°COperating Temperature Max: 125°CProduct OverviewThe B57703M0502G040 is a 2-pin NTC Thermistor encapsulated in metal-tag case,with 30AWG PTFE-insulated leads of silver-plated nickel wire or 26AWG (stranded,7 x 34AWG), PTFE-insulated leads of silver-plated copper wire. This B57703Mseries through hole mounting thermistor features good thermal coupling throughmetal tag. A lead (wire) may be bent at a minimum distance of twice the wire'sdiameter plus 4mm from the component head or housing. When bending ensure thewire is mechanically relieved at the component head or housing. Twisting(torsion) by 180° of a lead bent by 90° is permissible at 6mm from the bottom ofthe thermistor body. Soldering can use resin-type flux or non-activated flux.The soldering due to insufficient preheating may cause ceramic cracks. Suitablefor surface temperature measurement (e.g. on housings and heat sinks).Bending radius should be at least 0.75mmHigh accuracy and easy mounting150mW Maximum powerApplicationsTest & Measurement
