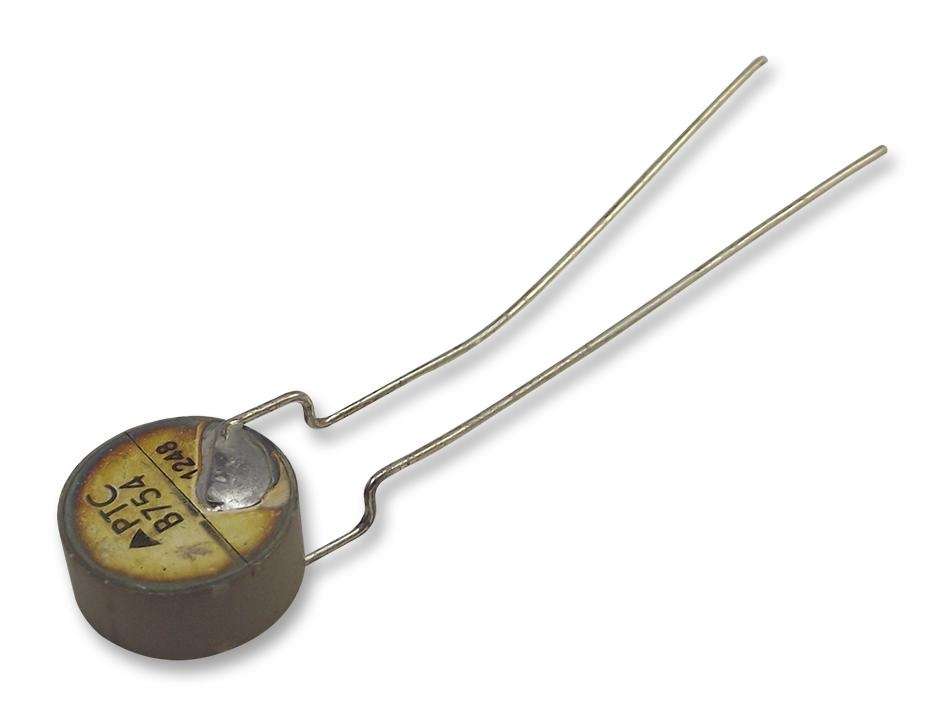

Epcos (B59754B0120A070) PTC Thermistor, 150 ohm, -25% to +25%

Epcos (B59754B0120A070) PTC Thermistor, 150 ohm, -25% to +25%

New 2389 available
R219.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2396423
Bob Shop ID
674506816
PTC Thermistor, 150 ohm, -25% to +25%, B59750 SeriesProduct InformationZero Power Resistance at 25°C: 25ohmThermistor Mounting: Through HoleProduct Range: B59750Operating Voltage Max: 440VApplications: Current Limiting ProtectionOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct OverviewThe B59754B120A70 is a 2-pin PTC Thermistor with lead-free terminals. This B597series thermistor is marked with manufacturer's logo, date code and typedesignation stamped on in black. Self-protecting in case of malfunction ofshort-circuit relay or internal short circuit of capacitor. Inrush currentlimiters are not damaged when directly connected to Vmax even without additionalcurrent limitation. Soldering can use rosin-type flux or non-activated flux. Thesoldering due to insufficient preheating may cause ceramic cracks. Suitable forover-current protection, short circuit protection, inrush current limiter(charging resistor) for smoothing and DC link capacitors and to replacehigh-power fixed resistors for capacitor charging.12.5W Maximum powerApplicationsSafety
