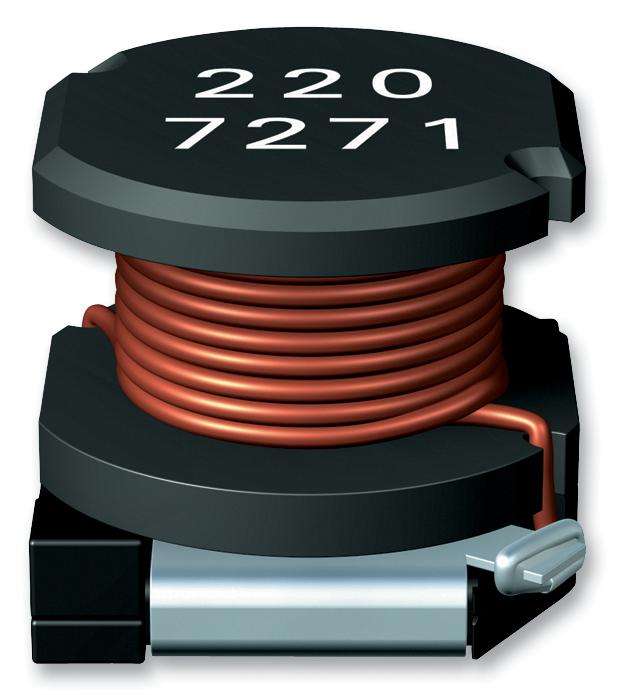

Epcos (B82471A1103M000) Wirewound Inductor, 10 µH, 0.1 ohm, 1.44 A

Epcos (B82471A1103M000) Wirewound Inductor, 10 µH, 0.1 ohm, 1.44 A

New 673 available
R149.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1644558
Bob Shop ID
674508678
Wirewound Inductor, 10 µH, 0.1 ohm, 1.44 A, 6.1mm x 5.6mm x 4.9mm, B82471A1Product InformationInductance: 10µHRMS Current (Irms): 1.44ASelf Resonant Frequency Min: -Saturation Current (Isat): 1.8ADC Current Rating: 1.44APower Inductor Case: 6.1mm x 5.6mm x 4.9mmInductor Case Style: 6.1mm x 5.6mm x 4.9mmDC Resistance Max: 0.1ohmProduct Range: B82471A1Inductance Tolerance: ± 20%Inductor Construction: UnshieldedProduct OverviewThe B82471A1 series SMT Power Inductor with ferrite core and an enamel copperwire winding. It is suitable for use in DC/DC converters, filtering of supplyvoltages, coupling and decoupling.Winding soldered to terminalsPlastic terminal carrierHigh rated currentLow DC resistanceSuitable for lead-free reflow soldering as referenced in JEDEC J-STD 020DUp to 150°C temperature
