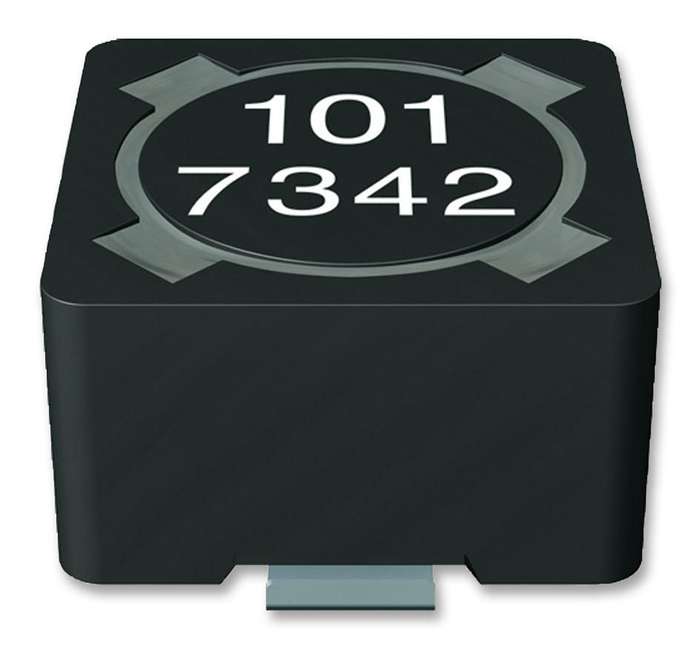

Epcos (B82472G6103M000) Power Inductor (SMD), 10 µH, 1.9 A, Shielded
New
10 were available
R149.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Power Inductor (SMD), 10 µH, 1.9 A, Shielded, 1.4 A, B82472G6, 7.3mm x 7.3mm x4.5mmProduct InformationInductance: 10µHRMS Current (Irms): 1.9AInductor Construction: ShieldedSaturation Current (Isat): 1.4AProduct Range: B82472G6Power Inductor Case: 7.3mm x 7.3mm x 4.5mmDC Resistance Max: 0.053ohmInductance Tolerance: ± 20%Product OverviewThe B82472G6 series SMT Power Inductor with ferrite core and an enamel copperwire winding. It is suitable for use in DC/DC converters, filtering of supplyvoltages, coupling and decoupling.Magnetically shieldedWinding soldered to terminalsHigh rated currentLow DC resistanceSuitable for lead-free reflow solderingUp to 150°C temperature
