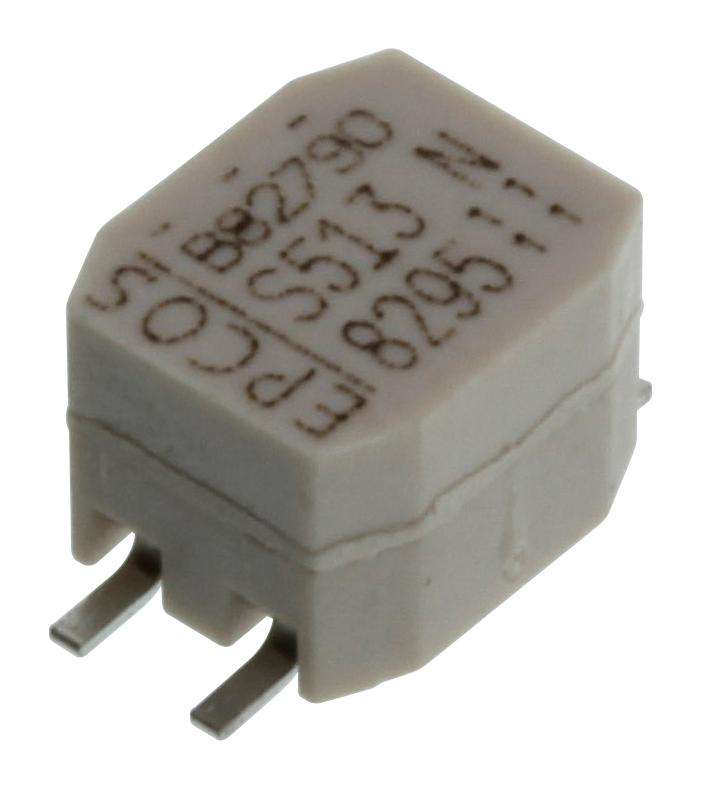

Epcos (B82790S0513N201) Choke, Common Mode, 51 µH, B82790S0 Series

Choke, Common Mode, 51 µH, B82790S0 Series, 500 mA, 7.1mm x 6mm x 4.9mmProduct InformationDC Current Rating: 500mAInductance: 51µHProduct Range: B82790S0Common Mode Filter Case: 7.1mm x 6mm x 4.9mmProduct Length: 7.1mmProduct Width: 6mmProduct Height: 4.9mmProduct OverviewThe B82790S0 series from EPCOS are common mode chokes. It functions thesuppression of asymmetrical and symmetrical interference coupled on lines. Thehigh frequency portion of symmetrical data signal are decreased until the EMCproblems are reduced significantly.Current compensated ring core double chokeRated voltage of 42VAC (50/60 Hz) / 80VDCFerrite core and sector windingSuitable for reflow solderingAutomotive grade AEC-Q200 qualifiedPPS case (UL 94 V-0)0.025mH and 0.051mH Inductance values availableRated current of 500mA7.1mm x 6mm x 4.9mm case sizeApplicationsIndustrial, Power Management, Consumer Electronics, Portable Devices, Automotive
