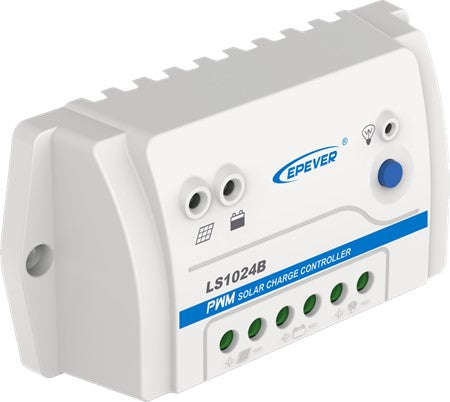

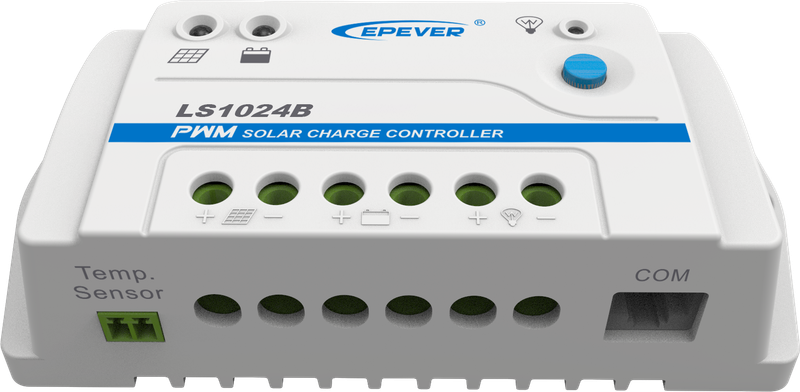

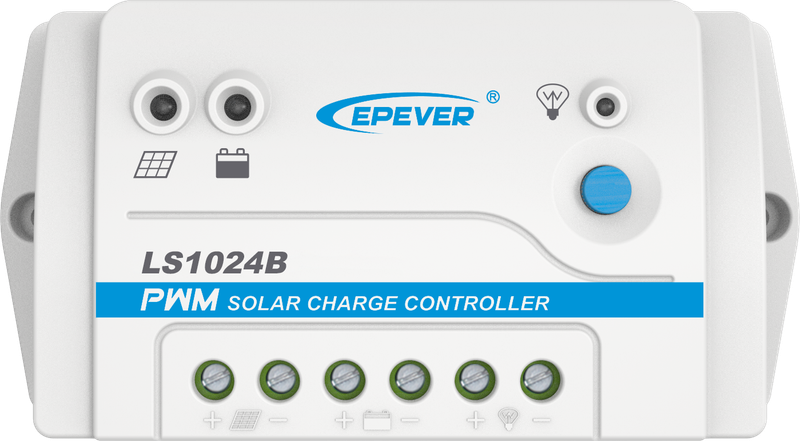

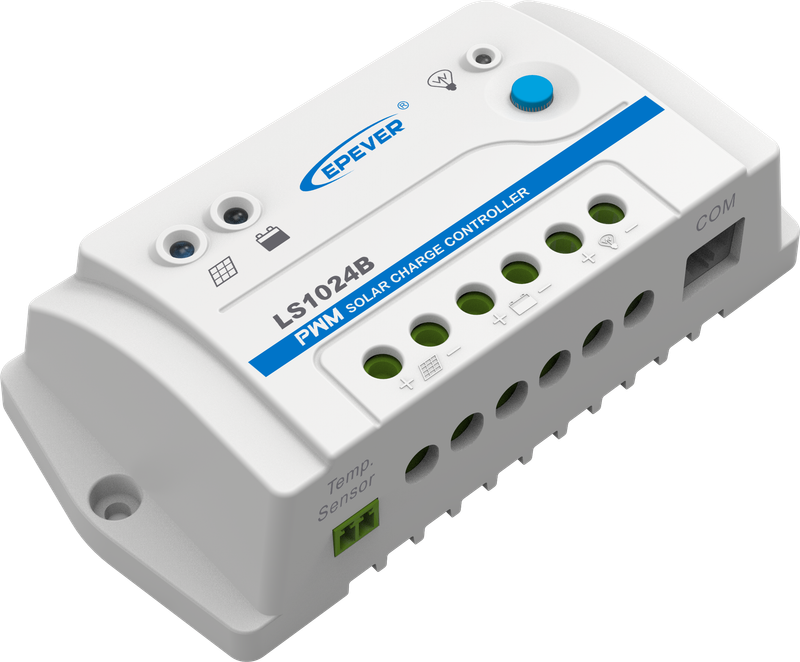

EPEVER LS1024B Solar Charge Controller - 10A PWM

Features:

• 12V / 24V Auto Detect

• RS485 interface
• Programmable settings
• Common positive PWM solar charge controller
• Multiple load control modes
• Full load operation within the working temperature range
• Extensive electronic protection
• Excluded PC COMMUNICATION CABLE FOR LS-B / TRACER-B / VS-B SERIES

Specification:

• Model Number : LS1024B

• Nominal Voltage : 12V DC / 24V DC Auto Detect
• Battery Type : Sealed (Default) / Gel / Flooded / User Defined
• Battery Input Range : 8 ~32V
• Rated Battery Charge Current : 10A
• Rated Discharge Current : 10A
• Max PV Open Circuit Voltage : 50V
• Equalization Voltage :
  • Sealed : 14.6V
  • Flooded : 14.8V
  • User : 9 - 17V
• Boost Voltage :
• • Gel : 14.2V
  • Sealed : 14.4V
  • Flooded : 14.6V
  • User : 9 - 17V
• Float Voltage:
• • Gel/Sealed/Flooded : 13.8V
  • User : 9 - 17V
• Low Voltage Reconnect :
• • Gel/Sealed/Flooded : 12.6V
  • User : 9 - 17V
• Low Voltage Disconnect :
• • Gel/Sealed/Flooded : 11.1V
  • User : 9 - 17V
• Self Consumption: < 8.4mA @ 12V  / < 7.8mA @ 24V
• Temperature Compensation : -3mV/°C/2V (default)
• Relative Humidity : < 95% non-condensing
• Enclosure : IP30
• Communication : RS485 (RJ45)
• Grounding : Common positive
• Operating temperature range : -35°C to 50°C
• Dimensions : 138.6x69.3x37mm
• Weight : 0.13kg
• Warranty: 2 years

Please take note:

• This charge controller is not plug-and-play. It needs to be programmed to the specific system being used (battery settings). This cable need to be purchased for programming.

• Recommended for professional and advanced solar users.
