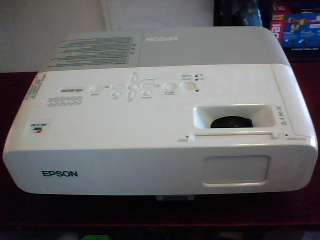

| PRODUCT NAME | Epson EB-824H |
| PRODUCT CODE | V11H355053 |
| PROJECTION SYSTEM |
|---|
| PROJECTION METHOD |
|---|
| SPECIFICATION OF MAIN PARTS |
|---|
| LCD | Size | 0.63 inches without MLA |
| | Driving method | Poly-Silicon TFT Active Matrix |
| | Pixel number | 786,432 pixels (1024 x 768) x 3 |
| | Native resolution | XGA |
| | Aspect ratio | 4:3 |
| | Pixel arrangement | Stripe |
| | Refresh Rate | 50Hz-60Hz |
| PROJECTION LENS | Type | Digital zoom / Manual focus |
| | F-number | 1.49 - 1.94 |
| | Focal length | 18.2mm - 29.2mm |
| | Zoom ratio | 1.0 ~ 1.62 Digital |
| LAMP | Type | 200W UHE E-TORL |
| | Life (estimated) | 5000Hr# (High bright), 6000Hr# (Low bright) |
| # Subject to operation and environmental conditions. |
| OPTICAL SYSTEM |
|---|
| SCREEN SIZE (PROJECTED DISTANCE) |
|---|
| BRIGHTNESS |
|---|
| | High Brightness Mode | 3,000 Lumens Light Output
3,000 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide) |
| | Low Brightness Mode | 2,400 Lumens Light Output
2,400 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide) |
| CONTRAST |
|---|
| BRIGHTNESS UNIFORMITY |
|---|
| COLOUR REPRODUCTIVITY |
|---|
| VIDEO QUALITY |
|---|
| SOUND OUTPUT |
|---|
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) |
|---|
| PIXEL CLOCK | 13.5MHz to 162MHz |
| HORIZONTAL | 15KHz to 92KHz |
| VERTICAL | 50Hz to 117Hz |
| ADJUSTMENT FUNCTION |
|---|
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c. |
| FOOT ADJUSTER | Front-centre |
| TILT ANGLE | 0 to 11 degrees |
| AUTO KEYSTONE CORRECTION | Vertical: -30 to +30 degrees |
PASSWORD PROTECTED FUNCTION
(security function) | Implemented |
| ANALOGUE RGB I/O |
|---|
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels |
| INPUT SIGNAL | Signal type | Separate signal |
| | Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) |
| | Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
| | Audio signal | 500mVrms / 47K-ohm |
| INPUT TERMINAL | Video | D-sub 15pin x 2 (Blue moulding) |
| | Audio | Stereo mini jack x 2 |
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| | Sync. | Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 - 0.4Vpp) |
| VIDEO I/O |
|---|
| DISPLAY PERFORMANCE | | NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| | Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
| | Audio signal | 500mVrms / 47k-ohm |
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin x 2 (Blue moulding) |
| MIC |
|---|
| Input Signal | Audio | -50dBV to -40dBV (0dB=1V/Pa,1kHz) (TBD) |
| Input Terminal | Audio | Stereo mini jack (Plug in power is available) |
| CONTROL I/O |
|---|
| SERIAL I/O | Terminal | D Sub 9 pin x 1 |
| |
