Epson EcoTank L5296 4-in-1 with Wi-Fi Direct and Ethernet Printer
Key Features
Multifunction printer Print, copy, scan, fax wirelessly with LCD screen
Ultra-low-cost printing Save up to 90% on printing costs2
Up to 3 years of ink in the box3 Includes 8,100 pages in black and 6,500 in colour4

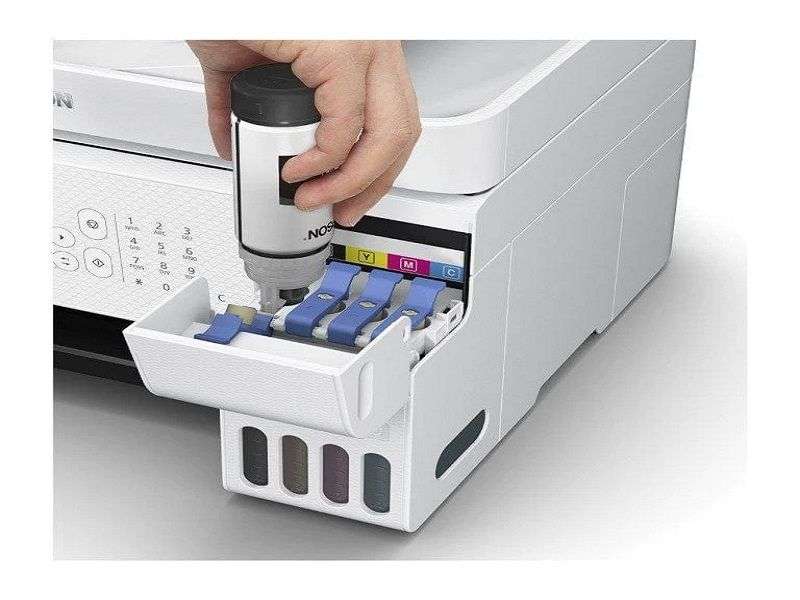

Hassle-free ink tank system Enjoy mess-free refills with key-lock bottles and front-facing tanks
Epson Smart Panel app Wirelessly set up, monitor, print, scan, copy and more from your smart device5
Technology
Printing Method
Epson Micro Piezo99 print head
Nozzle Configuration
180 Nozzles Black, 59 Nozzles per Color
Minimum Droplet Size
3 pl, With Variable-Sized Droplet Technology
Ink Technology
Dye Ink
Printing Resolution
5.760 x 1.440 DPI
Category
Home, Office Desktop
All-in-One Functions
Print, Scan, Copy, Fax
Print
Printing Speed ISO/IEC 24734
10 pages/min Monochrome, 5 pages/min Colour
Printing Speed
33 pages/min Monochrome (plain paper 75 g/mb2), 15 pages/min Colour (plain paper 75 g/mb2), 69 Seconds per 10 x 15 cm photo (Epson Premium Glossy Photo Paper)
Colours
Black, Cyan, Yellow, Magenta
Scan
Single-sided scan speed (A4 black)
200 dpi (with ADF); , 4,5 ipm with ADF scan 200 dpi (flatbed) 12 sec. with flatbed scan
Single-sided scan speed (A4 colour)
200 dpi (with ADF); , 4,5 ipm with ADF scan 200 dpi (flatbed) 29 sec. with flatbed scan
Optical Resolution
1.200 DPI x 2.400 DPI (Horizontal x Vertical)
Output formats
BMP, JPEG, TIFF, PDF
Scanner type
Contact image sensor (CIS)
Fax
Type of fax
Walk-up black and white and colour fax capability
Error correction mode
CCITU/ITU Group3 fax with Error Correction Mode
Fax speed dials (max)
100 names and numbers
Page memory
Up to 100 pages (ITU-T No.1 chart)
Fax Functions
PC Fax, Auto Redial, Address Book, Delay Send, Broadcast Fax
Paper / Media Handling
Number of paper trays
1
Paper Formats
10 x 15 cm, Letter, No. 10 (Envelope), DL (Envelope), C6 (Envelope), B5, A6 (10.5x14.8 cm), A5 (14.8x21.0 cm), A4 (21.0x29.7 cm), Legal, 16:9, User defined, 13 x 18 cm
Duplex
Manual
Automatic Document Feed
30 pages
Output Tray Capacity
30 Sheets
Paper Tray Capacity
100 Sheets Standard, 100 Sheets Maximum, 20 Photo Sheets
Compatible Paper Weight
64 g/mb2 - 300 g/m`b2
Media Handling
Borderless Print
General
Energy Use
12 Watt (standalone copying, ISO/IEC 24712 pattern), 0,7 Watt (sleep mode), 4,3 Watt (Ready), 0,2 Watt (Power off)
Supply Voltage
AC 220 V - 240 V
Product dimensions
375 x 347 x 237 mm (Width x Depth x Height)
Product weight
5 kg
Noise Level
6,5 B (A) with Epson Premium Glossy Photo Paper / Photo RPM mode - 52 dB (A) with Epson Premium Glossy Photo Paper / Photo RPM mode
Compatible Operating Systems
Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP SP3, Windows Server 2003 R2, XP Professional x64 Edition SP2
Included Software
Epson Easy Photo Print, Epson Easy Photo Scan
Interfaces
WiFi, USB, Ethernet, Wi-Fi Direct
WLAN Security
WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES)
Mobile and Cloud printing services
Epson Connect (iPrint, Email Print, Remote Print Driver), Apple AirPrint, Google Cloud Print, Epson Smart Panel App
What's in the box
4 x 65ml individual ink bottles (Bk,C,Y,M) + 1 extra black ink bottle,
1 x Main unit,
1 x Power cable,
1 x Software (CD),
1 x Warranty document
