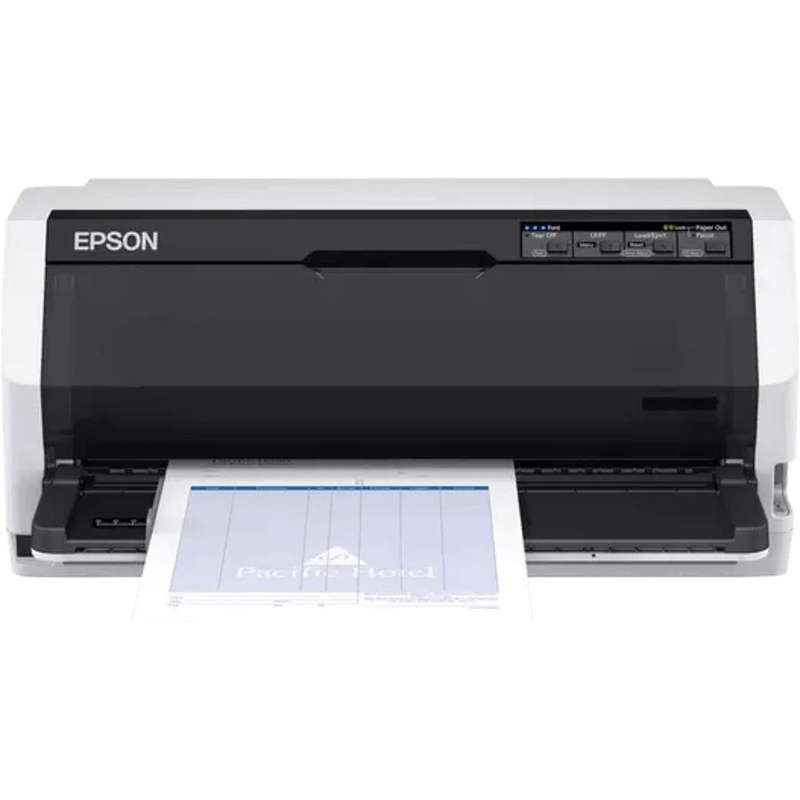

Epson LQ-690II 24-pin 487 cps Dot Matrix Printer
Fast printing
Print faster and more productively. The LQ-690II prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.
High ribbon yield
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.
Dependable
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.
Smart design
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
Features:
- High speed Impressive print speed of 487 cps (10cpi) with 1+6 copies
- Quality The 106 column capacity with 24 pins means greater quality
- Reliable Combined power of print head life and MTBF of 20,000 hours
- Modern design The black and white casing blends comfortably into any work environment
Specifications:
Printing Method: Impact dot matrix
Number of Pins: 24 pins
Number of columns: 106 columns
Pins: 24 Needles
Power consumption: 38 Watt, 3 Watt (standby)
Product dimensions: 480 x 301 x 211 mm (Width x Depth x Height)
Product weight: 6,8 kg
Supported Temperature: Operation 5° C - 35° C
Supported Humidity: Operation 10% - 80%
Compatible Operating Systems: Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Included Software: Epson Status Monitor
Mean Time Between Failures: 20.000 hours
Print Head Life: 400 Million Strokes/Wire
Noise: Operation: 59 dB (A)- Standby: 54 dB (A)
Print
Printing Speed: HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Barcodes: Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies: 6 plus one original
Character Tables: PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Printing Resolution: 360 x 180 DPI
Connectivity
Interfaces: USB 2.0, Bidirectional parallel
Paper / Media Handling
Document Feed: Single sheet front, Continuous media rear, Paper output front
Paper Formats: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper: 0,065 mm - 0,49 mm
Paper Thickness Label Base Sheet: 0,16 mm - 0,19 mm
Paper Thickness Label Total Sheet: 0,16 mm - 0,19 mm
Paper Thickness Multi Part: 0,12 mm - 0,49 mm
Paper Thickness Single Sheet: 0,065 mm - 0,15 mm
