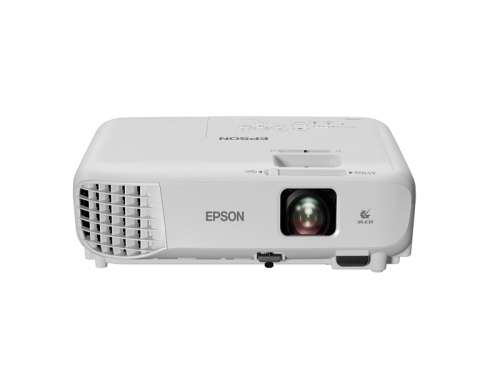

Epson Multimedia Projector EB-X500

Create the big screen experience

Bright even with ambient light

Affordable, high-tech equipment

Long-lasting solution

Portable and quick to set up

Technology

Projection System 3LCD Technology, RGB liquid crystal shutter

LCD Panel 0,55 inch with C2 Fine


Color Light Output 3.600 Lumen- 2.400 Lumen (economy) In accordance with IDMS15.4

White Light Output 3.600 Lumen - 2.400 Lumen (economy) In accordance with ISO 21118:2020

Resolution XGA, 1024 x 768, 4:3

Aspect Ratio 4:3

Contrast Ratio 16.000 : 1

Light source Lamp

Lamp UHE, 210 W, 6.000 h durability, 12.000 h durability (economy mode)

Keystone Correction Auto vertical: `b1 30 `b0, Manual horizontal `b1 30 `b0

Colour Video Processing 10 Bits

2D Vertical Refresh Rate 100 Hz - 120 Hz

Colour Reproduction Upto 1.07 billion colours

Optical

Throw Ratio 1,48 - 1,77:1

Zoom Manual, Factor: 1,2

Lens Optical

Screen Size 30 inches - 300 inches

Projection Distance Wide/Tele 1,8 m - 2,17 m ( 60 inch screen

Projection Lens F Number 1,49 - 1,72

Projection Lens Focal Length 16,9 mm - 20,28 mm

Projection Lens Focus Manual

Offset 8 : 1

Connectivity

USB Display Function 2 in 1: Image / Mouse

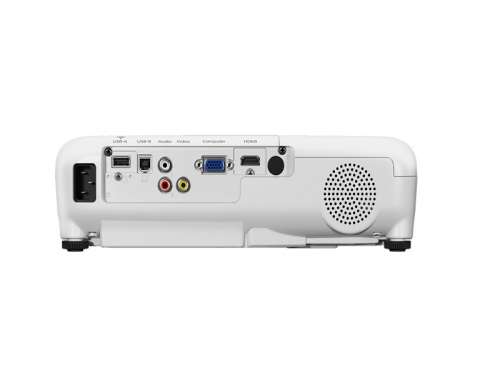

Interfaces USB 2.0 Type A, USB 2.0 Type B, VGA in, HDMI in, Cinch audio in, Wireless LAN IEEE 802.11b/g/n (optional)

Epson iProjection App Ad-Hoc / Infrastructure

Advanced Features

Security Kensington lock, Security bar, Wireless LAN unit lock, Password protection

3D No

2D Colour Modes Dynamic, Cinema, Presentation, sRGB, Blackboard

Other features AV Mute Slide, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function

Video Color Modes Blackboard, Cinema, Dynamic, Presentation, sRGB

General

Power consumption 327 Watt, 225 Watt (economy), 0,3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt

Supply Voltage AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions 302 x 237 x 82 mm (Width x Depth x Height)

Product weight 2,5 kg

Noise Level Normal: 37 dB (A) - Economy: 28 dB (A)

Supported Temperature Operation 5`b0 C - 35`b0 C, Storage -10`b0 C - 60`b0 C

Supported Humidity Operation 20% - 80%, Storage 10% - 90%

If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Included Software Content DIY App, iProjection, Epson Projector Management, Epson Projector Professional Tool

Options Air filter ELPAF38, Soft carry case

Loudspeaker 2 Watt

What`s in the box Computer cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card

Room Type / Application Home Office, Home Photo, Streaming, TV & Box sets

Positioning Ceiling Mounted, Desktop

Colour White

Other

Warranty 24 months Carry in, Lamp: 12 months or 1.000 h
