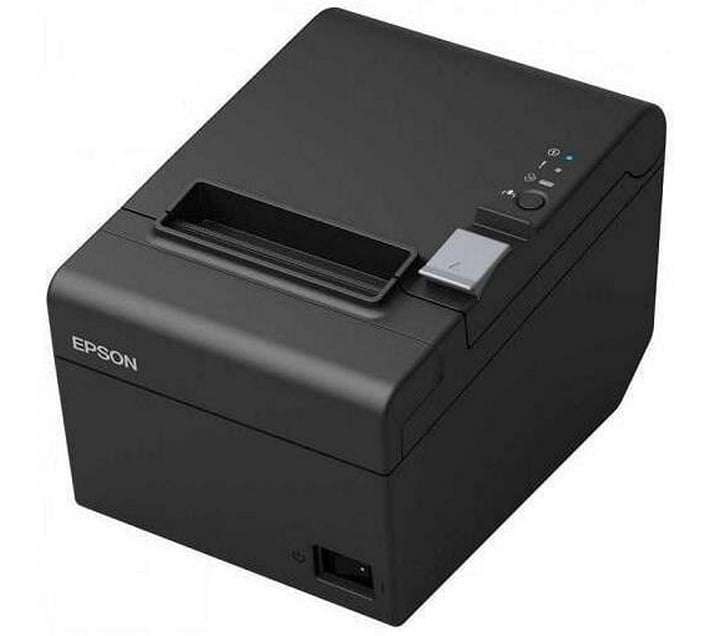

Epson TM-T20IIIS Thermal Receipt Printer
"KEY FEATURES
Economical
Automatic paper reduction function
Reliable
Mechanism life of 15 million lines
Fast print speed
Print speed of 250mm/sec
Flexible connectivity
USB + Serial
Peace of mind
Epson is Europe's number one POS printer manufacturer
This entry-level thermal POS receipt printer provides a cost-effective POS solution with fast print speeds and economical features.
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.
Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width.
Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.
Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20III in high-volume printing environments.
Connectivity
Ethernet
Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.
Specifications
FONTS & STYLES
Column capacity: Paper width 80 mm, 48 / 64
PAPER
Paper size: 79,50 0,50 (W) mm x dia 83,00 mm, 57,50 0,50 (W) mm x dia 83,00 mm
Print Speed: 250 mm/sec
Printing Font: ANK
Column capacity receipt: Paper width 80 mm, 48 / 64
Character set: 95 Alphanumeric, 18 set International, 128 x 43 Graphic
Characters per inch: 22,6 cpi / 16,9 cpi
Dot density: 203 dpi x 203 dpi
Colour Printing: Black
Printing Characters: Text (incl. Euro symbol), Graphics, Barcode
INTERFACES
Interfaces: RS-232, USB 2.0 Type B, Drawer kick-out
DATA BUFFER
Data Buffer: 4 kB or 45 Bytes
POWER
Power Supply: AC adapter, C1
Power Consumption: standby: 0,1 A, Mean: 1,8 A
Operating Voltage: 24 V
GENERAL
Product dimensions: 140 x 199 x 146 mm (Width x Depth x Height)
Product weight: 1,7 kg
Colour: Black (EBCK)
Installation: horizontally, vertically, vertically with wall hanging bracket
Interface connectors: D.K.D. function (2 drivers)
Noise Level: Operation: 55 dB (A)
Humidity: Operation 10% - 90%, Storage 10% - 90%
Temperature: Operation 5 C - 45 C, Storage -10 C - 50 C
STANDARDS COMPLIANCE
EMC Standards: FCC class A, CE marking, EN55022 Class A
Safety standards: UL, CSA, T V
OTHER FEATURES
Cutter: Partial Cut
Sensors: Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
Paper Saving Function: Yes"
What's in the box
1 x CD Manual
1 x Main unit
1 x Power switch cover
1 x Roll paper
1 x Rubber feet
1 x USB Cable
1 x Wall hanging bracket
1 x Warranty document
1 x Paper roll spacer
1 x Setup guide
1 x AC adapter, C1
1 x EURO AC cable
