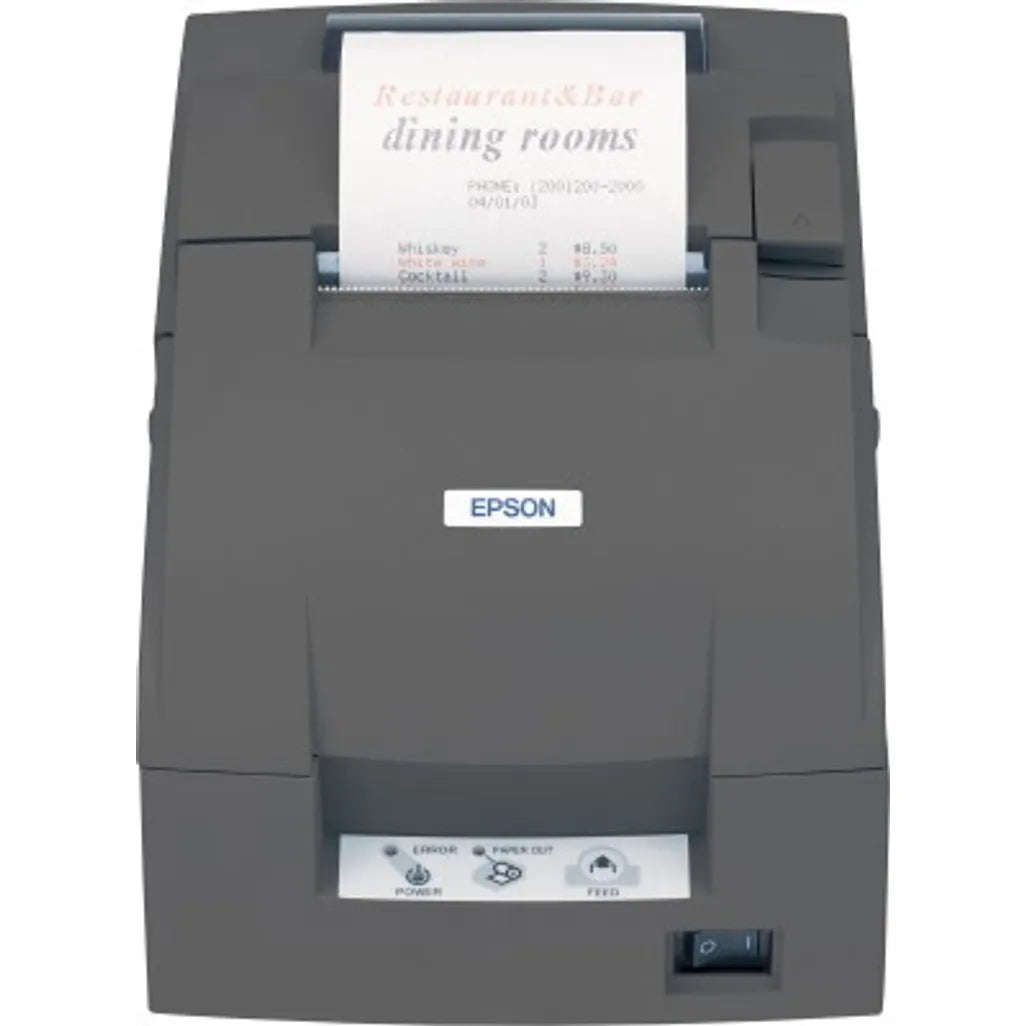

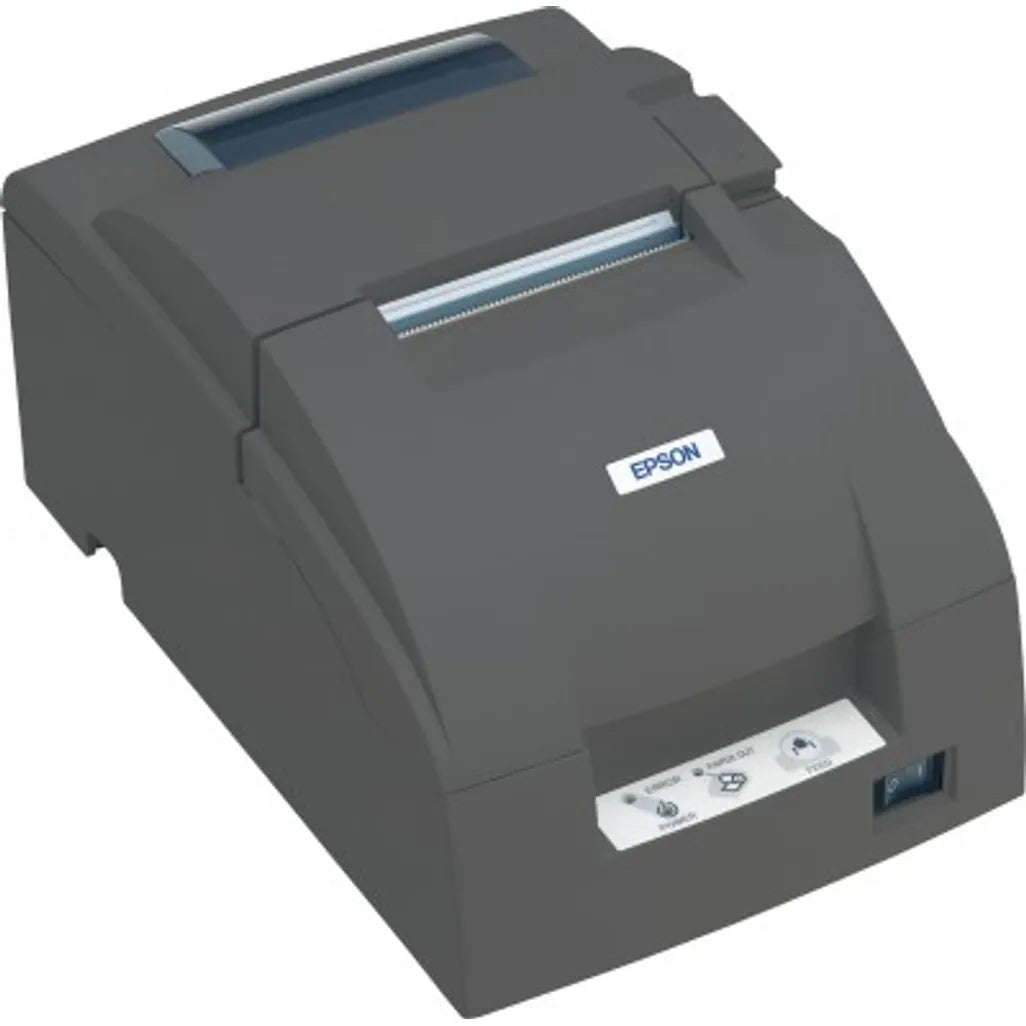

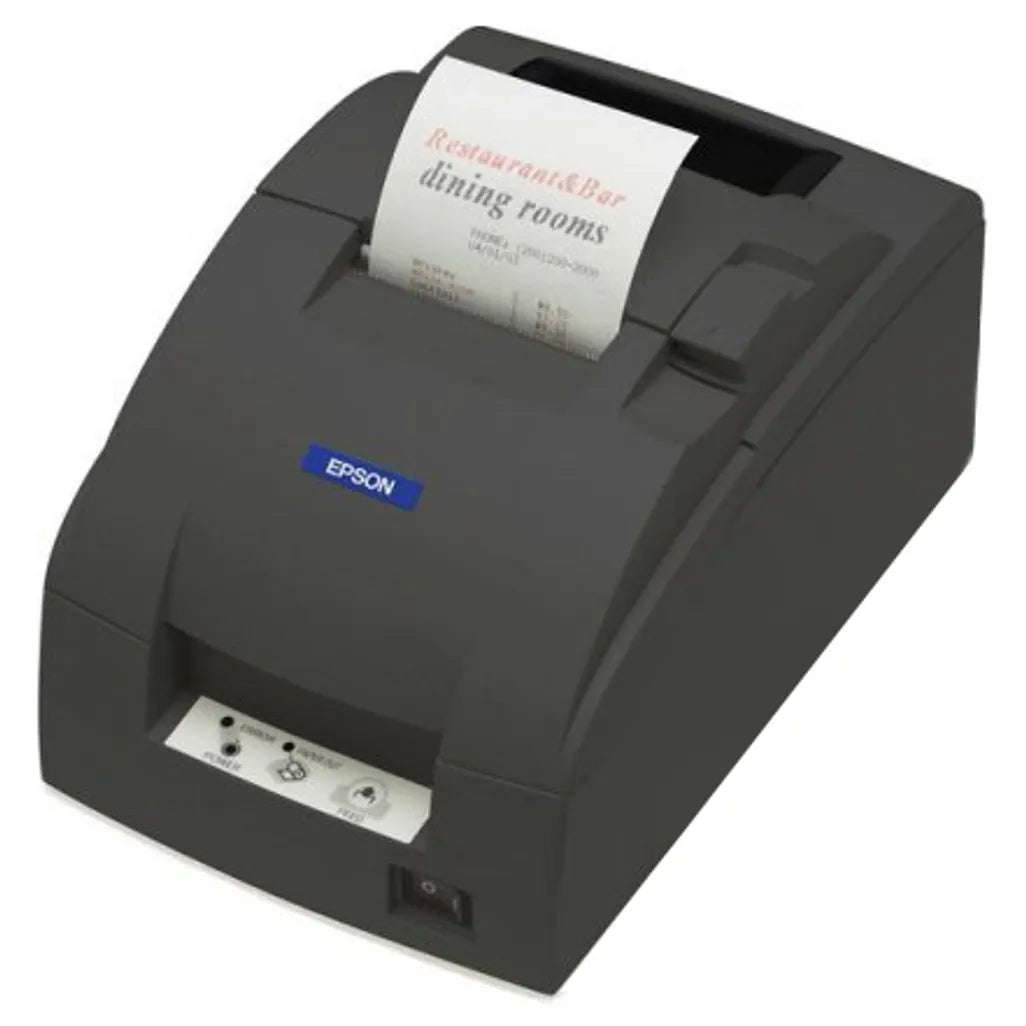

Epson TM-U220B Impact Receipt Printer Reliable, Kitchen-Ready & mPOS-Friendly
The Epson TM-U220B (Serial Interface) is a compact, high-speed impact dot matrix receipt printer designed for demanding environments like restaurant kitchens, retail counters, and service stations. With right-side-up printing, two-color output, and auto-cutter functionality, it's built to deliver clear, durable receipts and order ticketseven in high-heat or high-humidity conditions.
This model supports Serial RS-232C connectivity, making it ideal for legacy POS systems and stable wired installations. It's also mPOS-friendly, compatible with iOS, Android, and Windows devices via Epson's ePOS-Print technology. With drop-in paper loading, DHCP-enabled networking, and support for multiple paper widths, the TM-U220B offers flexibility, speed, and reliability in one rugged unit.
Key Features:
- Serial RS-232C interface for stable POS integration
- 9-pin impact dot matrix printing for long-lasting receipts
- Auto-cutter (partial or full cut) for clean separation
- Two-color printing (black/red) to highlight offers or exceptions
- Fast print speeds up to 6.0 lines per second
- Supports paper widths of 58, 70, or 76mm
- Drop-in paper loading for quick refills
- Right-side-up printing for kitchen readability
- ENERGY STAR® qualified for eco-efficiency
- 2-Year Limited Warranty
Ideal For: Restaurant kitchens, retail counters, ticketing booths, and hospitality environments requiring durable, legible receipts.
Technical Specifications TM-U220B (Serial)
Feature | Specification |
|---|
Model | Epson TM-U220B (Serial Interface) |
Print Method | 9-pin serial impact dot matrix |
Print Speed | Up to 6.0 lps (30 columns, 16 cpi); 4.7 lps (40 columns, 16 cpi) |
Print Fonts | 7×9 / 9×9 |
Column Capacity | 42 / 42 or 33 / 35 columns |
Character Size | 1.2 × 3.1 mm / 1.6 × 3.1 mm |
Character Set | 95 Alphanumeric, 37 International, 128×123 Graphic |
Supported Languages | Traditional/Simplified Chinese, Thai, Japanese, Korean |
Paper Widths | 58mm, 70mm, 76mm |
Paper Diameter | 83mm |
Paper Thickness | 0.06 to 0.085mm |
Copy Capability | One original + one copy |
Ribbon Type | ERC-38 (Black or Black/Red) |
Ribbon Life | Black: 3 million characters; B/R: 1.5 million (black), 750k (red) |
Reliability | MTBF: 180,000 hours; MCBF: 18 million lines |
Interface | Serial RS-232C |
Data Buffer | 40 bytes or 4KB |
Power Supply | 24 VDC ± 7% |
DKD Function | 2 drivers |
Dimensions (W×D×H) | 160 × 248 × 138.5 mm |
Weight | 2.5 kg |
Color Options | Epson Dark Gray (EDG), Epson Cool White (ECW) |
Certifications | ENERGY STAR®, RoHS, FCC Class A, CE, UL, CSA, TÜV |
Warranty | 2-Year Limited Warranty |
In the Box | TM-U220B printer, ribbon cassette, paper roll, power switch cover, Adaptor C, user manual |
Warranty | 2 Year Manufacturer's Carry-In Warranty |
