EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit
EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit

EQKIT Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit

20 available / new
R292.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643379032
How it light:



Feature:
Name: HV-1 high-pressure igniter (DIY kit, you need to assemble it) Input voltage: DC3-5V Input current: 3A Operating current: no less than 2.5A Working mode: self-excited oscillation boost Working frequency: about 20KHz Continuous working time: 10 seconds Arc length: about 5 mm Size: 71 x 18 x 12mm (L x W x H) Ignition switch: yes Weight: 15 g

List:

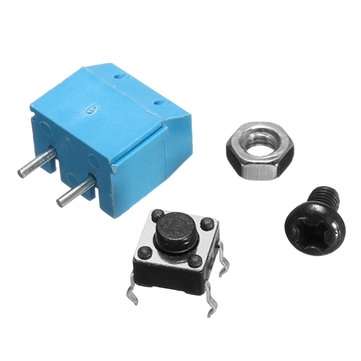

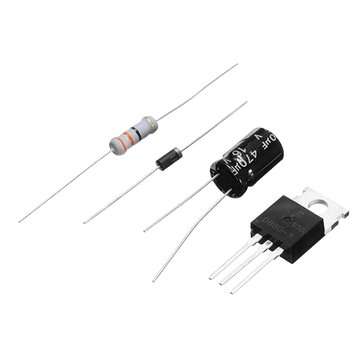

NO. ComponentName PCB Marker Parameter QTY
1 Carbon film resistors R1 33R/1W 1
2 Electrolytic capacitor C1 470UF 1
3 Diode D1 1N5819 1
4 Button SW1 6*6*5mm 1
5 Transistor Q1 D880 1
6 Battery terminal JK1 KF301-2P 1
7 Transformer T1 14*15*8 1
8 PCB -- 18*71mm 1
9 Screw Q1 M3*5 1
10 Nut Q1 M3 1
11 Tie T1 3*100mm 1

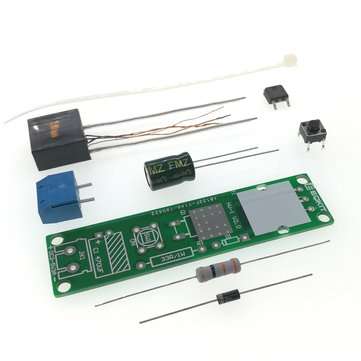

Package includes: 1 xArc Ignition Lighter Kit




After assemble, for reference only










, , , , ,
