3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W.
Centralized Management: Cloud access and the Omada app offer convenience and easy management.
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.
Specifications:
Security
Access Control: Source/Destination IP Based Access Control
Filtering: URL Filtering
ARP Inspection: N/A
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Hardware Features
Standards and Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface:
2 Gigabit SFP WAN/LAN ports
1 Gigabit WAN port
1 Gigabit LAN/WAN port
8 Gigabit LAN ports
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m), EIA/TIA-568 100 STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m), EIA/TIA-568 100 STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity: Fanless
Button: Reset Button
Power Supply: 53.5VDC/2.43A Adapter
PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
Flash: 8Mb Nor + 4 GB EMMC
DRAM: 1 GB DDR3
LED Indicators: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Desktop/Wall-mount
Max Power Consumption:
133.2W with PoE Max
13.88W without PoE
Performance
Concurrent Sessions: 24,980
New Sessions/Second: 1,900
NAT Throughput:
Static IP: 935.5 Mbps (up) / 942.1 Mbps (down)
DHCP: 940.2 Mbps (up) / 941.7 Mbps (down)
PPPoE: 913.1 Mbps (up) / 935.2 Mbps (down)
L2TP: 545.0 Mbps (up) / 912.7 Mbps (down)
PPTP: 523.0 Mbps (up) / 912.8 Mbps (down)
IPsec VPN Throughput: 168.5 Mbps (AES256)
OpenVPN Throughput: 34 Mbps
L2TP VPN Throughput:
Unencrypted: 845.3 Mbps
Encrypted: 333.2 Mbps
PPTP VPN Throughput:
Unencrypted: 1012.6 Mbps
Encrypted: 401.4 Mbps
Packet Forwarding Rate:
66 Byte: 154,069 pps (up) / 156,977 pps (down)
1,518 Byte: 81,193 pps (up) / 81,193 pps (down)
Basic Functions
WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
MAC Clone: Modify WAN MAC Address
DHCP: DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
IPv6: Support
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy
Advanced Functions
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing: Static Routing, Policy Routing
Bandwidth Control: IP/Port-based Bandwidth Control
Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection
NAT: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Session Limit: IP-based Session Limit
VPN
IPsec VPN:
20 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
AES128, AES192, AES256 Encryption Algorithm
IKE v1/v2
SHA1, SHA2 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
16 Tunnels
PPTP with MPPE Encryption
L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
16 Tunnels
L2TP over IPSec
OpenVPN:
OpenVPN Server
OpenVPN Client (10)
16 OpenVPN Tunnels
Authentication
Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, Facebook
Management
Omada App: Yes
Centralized Management: Yes
Cloud Access: Yes
Service: Dynamic DNS (Dyndns, No-IP)
Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Syslog Support
Zero-Touch Provisioning: N/A
Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, Management up to 1 Router, 2 Switches, and 10 EAPs
Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/8.1/10, MAC OS, NetWare, UNIX, or Linux
Environment:
Operating Temperature: 0 C to 45 C (32 F to 113 F)
Storage Temperature: -40 C to 70 C (-40 F to 158 F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
What's in the box

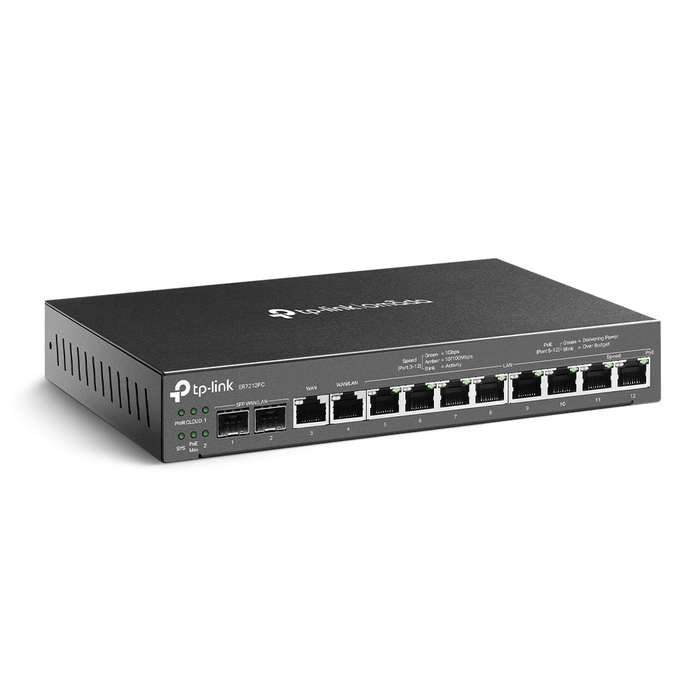

ER7212PC 3-in-1 Gigabit VPN Router
Power Adapter
Power Cord
Quick Installation Guide
