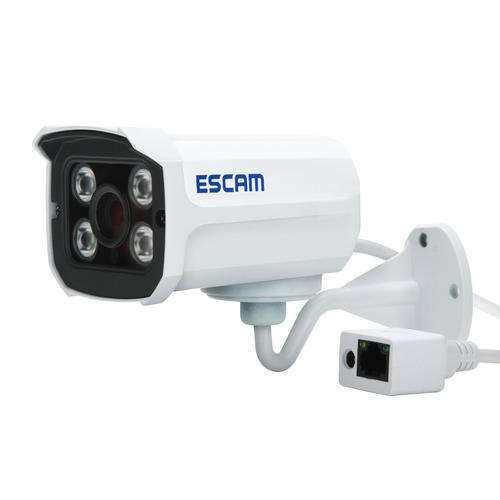

ESCAM QD300 Brick Waterproof ONVIF HD 720P IP Camera P2P Cloud IR Security

Key Features

• 1/4” 1Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@720P(1280×720)
• DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS
• 3.6mm fixed lens
• Max. IR LEDs Length 15m
• DC12V 1A

Camera

Image Sensor: 1/4” 1Megapixel progressive scan CMOS

Effective Pixels: 1280(H)x720(V)

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3(4)~1/10000

Min. Illumination: Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)

S/N Ratio: More than 50dB


Camera Features

Max. IR LEDs Length: 15m

Day/Night: Auto(ICR) / Color / B/W

Backlight Compensation: BLC/ HLC/ DWDR

White Balance: Auto/Manual

Gain Control: Auto/Manual

Noise Reduction: 3D

Privacy Masking: Up to 4 areas

Lens

Focal Length: 3.6mm

Max Aperture: F1.8

Focus Control: Manual

Angle of View: H: 70°

Lens Type: Fixed lens

Mount Type: Board-in Type

Video

Compression: H.264

Resolution: 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)

Frame Rate

Main Stream: 720P(1 ~ 25/30fps)

Sub Stream: D1/CIF(1 ~ 25/30fps)

Bit Rate: H.264: 16K ~ 8192Kbps



Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP,  SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF: ONVIF Profile S

Max. User Access: 10 users

Smart Phone: iPhone, iPad, Android

P2P: iPhone, Android Mobile App


General

Power Supply: DC12V 1A

Power Consumption: <4W

Working Environment: -30°C~+60°C, Less than 95%RH

Dimensions: 107mm x68mm x60mm

Weight: 0.25Kg

Supported OS: Microsoft Win98 SE/ME/2000/XP/Vista/Windows7

Approvals: CE FCC RoHS


Package includes :

1 x ESCAM QD300 Brick IP Security Camera
1 x English User manual
1 x Pack of screws
1 x CD
1 x EU Power supply
