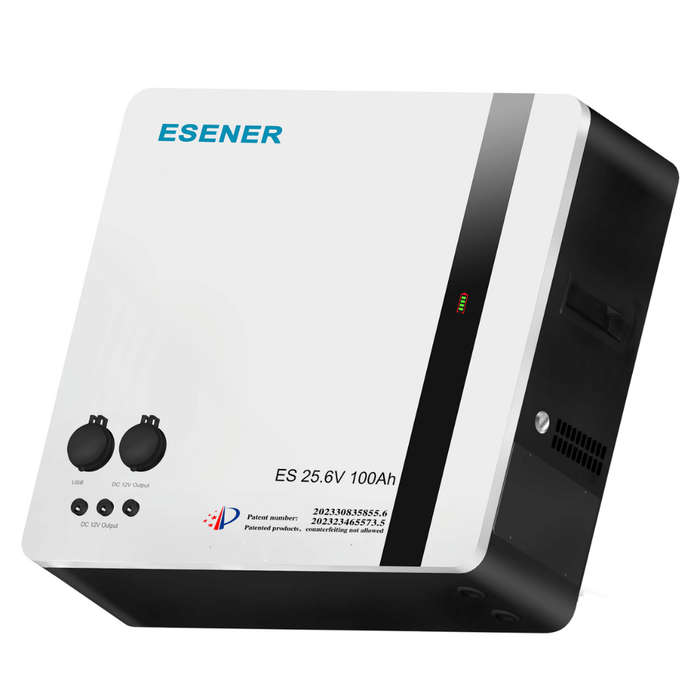

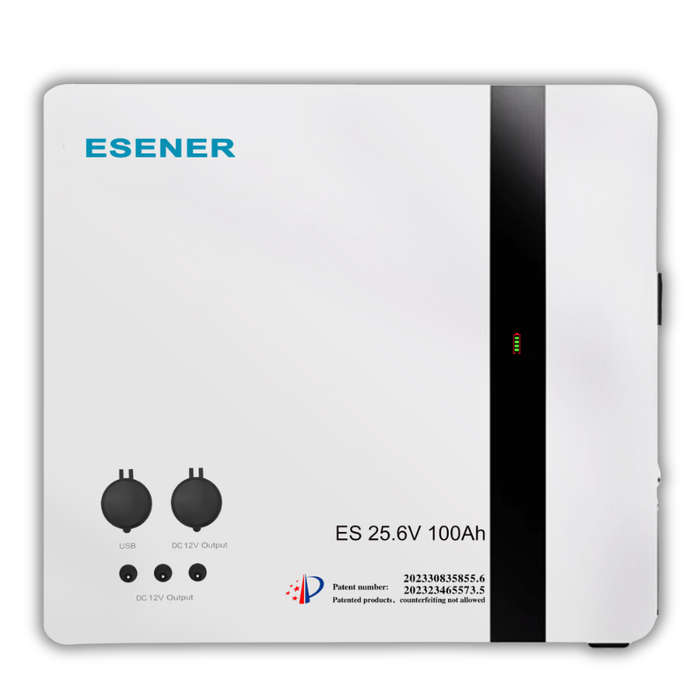

Esener 2.56KW 24V Lithium-Ion Battery

Lithium-Ion BatteryEsener 2.56KW 24V Lithium-Ion Battery

The ESENER ES-2.56kWh 25.6V Lithium-ion Battery is a high-performance, long-lasting energy storage solution, engineered for residential and commercial solar power systems. Equipped with an advanced Battery Management System (BMS) with current limiting and protection functions, this battery ensures safe and efficient operation under all conditions. With exceptional thermal performance, a high cycle life, and easy installation features, it delivers reliable backup and off-grid energy storage across a wide range of applications.

Features:

• Advanced BMS With current limiting, over-charge, over-discharge, and over temperature protection
• High Cycle Life ±5000 cycles at 80% DoD; designed lifespan ±15 years
• 1C Discharge Rate High-performance lithium battery with 100A charge/discharge
• Flexible Integration Compatible with most inverters, solar charge controllers, and 24V lithium chargers
• Scalable System Supports parallel and series connection (Max 2S2P)
• Low Self-Discharge Ideal for backup and off-grid setups
• User-Friendly Wall-mount or shelf installation with side handles for easy transport
• Built-In Ports Includes 5V USB, 12V cigarette lighter, 12V light port, and 220V AC output (300W)

Specifications:

• Model: ES-2.56KWh
• Rated Capacity: 100Ah
• Voltage: 25.6V
• Energy: 2.56kWh
• Discharge Cut-off Voltage: 23V
• Equalized Charge Voltage: 29.2V
• Max Charging Current: 100A
• Max Discharging Current: 100A
• C Rating: 1C
• Cycle Life: ±5000 Cycles @ 80% DoD
• Design Life: ±15 Years
• Operating Temperature:
• Charging: 0°C to +50°C
• Discharging: -10°C to +50°C
• Storage: -10°C to +50°C
• Display: LED Indicato
• Parallel Support: Yes (Max 2S2P)
• Communication Ports: 2 x parallel instruction ports
• Output Ports:
• USB: 5V 1A / 2.1A
• 12V Light Port (DC2.1mm): 12V, 120W (10A)
• 12V Cigarette Lighter Port: 28A
• 220V AC Output: 300W
• External Charging Options:
• 24V inverter
• 24V lithium charger
• 24V solar charge controller
• Build: White bake lacquer steel case
• Dimensions: 442 × 400 × 143 mm
• Weight: Approx. 24.5 kg

What's in the box:

1 x Esener 2.56KW 24V Lithium-Ion Battery
