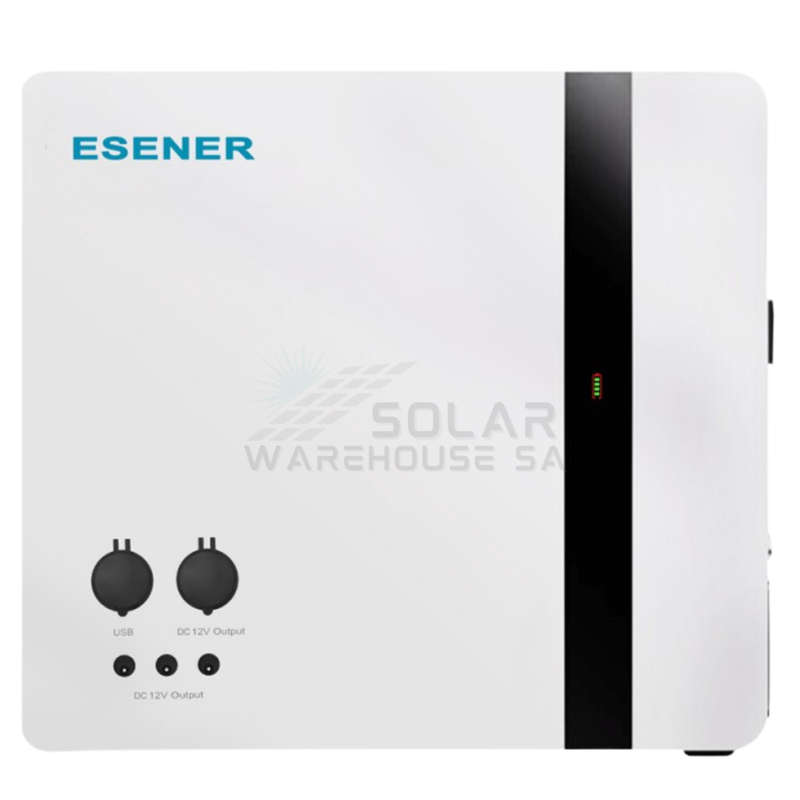

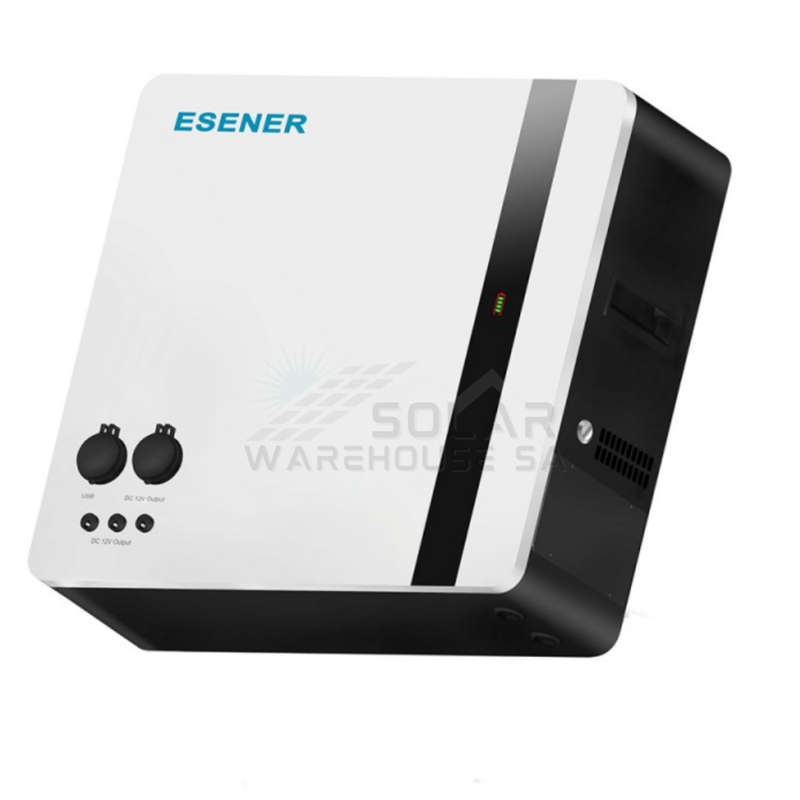

ESENER 2.56kwh Multifunctional Lithium Battery – Wall Mount

Features

• Advanced Battery Management System (BMS) with current limiting function.
  Excellent high-temperature performance.
  High cycle life and service life.
  1C high-performance lithium battery.
  High energy density and conversion efficiency.
  Integrated battery management system for enhanced performance.
  Compatible with most inverters and chargers.
  Low self-discharge rate.
  Mounting options: Easy wall mount or shelf rack installation.
  Handling: Heavy-duty side handles for easy handling and wall mounting.
  Protection: Built-in protection for over-charge, over-discharge, and over-

  temperature.

  Specifications

  Model: ES-2.56KWh
  Rated Capacity (5HR): 100 Ah
  Voltage: 25.6V
  Discharge Cut-off Voltage: 23V
  Equalized Charge Voltage: 29.2V
  Max Continuous Charging Current: 100A
  Max Continuous Discharging Current: 100A
  C Rating: 1C
  Weight: Approx. 24.5 kg
  Display: LED
  Parallel Support: Yes, in parallel & series connection (Max 2s2p)
  Dimensions (WDH): 442 x 400 x 143 mm
  Ports: 2x parallel instruction ports, 12V cigarette lighter output port, 12V light output port, 220V output port
  Cells: New Li-ion cylindrical cells
  Warranty: 3 Years
  Cycle Life: ±5000 cycles at 80% DOD
  Certification: UN38.3, IEC, MSDS
  Outer Package Material: White baked lacquer steel case
  Operating Temperature: Charging: 0 to +50°C, Discharging: -10 to +50°C, Storage: -10 to +50°C
  Protection: Electronic circuit breaker, BMS voltage protection, current limiting

  External Charging Methods

  Compatible with: 24V inverter, 24V lithium battery charger, 24V solar charge controller.

  Power Supply Capacity

  TV (40W): 64 hours
  WIFI (4W): 640 hours
  Light (10W): 256 hours
  Phone: 8520 hours

  Package Contents

  1 x ES-2.56KWh Advanced BMS with Current Limiting Function



3 Years Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
