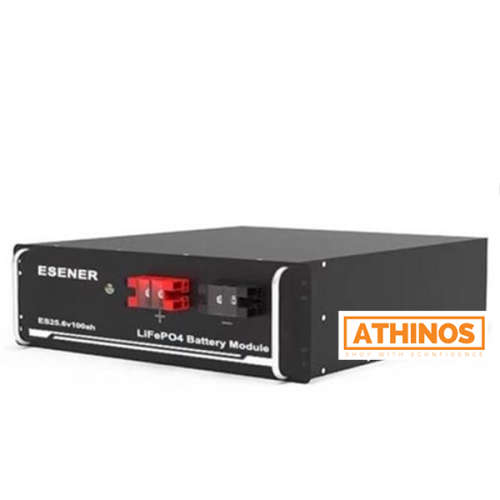

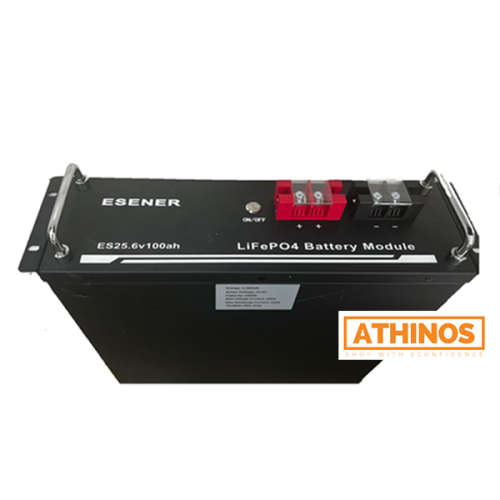

Esener 25.6V 100Ah Lifepo4 Single Battery Module- Total Usable Energy 2.56KWh , Normal Voltage: 25.6V, Rated Capacity (5HR): 100 Ah, Voltage Range 20.0V to 29.2V, Continuous Charging Current: 100A, Continuous Discharging Current: 100A, Low Self-Discharge, 19 inch Rack Mount Chassis, Heavy-Duty Side Handles For Easy Handling And Mounting , Work Perfectly Hybrid Inverters Up To 3.5KVA 24V, Colour Black, Retail Box , 1 year Limited Warranty
Product Overview
The Esener 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard 19-Inch Rack Mount Embedded designed module for easy installation and maintenance.
Features
Esener 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
Excellent High-Temperature Performance.
1c High-Performance Lithium Battery.
High Energy Density And Conversion Efficiency.
Low Self-Discharge.
19 Inch Rack Mount Chassis
Heavy-Duty Side Handles For Easy Handling And Mounting To The Wall
Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
Long Lifespan Up To 10 Years
Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
Normal Voltage 25.6V
Rated Capacity: 100Ah
Total Usable Energy 2.56KWh
Voltage Range 20.0V to 29.2V
Charge Current 100A
Discharge Current 100A
Specifications
Stock Code SOLES25LB100A
Description Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Rated Capacity (5HR): 100Ah.
Voltage: 25.6V.
Total Usable Energy 2.56KWh
Discharge Cut-off Voltage: 20.0V.
Equalised Charge Voltage: 29.2V.
Maximum Continuous Charging Current: 100A.
Maximum Continuous Discharging Current: 100A.
C. Rating: 1.0C.
Display: None.
Parallel/Series: Parallel and series connection up to 2S2P.
Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
Cells: New Li-Ion Prismatic Cells.
Design Life: -/+ 10 Years.
Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD.
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
Dimensions (WxDxH): 484mm x 420mm x 133mm.
Weight: Approx. 26kg.
What's in the box
1 x Esener 25.6V 100Ah Lifepo4 Single Battery Module
