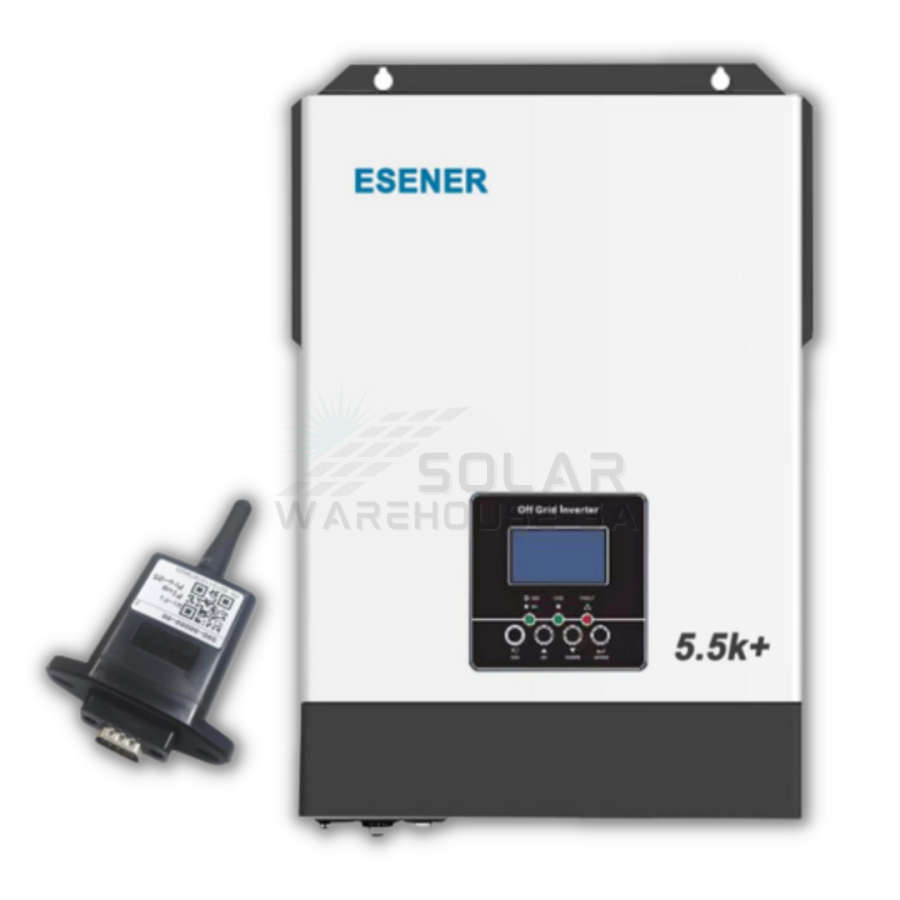

The latest Solarix Esener Branded 5.5KW 100A 48VDC Pure Sine Wave Hybrid Solar Inverter is designed to provide a reliable backup power solution for homes and small business office environment installations.
Equipped with a High Voltage 100A MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. The pure sine wave output enables easy start-ups for motor-type loads such as refrigerators, motors, and pumps. compressors and laser printers as well as electronic loads like TVs, Computers, power tools and battery chargers.
Parallel Connection With Up To 12 Units, Supports Single And 3 Phase, Wifi/GPRS remote monitoring, RS485 communication for BMS, Design To Provide Reliable Power.
Features
5.5KVA Pure Sine Wave 48VDC Hybrid Inverter Rated Power: 5500W(5.5kW)
High Voltage Built-In 100A MPPT Solar Charge Controller
Wifi/GPRS remote monitoring
Voltage: 230V AC and Battery Voltage: 48VDC
Maximum AC Output Current 60A
PV Max Input Current 18A
Overload And Short Circuit Protection
Output Power Factor 1.0
User-adjustable charge current and voltage
Wide PV input range (120Vdc -450V DC)
PV normal operating voltage 280-360VDC
PV Max power 5500W
Specifications
Stock Code SOL5500W48VP
Description Solarix Esener 5KVA 48VDC 100A Hybrid Parallel Inverter
Product Type Parallel Inverter Single or 3 Phase Pure Sine Wave
Rated power 5.5KW (5500W)
MPPT ranges 120V-450VDC
Voltage: 230V AC and Battery Voltage: 48VDC
Floating Charge Voltage 54VDC
Overcharge Current 63VDC
Parallel Operation Up To 12 Units
Can Provide The Power To The Load Without Battery
Support Multiple Output Priority: UTL,SOL,SBU,SUB
Crest factor 3: 1
With RS485 / RS 232 Communication
Wifi/GPRS Remote Monitoring
Can Work With Or Without Battery
Dimension 480x290x113mm
Net Weight 10Kg
- 1-Year Warranty
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
