ESENER Lithium Ion Battery 25.6V 100AH 2.56KWH
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

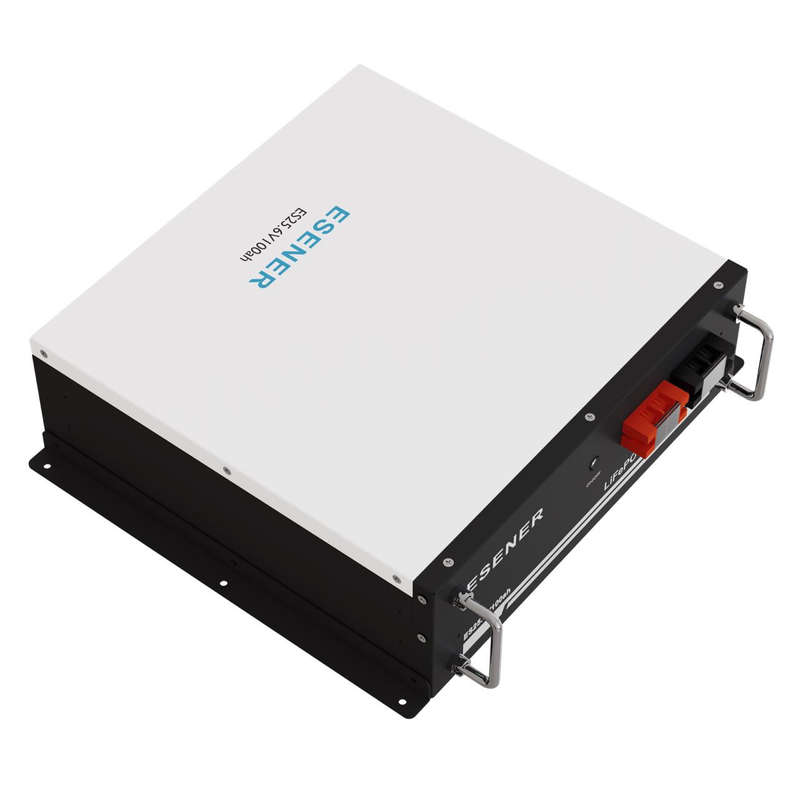

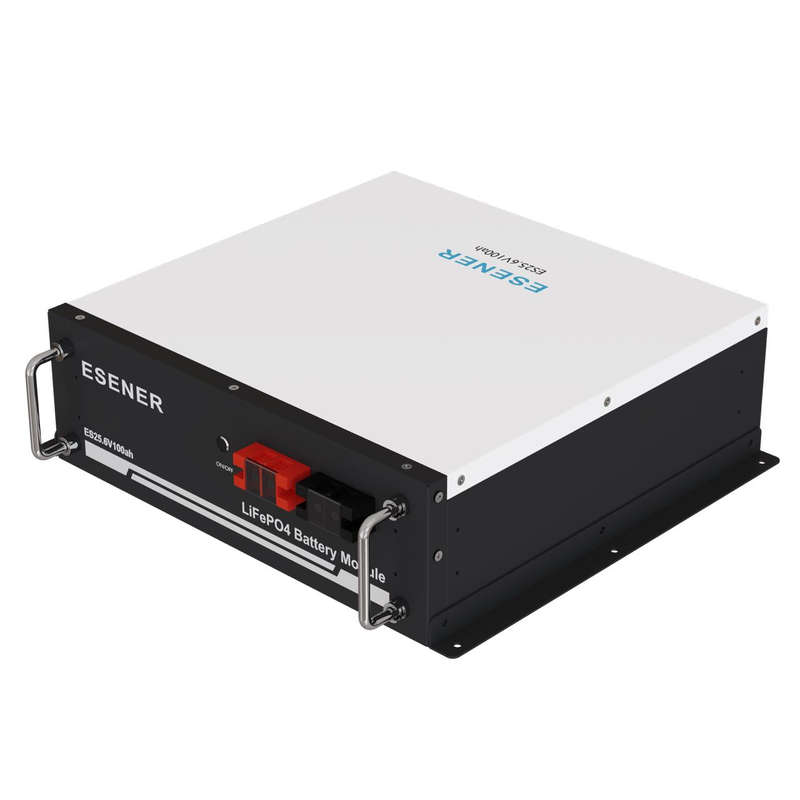

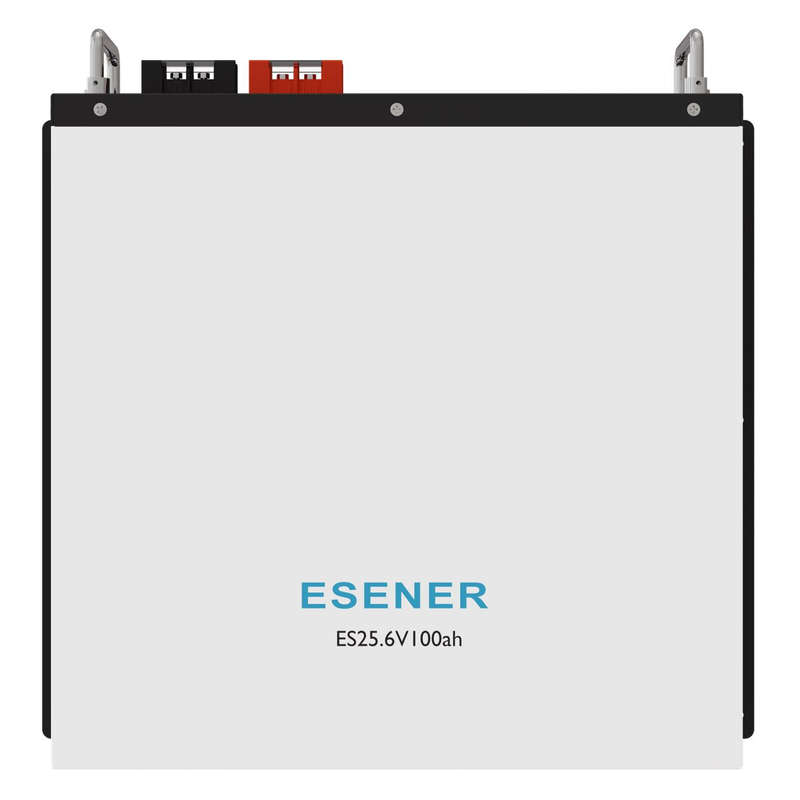

ESENER Lithium Ion Battery 25.6V 100AH 2.56KWH
Lithium ion batteries are especially well-suited for inverters because they have a high voltage and long life. They also have low self-discharge rates, meaning they can be reused many times. This makes Lithium ion batteries an ideal choice for inverters because their energy storage capacity can be increased.
ESENER Lithium Ion Battery Specifications:
- Rated Capacity (5HR): 100 Ah.
- Voltage: 25.6V.
- Discharge Cutoff Voltage: 20.0V.
- Equalized Charge Voltage: 29.2V.
- Max. Continuous Charging Current: 100A.
- Max. Continuous Discharging Current: 100A.
- C Rating: 1.0C.
- Display: NO.
- Parallel/Series: Parallel and series connection up to "2s2p".
- Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
- Cells: Li-ion Prismatic cells.
- Design Life: +/- 10Years.
- Cycle Life @ 1C: +/- 2200 Cycles @ 100% DOD, above 4000 cycles @ 80% DOD.
- Certification: UN38.3,IEC,MSDS.
- Outer Package Material: Black sheet metal steel case.
- Operating Temperature: Charging: 0 to +50C, Discharging: -10 to +50C,Storage: -10 to +50C.
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
- Includes Bracket
Size:
48.4 x 42 x 13.3 cm
26kg
3 Years Service Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
