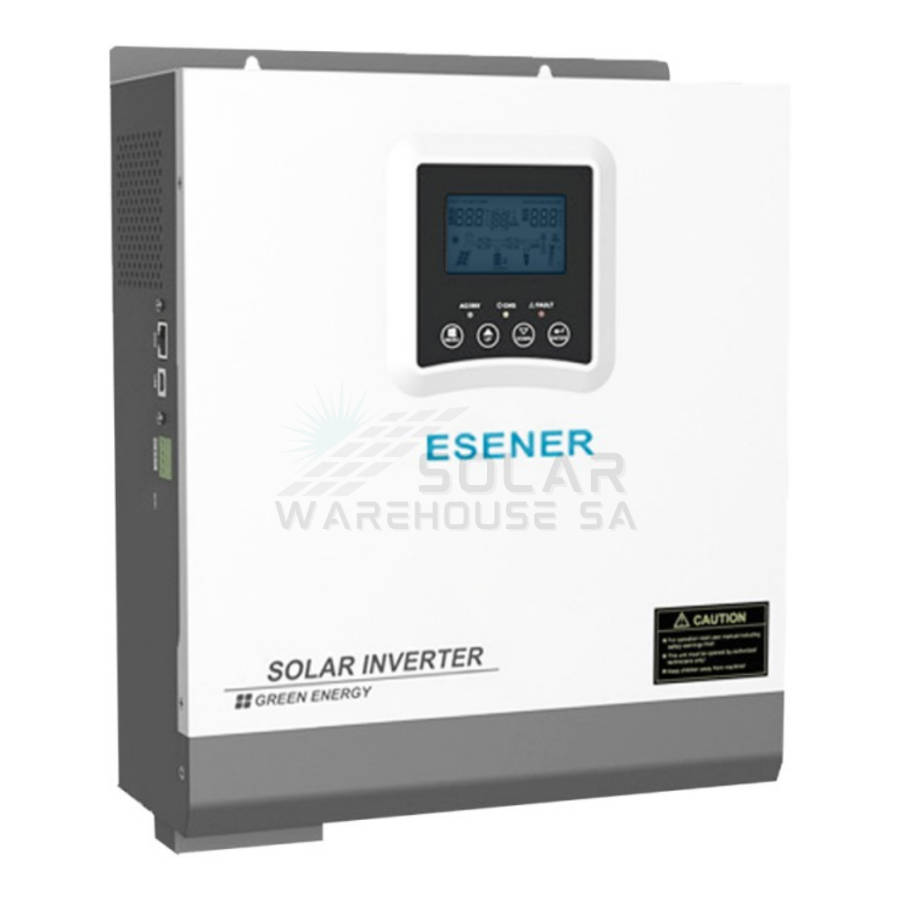

ESENER Pure Sine Wave Hybrid Inverter 24V 3kw MPPT 60A Maximum 80A 145VDC
This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A solar charger, and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Rated power: 1-3KW
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Bult in MPPT 60A solar charge controller

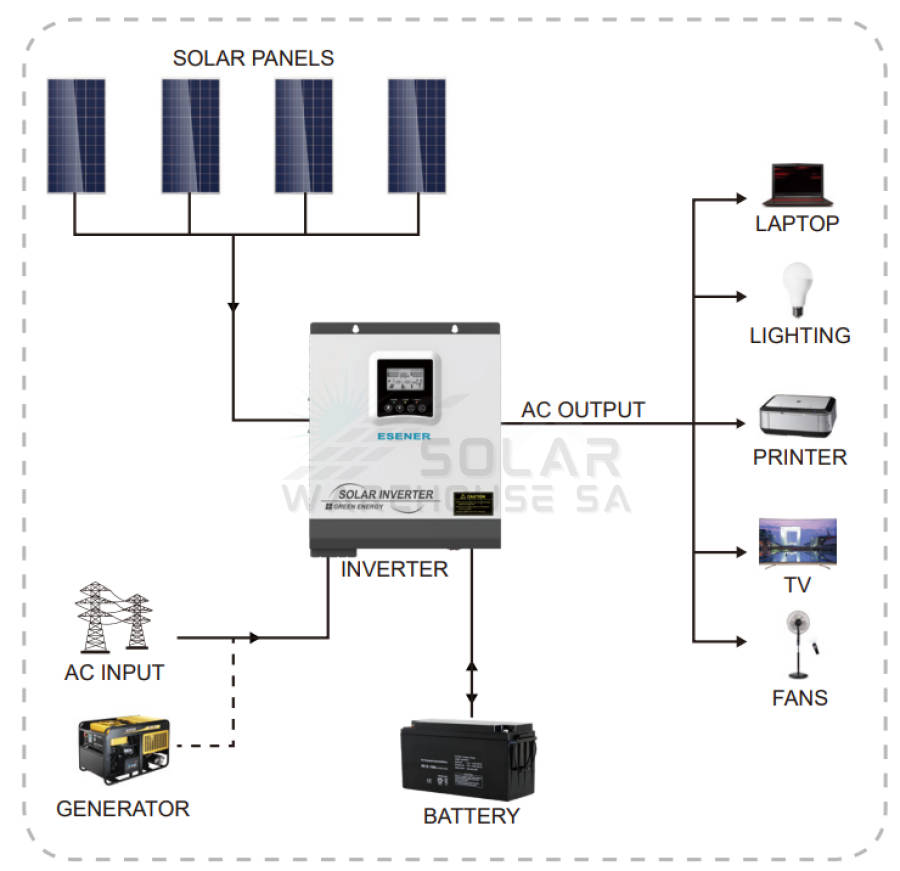

Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit, and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring (optional)
Compatible with generator

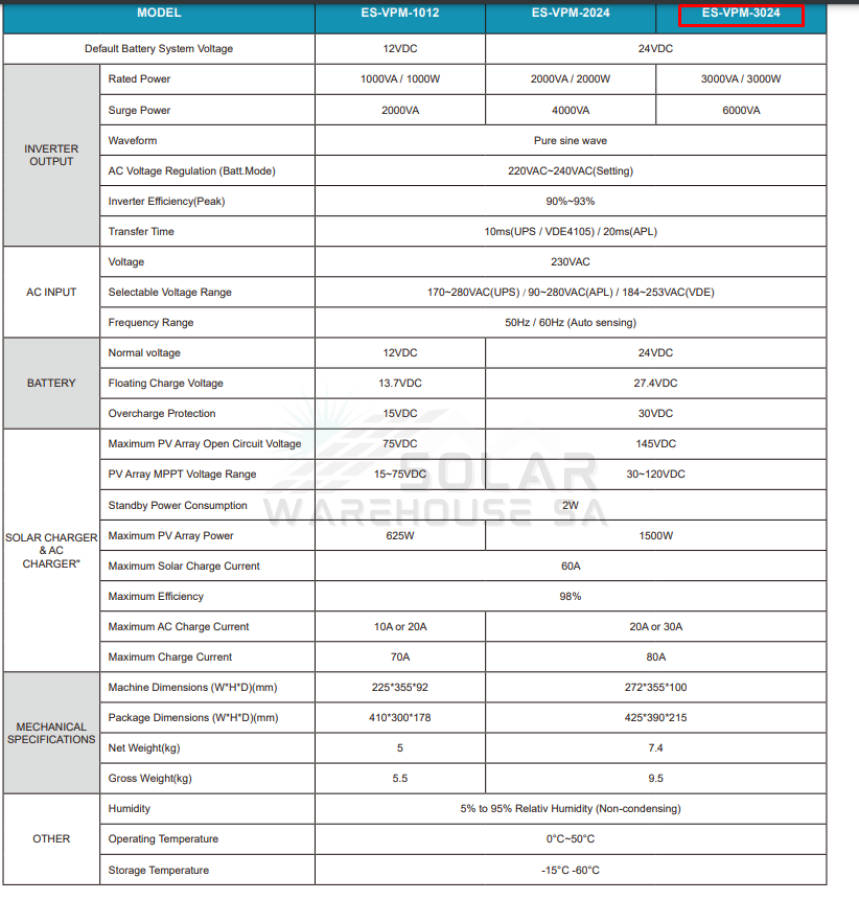

Specifications
Model: ES-VPM-3024
Inverter Output
Default Battery System Voltage: 24VDC
Rated Power: 3000VA / 3000W
Surge Power: 6000VA
Waveform: Pure Sine Wave
AC Voltage Regulation (Batt. Mode): 220VAC~240VAC(Setting)
Inverter Efficiency(Peak): 90%~93%
Transfer Time: 10ms(UPS / VDE4105) / 20ms(APL)
AC Input
Voltage: 230VAC
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE)
Frequency Range: 50Hz / 60Hz (Auto sensing)
Battery
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
Standby Power Consumption: 2W
Maximum PV Array Power: 1500W
Maximum Solar Charge Current: 60A
Maximum Efficiency: 98%
Maximum AC Charge Current: 20A or 30A
Maximum Charge Current: 80A
Mechanical Specifications
Machine Dimensions (W*H*D)(mm): 272*355*100
Package Dimensions (W*H*D)(mm): 425*390*215
Net Weight(kg): 7.4
Gross Weight(kg): 9.5
Other
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 0°C~50°C
Storage Temperature: -15°C -60°C
Size:
41cm x 40cm x 21xm
(WIFI DONGLE NOT INCLUDED)
- 1-Year Warranty
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labor. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
